ACV KAMERA IVECO DAILY 2023>

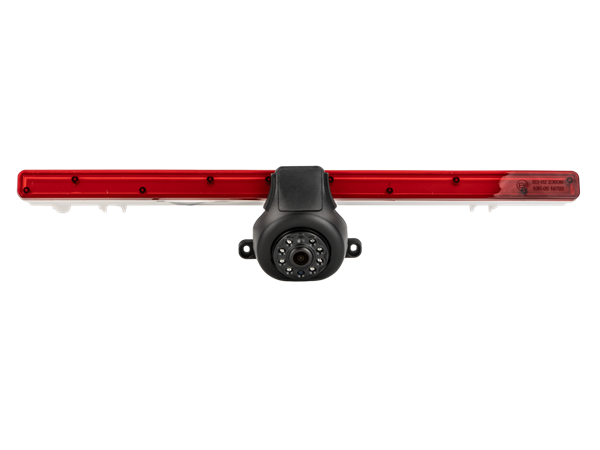

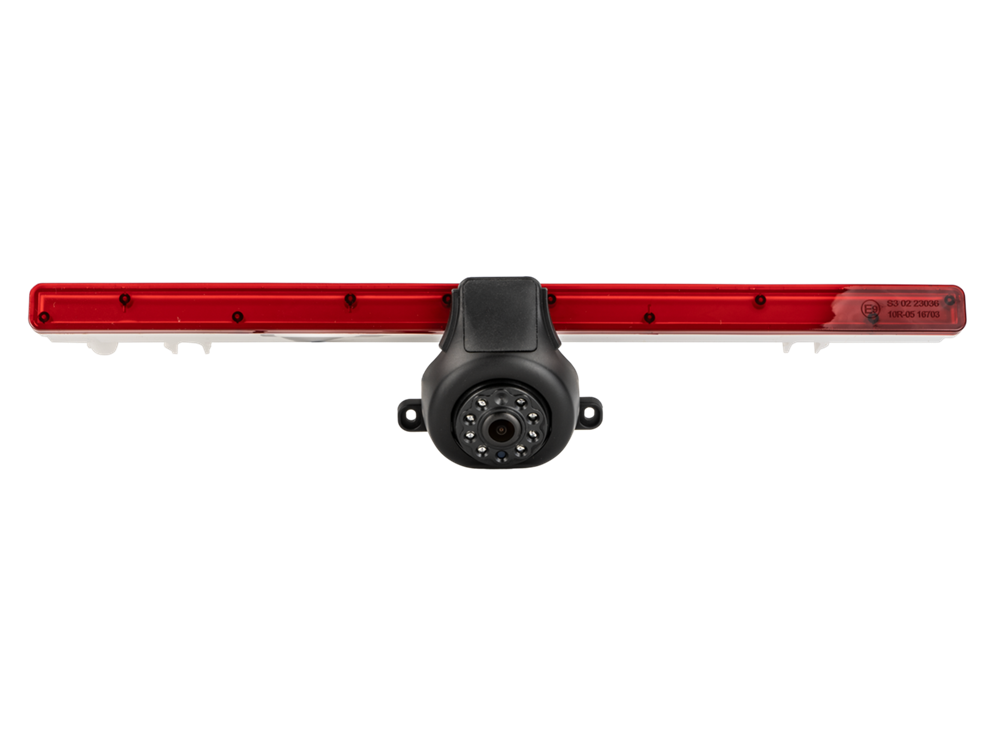

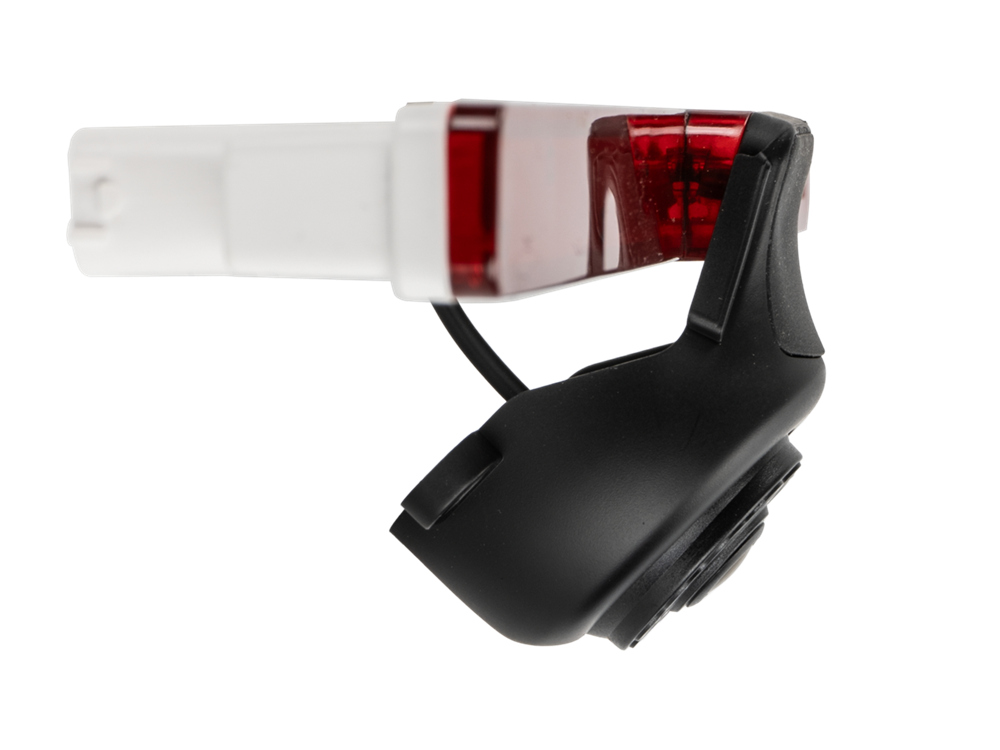

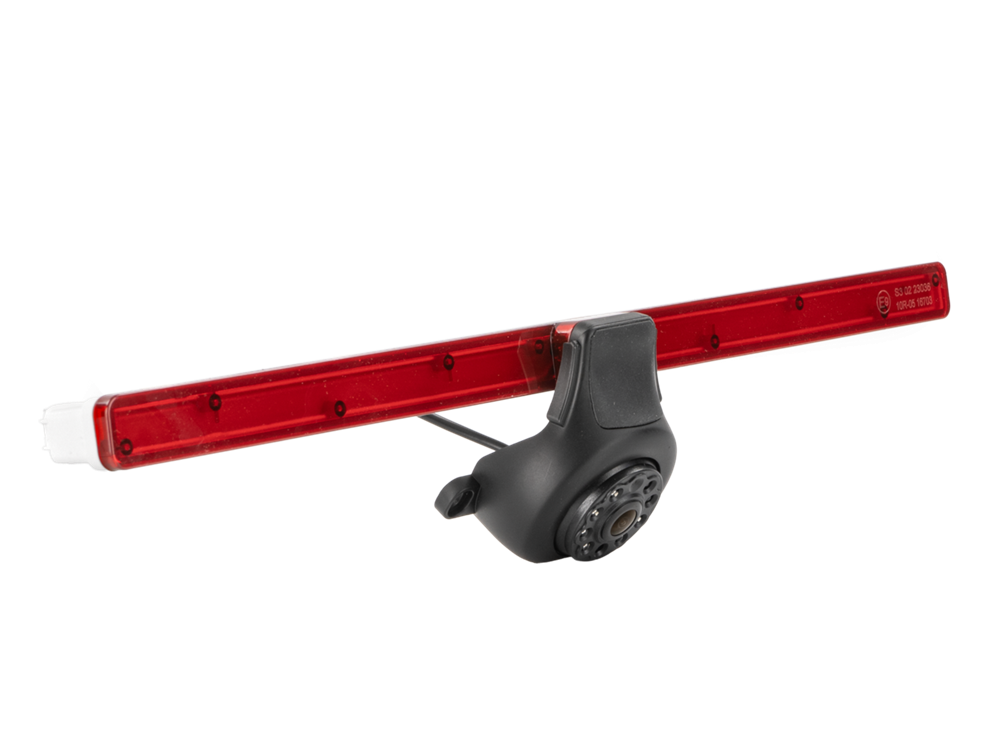

Rear view camera Iveco

Iveco Daily 2023 - 2025

to replace the OEM 3´rd brake light
with guiding lines / night view

Note:

before installation > check the viewing angle and camera alignment at the installation site with a test monitor

camera operating voltage: +3V
camera power supply: +12V / +24V

connection without voltage converter +3V in scope of delivery damages the camera

connection:
red: +12V switched load-stable fused
black: car body direct groud/GND

RCA(m) yellow: video

jumper:
white: guiding lines activate/deactivate

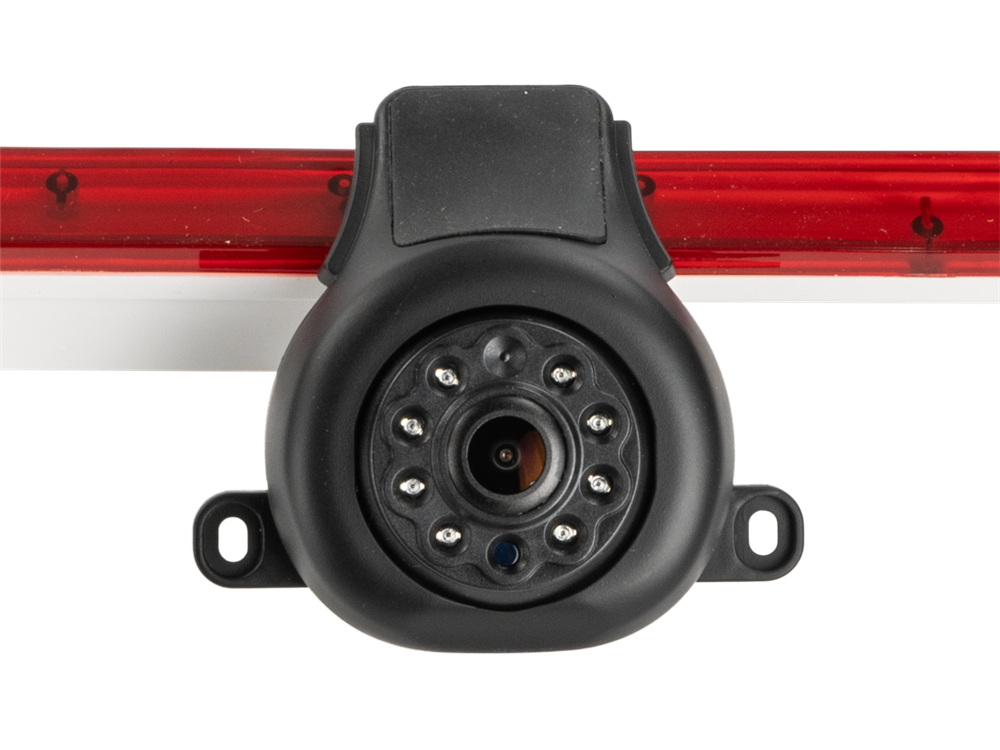

Product characteristic camera:

Design: plastic
Color: black / red
Extras: guiding lines via jumper
Image sensor: 1/3" CMOS
TV system: NTSC
Effective pixels: 976 x 592
Lens: 12,6mm
Min.Lux: 0 Lux with active nightview
Nightview range: 35ft
Resolution: 600 TV lines
View angle: horizontal 115° vertical 75° +5°
IP Rating: IP67
Terminal: 4 Pin acv-system connector(m) Ø5,2 mm
Operating voltage: +12V DC
Power supply: +3V DC
Current consumption: 150mA during active night vision function
Operating temperature: -20°C - 70°C
Storage temperature: -40°C - 80°C
Measurements: OEM 3´rd brakelight

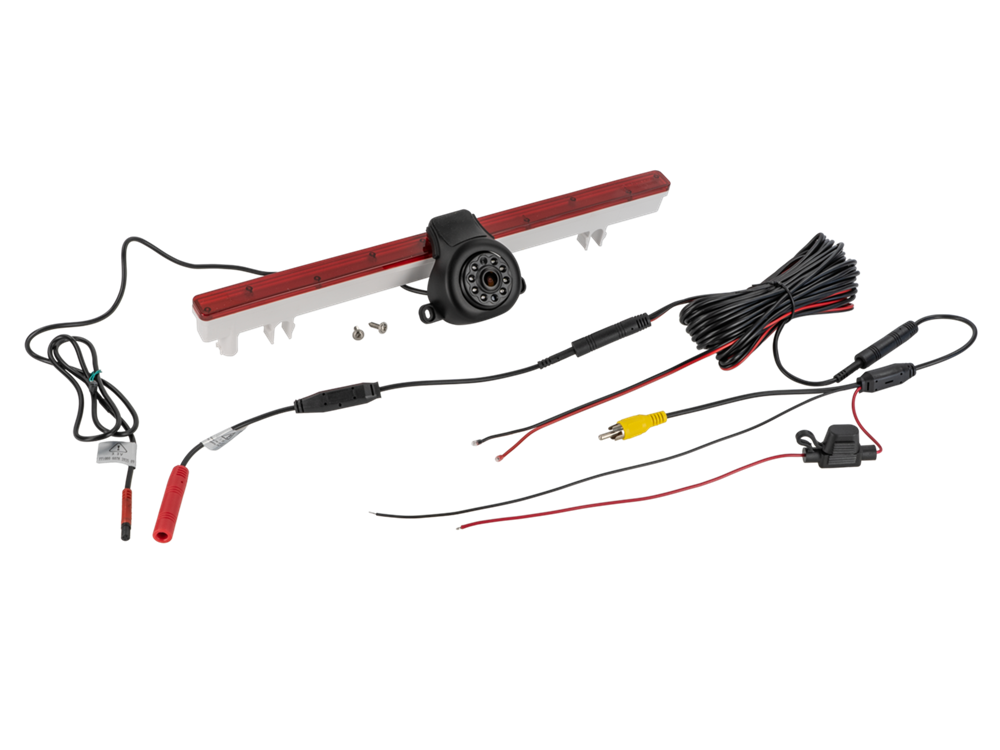

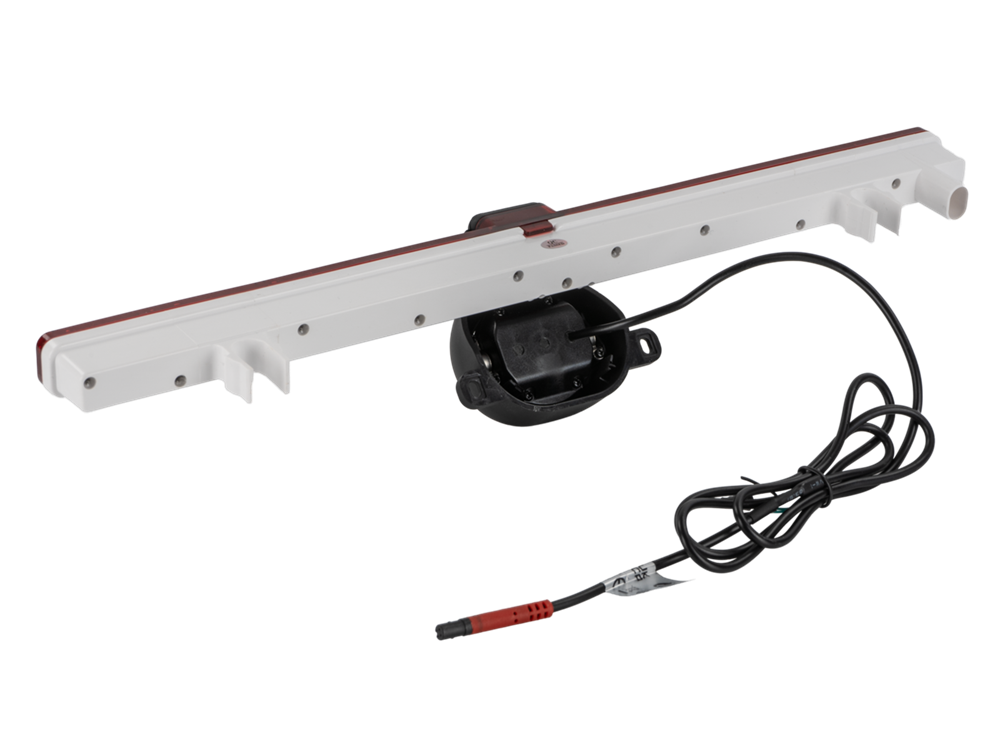

Pigtail at the camera 3,3m +/-:
4 Pin acv-system connector(m) Ø5,2mm
1 jumper

Voltage converter +3V:
4 Pin acv-system connector(f) Ø10mm / 4 Pin acv-system connector(m) Ø5,2mm

Extension cable 10m +/-:
4 Pin acv-system connector(f) Ø10mm / 4 Pin acv-system connector(m) Ø5,2mm
power wire red 3m +/- inlay cable: connection to camera / connection reverse light to monitor
ground/GND wire black 3m +/- inlay cable: connectrion car body direct/GND to camera / car body direct/GND to monitor

Connector cable 20cm +/-:
4 Pin acv-system connector(f) Ø10mm
red: power supply
black: GND
RCA(m) yellow: video
