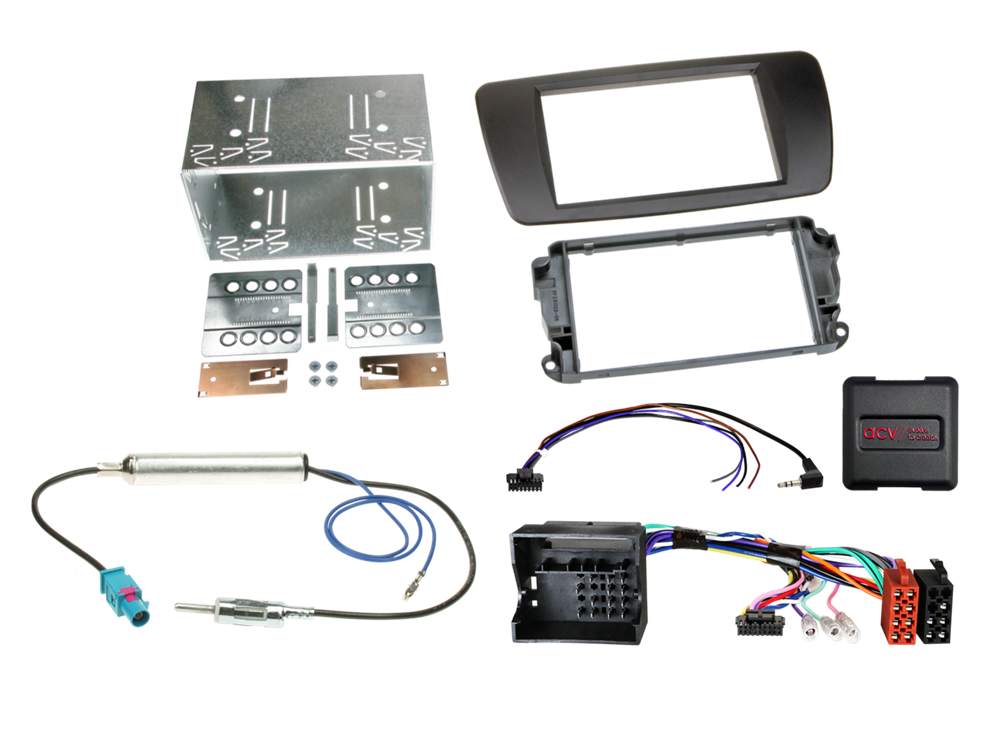

ACV KOMPLET MONT. KIT SEAT IBIZA 2008 > 2014 NIT SORT

Komplet monteringskit i nit sort

CAN Bus

connector: 40 Pin Quadlock VAG
connector: OEM SWC > 3,5mm Jack / loose wire
connector: OEM antenna Fakra(m) > DIN(m)

blue: +12V antenna remote

facia plate with 2-ISO installation kit

vehicles from 03/2012 - 06/2015 with switch panel below the HU:

vehicles with tyre pressure monitoring in the switch panel not compatible
vehicles with PDC switch in the switch panel not compatible

switch panel not applicable > Seat OEM spare part necessary:
centre console switch insert supplemented with omitted functions

switch strip not applicable > cable extension necessary:
Harness Seat Ibiza 03/2012-06/2015 Switch Panel > item: zpb1328-08-1

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

Seat Ibiza (6J) 06/2008 - 02/2012
Seat Ibiza (6J) 03/2012 - 06/2015

Colour: nit black (AN1)

Mounting cutout HU display: 172mm x 98,5mm

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal

load capacity outputs: 250 mA max.

current requirement more than 250 mA:
1 relay coil resistance 75 Ohm min.
2 relays coil resistance 150 Ohm min.

SWC
