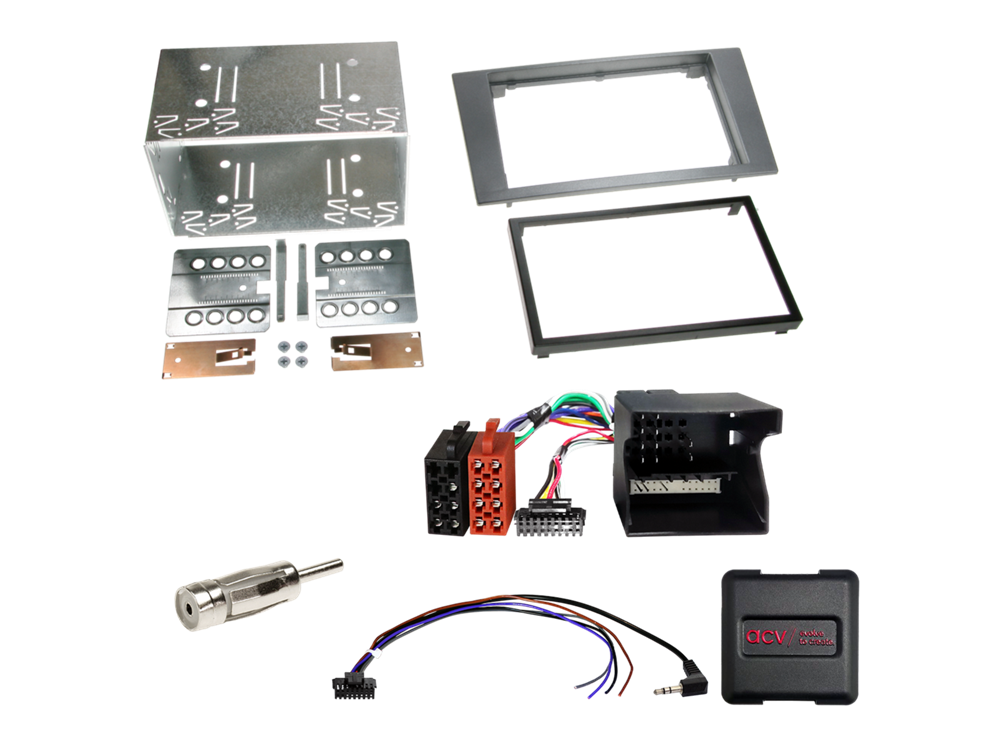

ACV KOMPLET MONT. KIT MONDEO 2003 > 2007 ANTRAZIT

analog

connector: 40 Pin Quadlock Ford
connector: OEM SWC > 3,5mm Jack / loose wire
connector: OEM antenna ISO(m) > DIN(m)

facia plate with 2-ISO installation kit

vehicles with rectangular Visteon OEM HU

vehicles with Sony OEM HU:
adjustment work in the radio shaft at the top with workshop tools necessary

vehicles analog

power connector A:
Pin 16 +12V ignition clamp 15
Pin 14 illumination clamp 58
MQS connector B:
Pin 6 SWC analog
Pin 8 GND SWC analog
Pin 11 +12V reverse gear signal (if assigned)
Pin 12 speed pulse signal (if assigned)

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

Ford Mondeo III (B4Y/B5Y/BWY) 06/2003 - 04/2005
Ford Mondeo III (B4Y/B5Y/BWY)05/2005 - 06/2007

Colour: anthracite

Mounting cutout HU display: 172mm x 98mm

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

SWC
