ANTENNE SPLITTER DAB/DAB+ TIL PHANTOM ANTENNER FAKRA TIL DIN/SMB

Splitter den originale antenne til både antenne og dab/dab+ antenne. Bruges til forstærkede antennesystemer

Fakra til Din han og smb hun

PRODUCT DESCRIPTION
Passive (no amplification) antenna signal splitter
AM/FM & DAB+ including phantom feed
PRODUCT INFORMATION
the incoming signal become splitted between AM/FM and DAB+.
wire RG174 at 50 ohm
Power supply phantom feed:
VIOLETT wire circle closed supplies 12V open 8,5V.
-------------------------
PLEASE NOTE

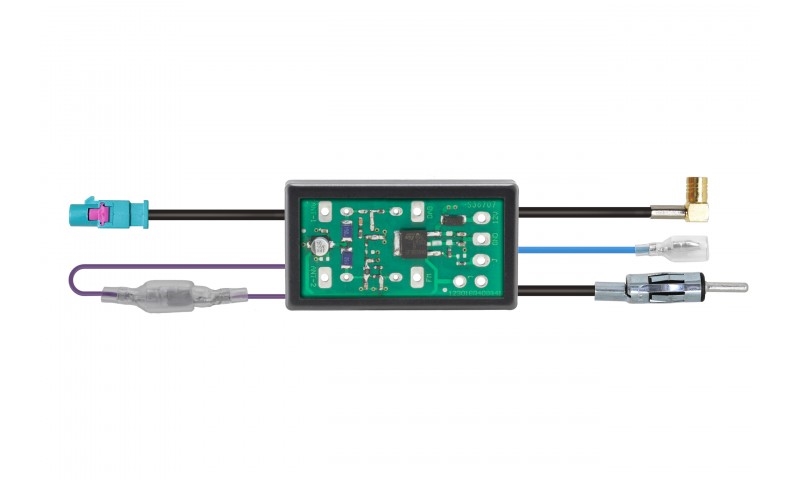

the picture shows the electronic PCBA, the product is delivered protected in a closed housing.
TECHNICAL DATA
works only with amplified antennas
