Varenr.: 40-AD-REMOTE
På lager hos os

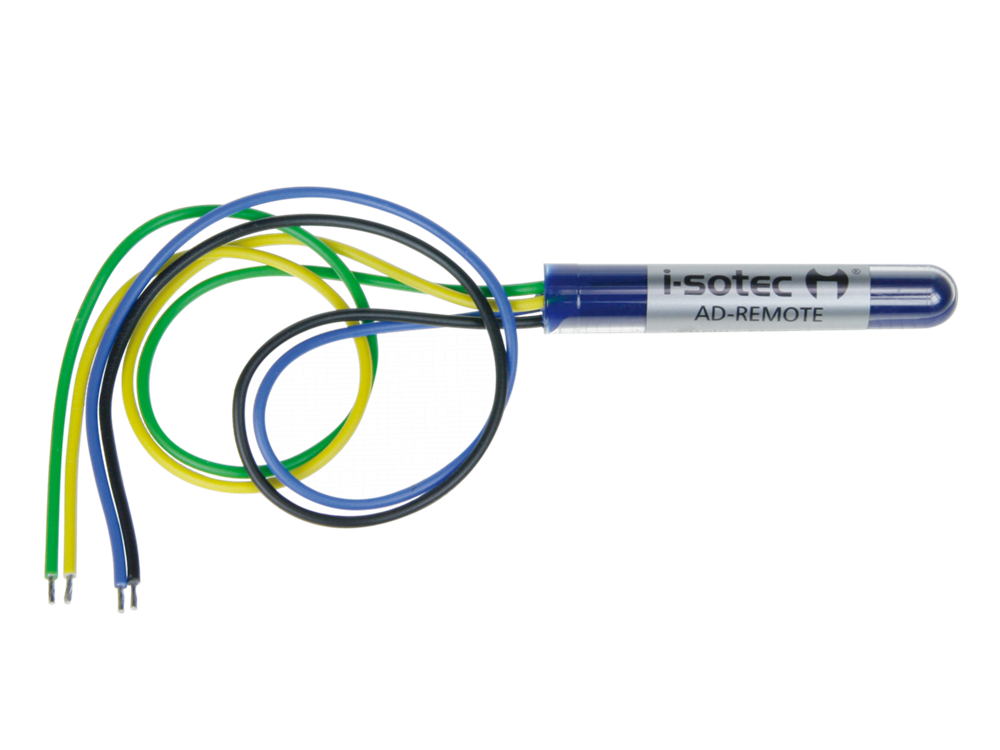

AUTOMATISK REMOTE UNIVERSAL
Relay close
Solid state relay:
noiseless
vibrations insensitive
low coupling capacities between in and output
no mechanical consumption
no disorder due to magnetic fields
no emit of magnetic fields
no error messages in OEM amplifiers or lighting systems
generates the remote signal over the speakersignal of the HU
Note:
connector: 12V power / ground / any +2V - +14,2V voltage input
yellow: clamp 30 (batteri +12V)
black: clamp 85 (Stel)
green: clamp 86 (indgang Fks. + højttaler eller baksignal)
blue: clamp 87 (udgang til tændende produkt)
Usecase:
Switching relay 12V
Remote relay 12V
usable as switching relay:
picking up rear light signal for camera installations
Amp-Remote from speaker BTL-voltage
Features:
operating voltage: 7V-12V DC
swiching voltage: 2V-14,4V
max power consumption: <10mA
max output: 1,5A
turn-on delay: 2 Sek.
turn-off delay: <0,1 Sek.
impedance: >100kOhm
