Varenr.: 43xvw01
På lager hos os
Download manual

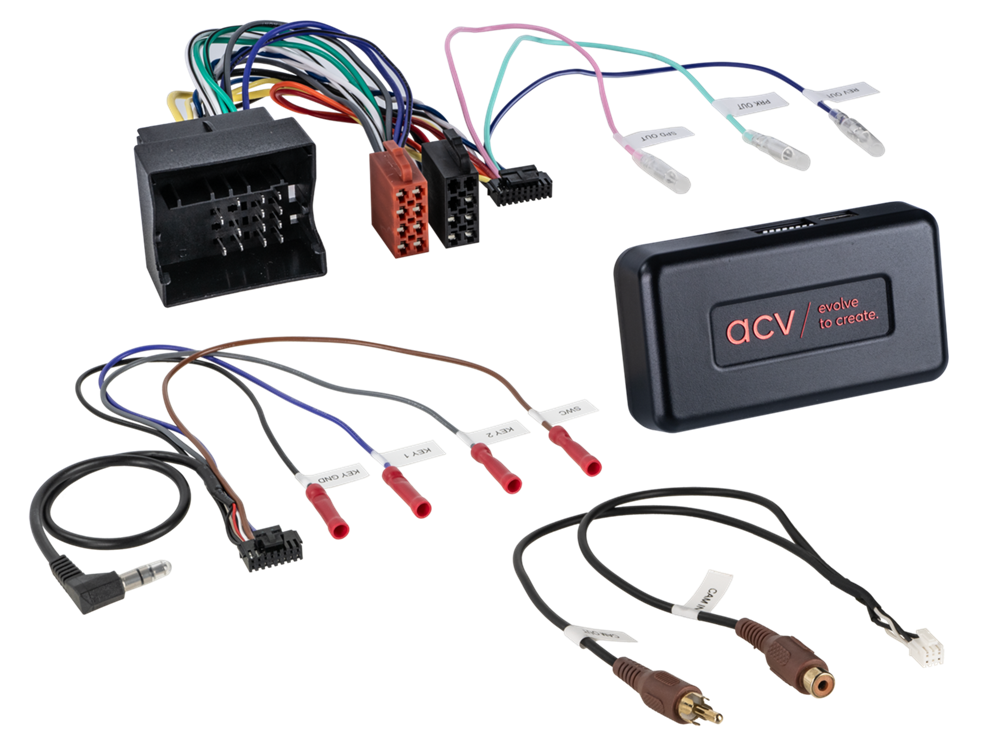

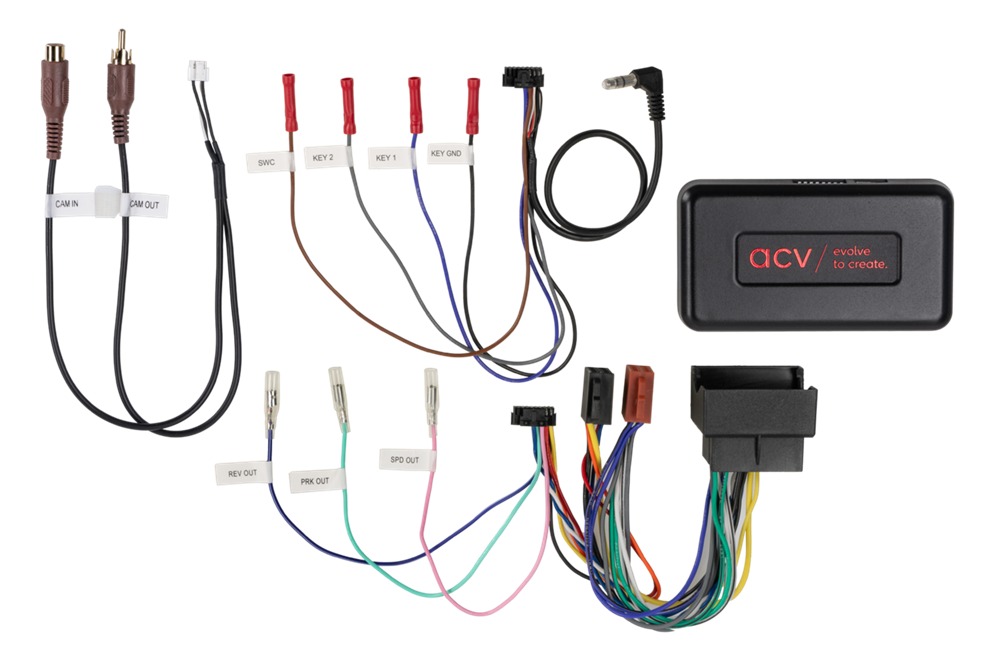

Info adapter / Ratbetjening til modeller hvor bilens informationer og ac er i original radio.
CAN Bus

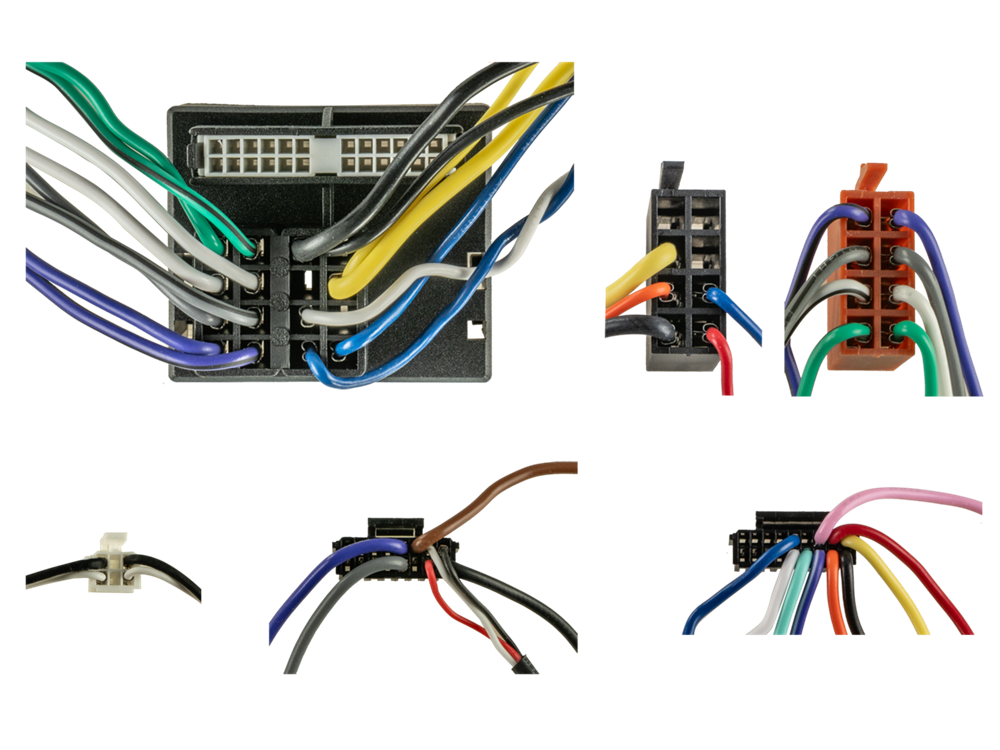

connector: 40 Pin Quadlock VW
connector: OEM SWC > 3,5mm Jack / loose wire
activate and configure the rear view camera input in the retrofit HU
connection i-dapter:
purple/white: +12V reverse gear signal
RCA(m) ochre: rear view camera input retrofit HU

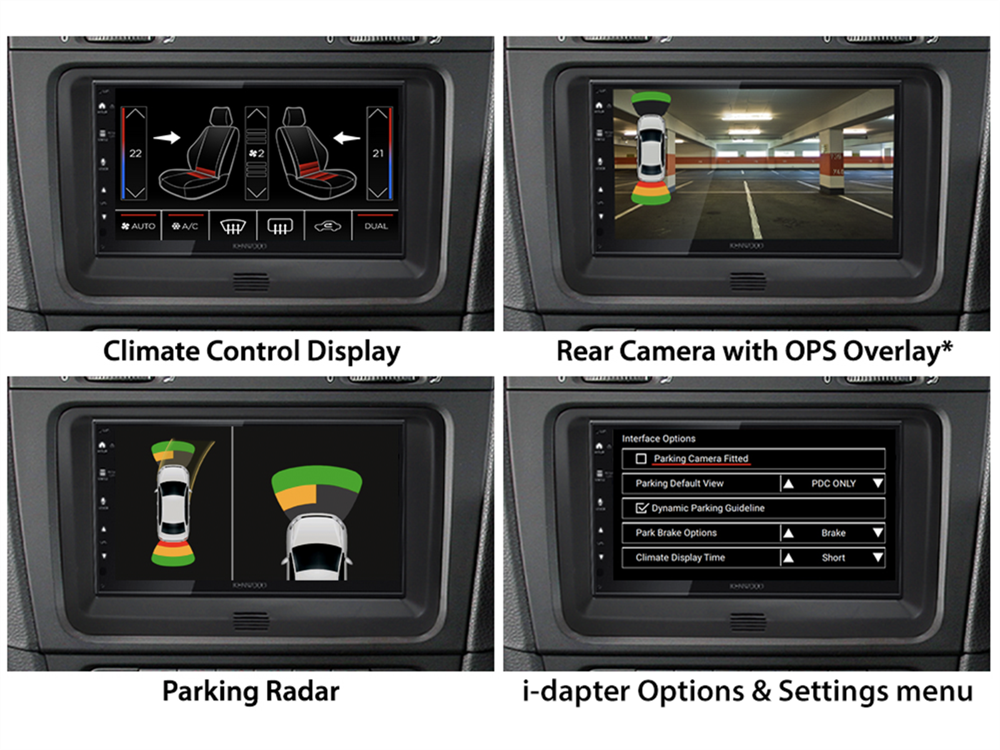

visualisation i-adapter settings > retrofit HU rear view camera input
visualisation OPS > retrofit HU rear view camera input
visualisation Klinatronik > retrofit HU rear view camera input
vehicles with SWC i-dapter settings:
press and hold track up SWC buttom
alternatively with item: 43x-remote
vehicles without SWC i-dapter settings required accessories:
i-dapter accessories remote control > interface settings: item: 43x-remote
vehicles with white OEM MFD instrument cluster
vehicles with / without OEM amplified system
vehicles with rear view camera:
Rear View Camera Interface Seat/Skoda/VW OEM HIGH: 771324-1032
Rear View Camera Interface Seat/Skoda/VW OEM LOW: 771324-1036
vehicles with parking assistance front PDC > front PDC is shown after ignition in display
exit the display > via vehicle PDC switch
+12V reverse gear signal is switched off from 3 km/h
camera image or i-dapter settings and visualisation not available:
connect additional GND signal to the RCA outer conductor of the camera and HU connection

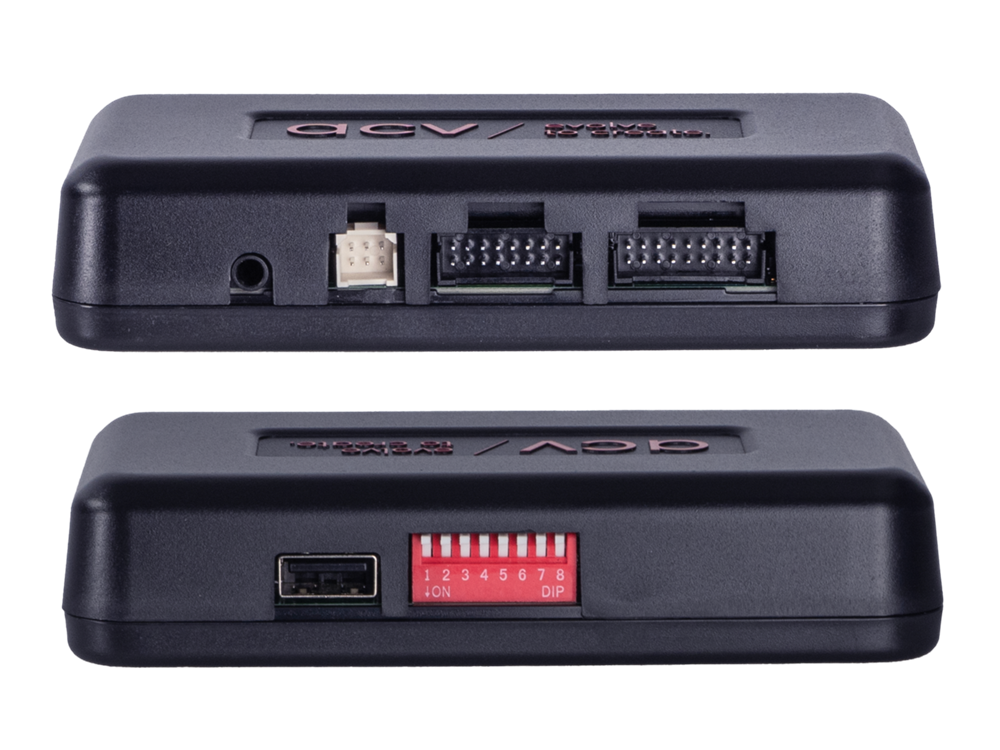

dip switch settings for the retrofit device manufacturer (look into the manual)
Vehicle application:
Skoda
Skoda Octavia (1Z) 01/2009 - 03/2013*
Skoda Rapid (NH) 10/2012 - 04/2015
Skoda Roomster (5J) 06/2010 - 02/2015
Skoda Superb (3T) 07/2008 - 05/2013
Skoda Yeti (5L) 08/2009 - 10/2013
VW
VW Caravelle (7H) 09/2009 - 05/2015**
VW CC (3C/35) 02/2012 - 08/2016
VW Eos (1F) 10/2010 - 04/2015
VW Golf VI (1K) 11/2008 - 12/2012
VW Golf VI (1KM) 11/2009 - 04/2013
VW Golf VI (1K) 06/2011 - 07/2016
VW Golf VI Plus (1KP) 03/2009 - 01/2014
VW Multivan (7H) 09/2009 - 05/2015**
VW Passat B7 (3C/362) 11/2010 - 10/2014
VW Polo V (6R) 06/2009 - 01/2014***
VW Scirocco III (13) 08/2008 - 04/2014
VW Sharan II (7N) 08/2010 - 04/2015
VW T5 Transporter (7H) 09/2009 - 05/2015**
VW Tiguan I (5N) 06/2011 - 04/2016
VW Touran (1T) 08/2010 - 04/2015
Following signals are provided:
Reimported vehicles or vehicles with different software may be incompatible in functions.
red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal
load capacity outputs: 250 mA max.
current requirement more than 250 mA:
1 relay coil resistance 75 Ohm min.
2 relays coil resistance 150 Ohm min.
SWC
visualisation climate control
visualisation OPS
OEM amplified system settings
*vehicles with Audience / Stream OEM HU
**vehicles with OEM amplified system > item Active system adapter VW T5/Touareg Quadlock MQS-housing: 13-1424-26
***vehicles with Fender OEM amplified system
