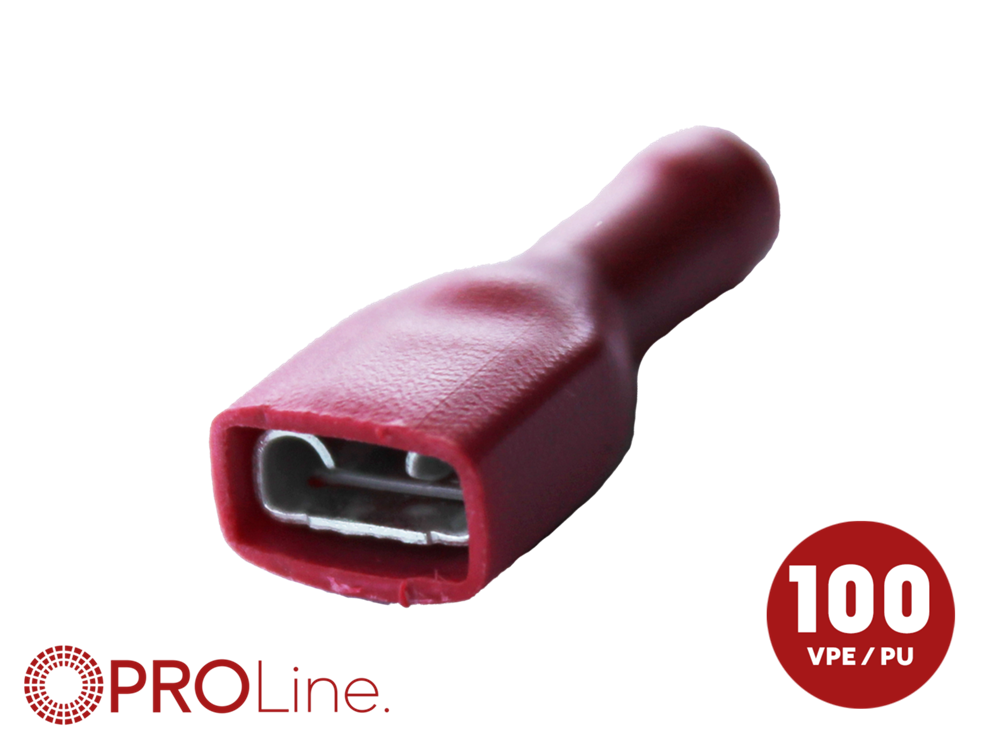

Varenr.: 346314-1-0-p
På lager hos vores leverandør
cable diameter: 0,5 mm² - 1,5 mm²
cable diameter: 22 - 16 AWG
Technical data:
contact: 6,3 mm x 0,8 mm
length: 22,1 mm
contact opening: 6,6 mm x 0,7 mm
diameter cable entry: 3,9 mm² max.
diameter strand: 1,7 max.
sleeve length: 10,5 mm
plug length: 7,2 mm
material: brass tin plated
insulation: vinyl PVC
operating temperature: -10 °C - 75 °C
electrical current: 300V max.
electrical rating: 10A max.
REACH and RoHS compliant
Content:
100 pieces
