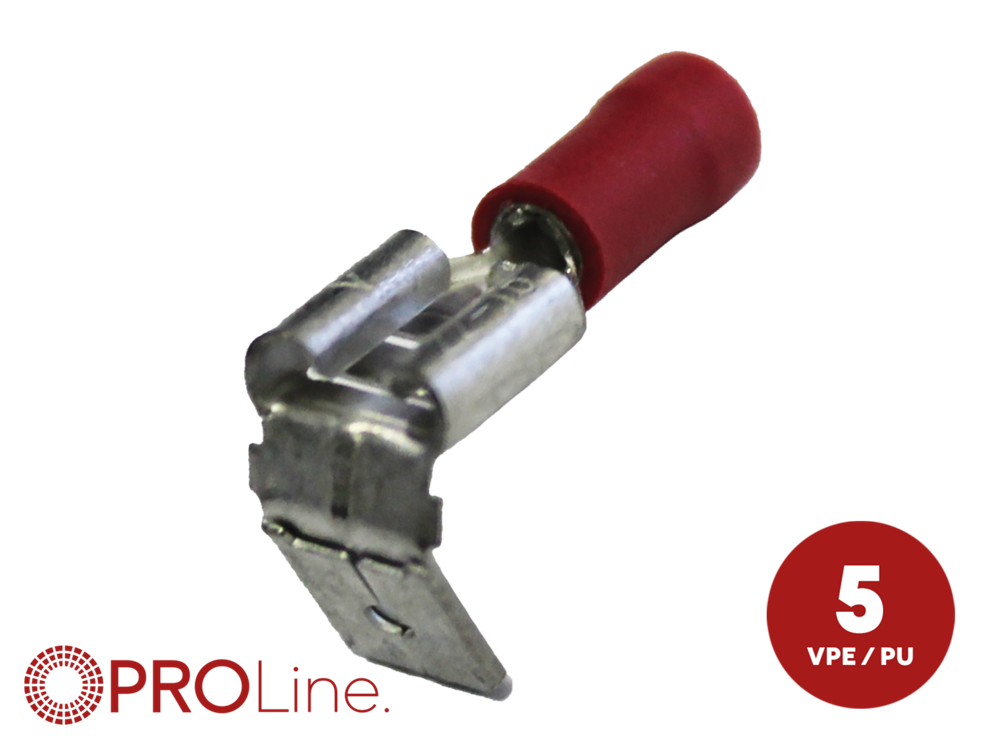

Varenr.: 346313-1-5-p
På lager hos vores leverandør
cable diameter: 1,5 mm² - 2,5 mm²
cable diameter: 22 - 16 AWG
Technical data:
contact(m/f): 6,3 mm x 0,8 mm
length: 22,5 mm
diameter cable entry: 3,8 mm² max.
diameter strand: 1,7 max.
sleeve length: 11,6 mm
plug length(m): 8,2 mm
plug width(m): 6,4 mm
plug length(f): 8,0 mm
plug width(f): 6,7 mm
material: brass tin plated
insulation: vinyl PVC
operating temperature: -10 °C - 75 °C
electrical current: 300V max.
electrical rating: 10A max.
REACH and RoHS compliant
Content:
5 pieces
