Varenr.: 771000-6740
På lager hos vores leverandør

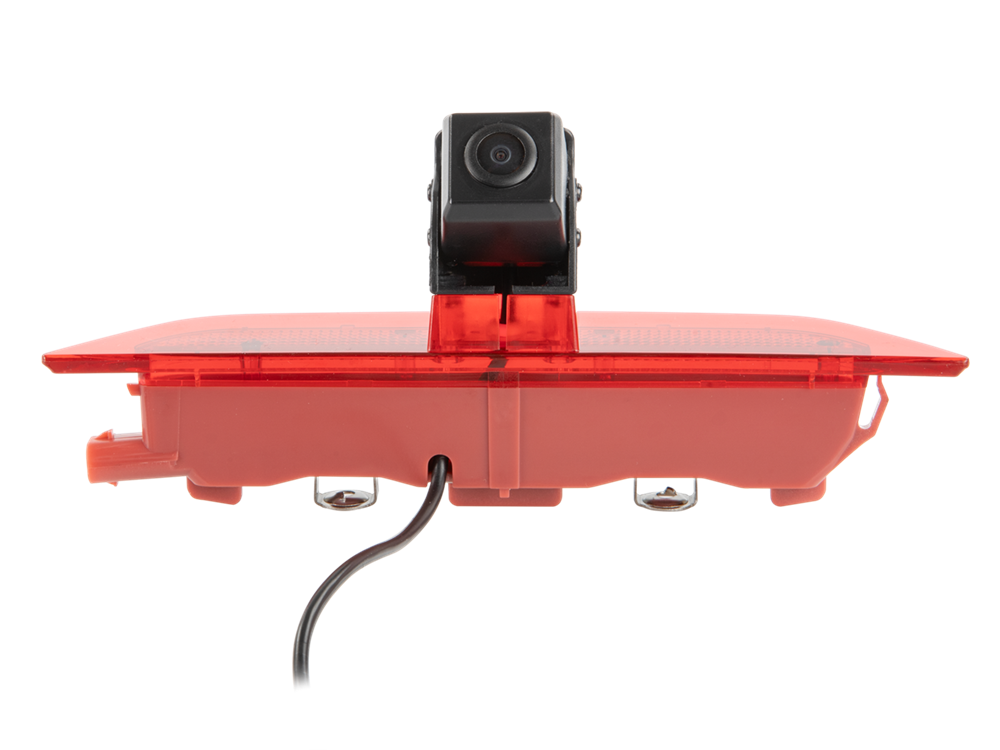

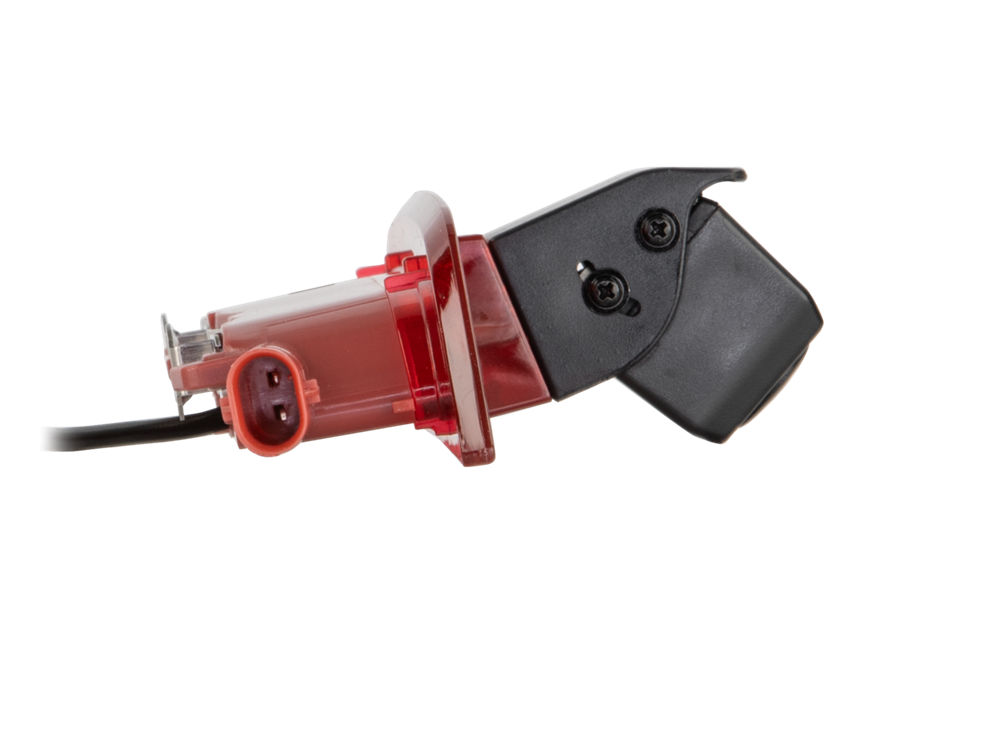

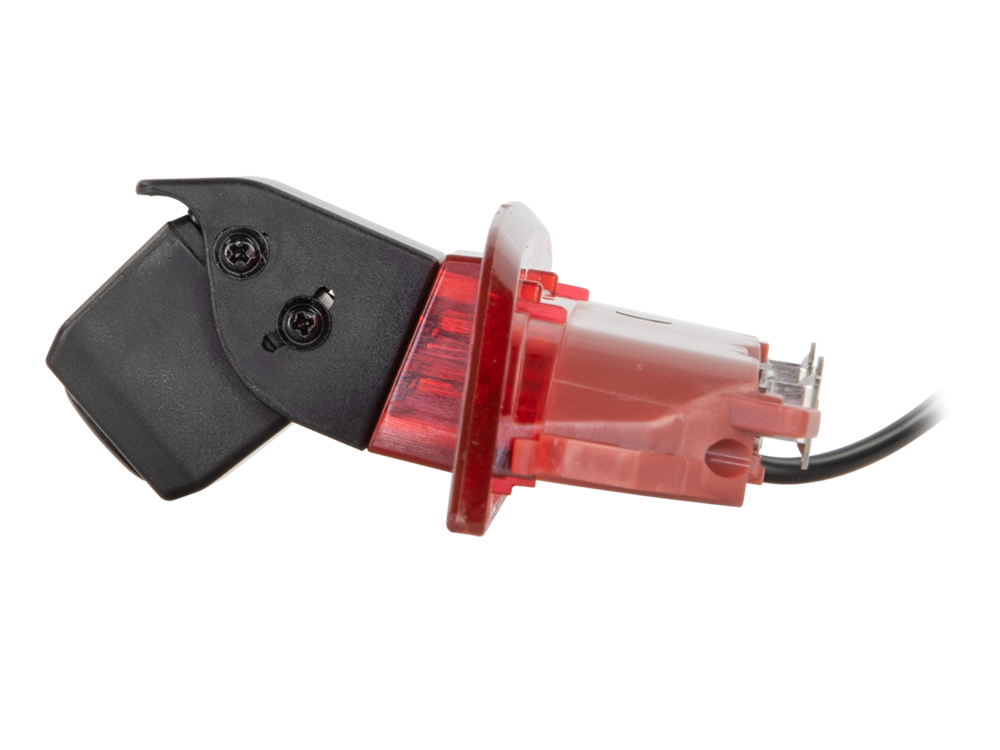

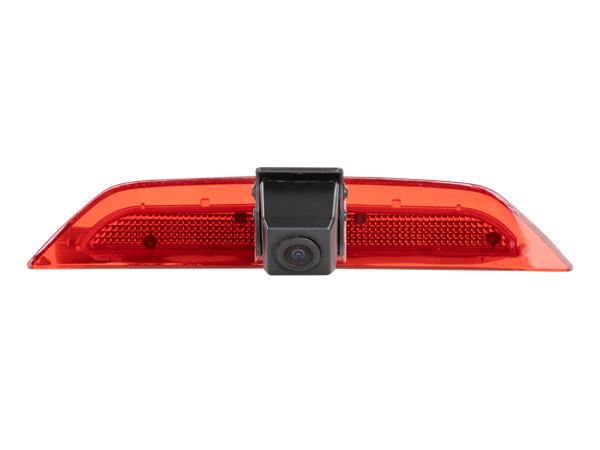

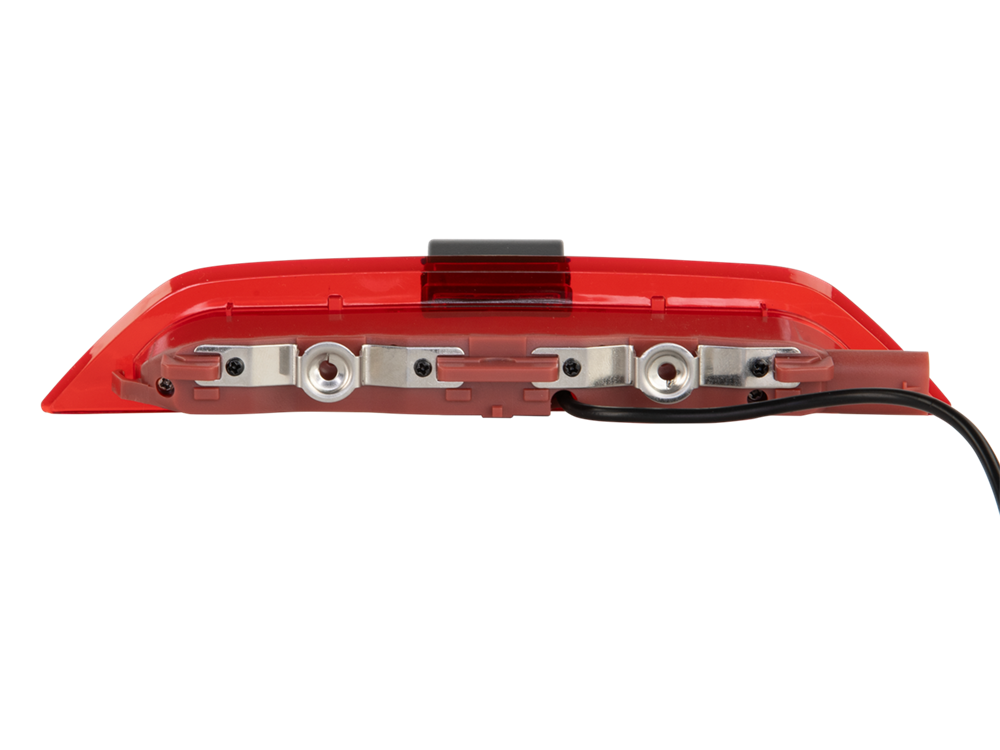

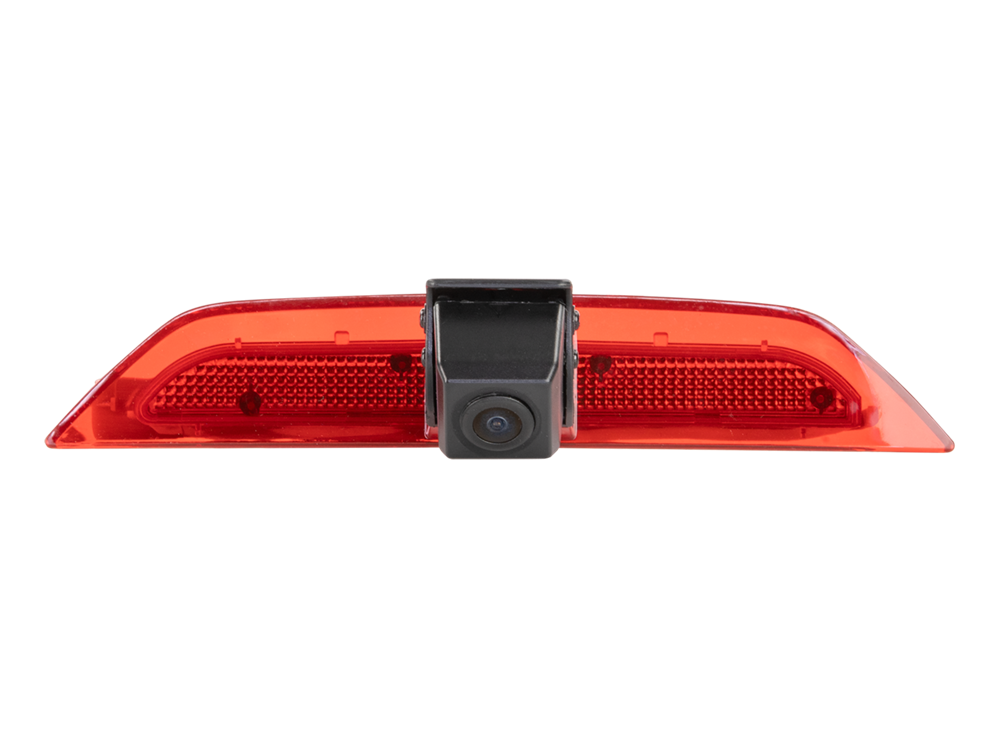

Rear view camera Ford / VW
Ford
Ford Tourneo Connect (SK) 05/2022 - 2025
VW
VW Caddy V (SK) 11/2020 - 2025
to replace the OEM 3rd brake light
with guiding lines / adjustable view angle
Note:
acv cameras are suitable for +12V continuous operation
before installation > check the viewing angle and camera alignment at the installation site with a test monitor
camera operating voltage: +3V
camera power supply: +12V / +24V
connection without voltage converter +3V in scope of delivery damages the camera
vehicles with single back door
connection:
red +12V switched load-stable fused
black ground car body direct
RCA(m) yellow: video
jumper:
green: guiding lines activate/deactivate
Product characteristic camera:
Design: plastic
Color: black / red
Extras: guiding lines via jumper and adjustable view angle
Image sensor: 1/3" CMOS
TV system: NTSC
Effective pixels: 976 x 592
Lens: 2,6mm
Resolution: 600 TV lines
Lens angle: diagonal 160° + 5°
View angle: horizontal 115° vertical 80° + 5°
IP Rating: IP68
Terminal: 4 Pin acv-system connector(m) Ø5,2 mm
Operating voltage: +3V DC
Power supply: +12V / +24V DC > with voltage converter
Current consumption: 100mA
Operating temperature: -20°C - 70°C
Storage temperature: -40°C - 80°C

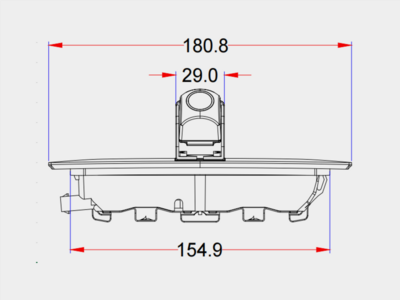

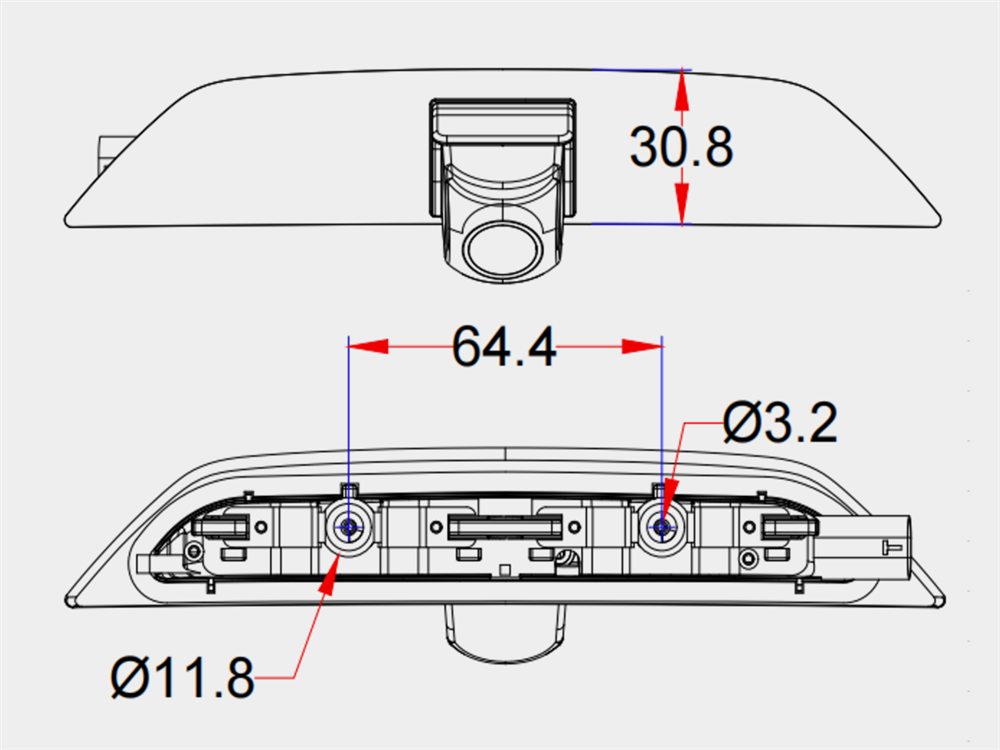

Measurements: OEM 3´rd brake light

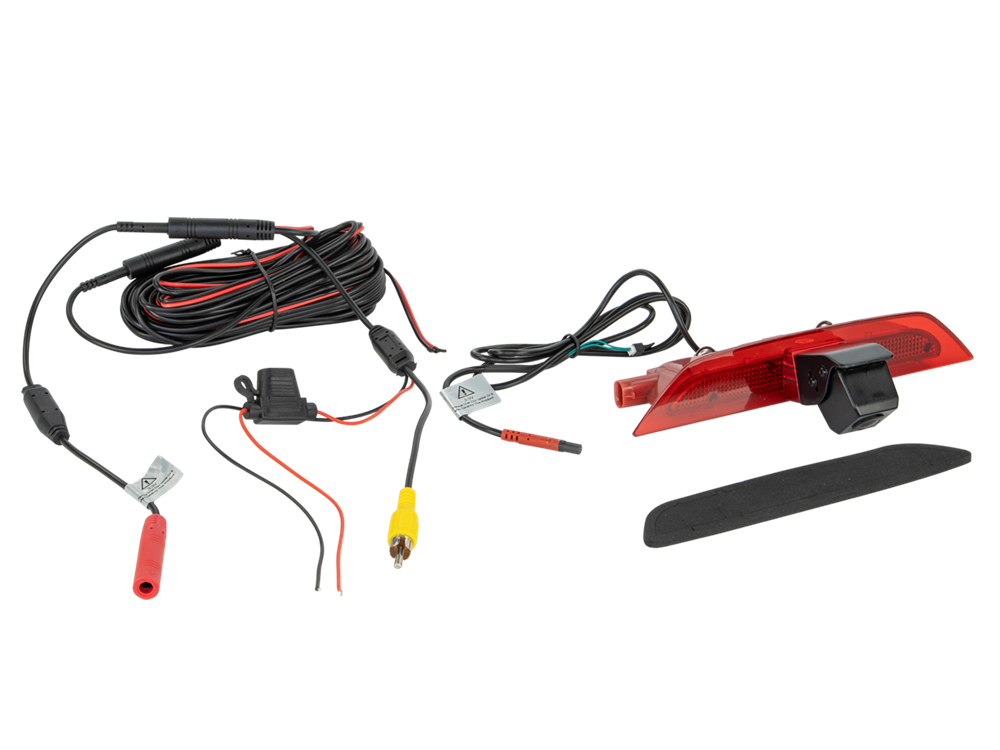

Pigtail at the camera 1m +/-:
4 Pin acv-system connector(m) Ø5,2mm
1 jumper
Voltage converter +3V:
4 Pin acv-system connector(f) Ø10mm / 4 Pin acv-system connector(m) Ø5,2mm
Extension cable 6,5m +/-:
4 Pin acv-system connector(f) Ø10mm / 4 Pin acv-system connector(m) Ø5,2mm
power wire red 3m +/- inlay cable: connection to camera / connection reverse light to monitor
ground/GND wire black 3m +/- inlay cable: connectrion car body direct/GND to camera / car body direct/GND to monitor
Connector cable 20cm +/-:
4 Pin acv-system connector(f) Ø10mm
red: power supply
black: GND
RCA(m) yellow: video
