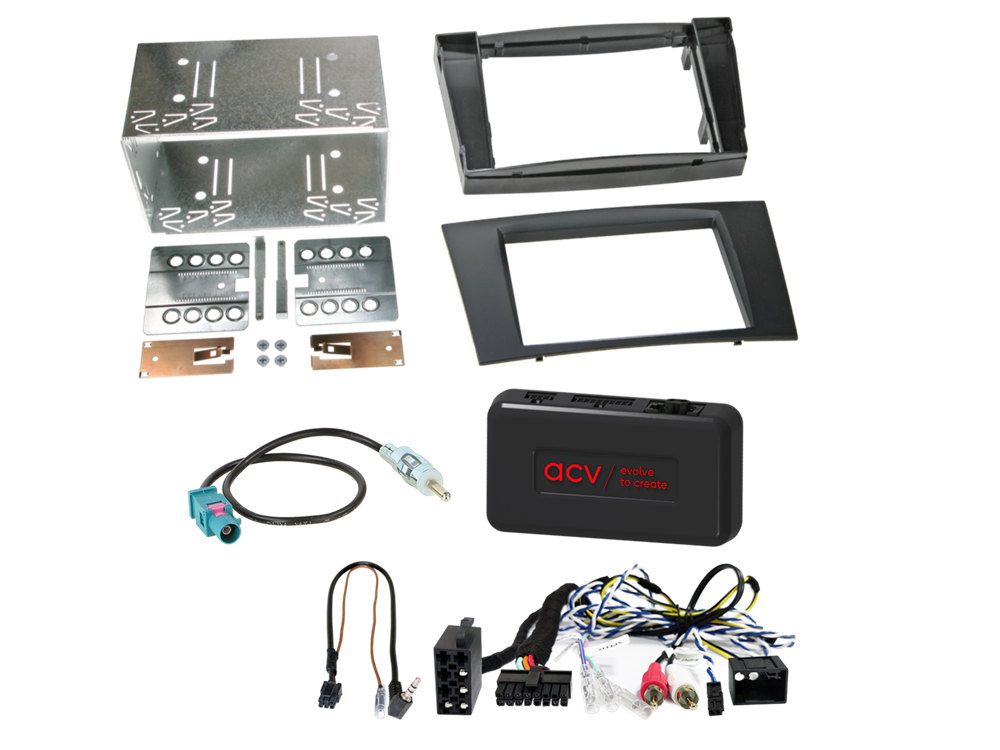

KOMPLET MONT. KIT MERCEDES W219.W212 2002 > 2010 MED HARMAN KARDON

Note:

CAN Bus

connector: 2 Pin Mercedes
connector. 2 Pin CAN Bus distributor
connector: OEM SWC > 3,5mm Jack / loose wire
connector: OEM antenna Fakra(m) > DIN(m)
connector: OEM amplified system MOST > RCA(m) red/white

additional required:
Antenna cable extension Fakra(m)>Fakra(m) 500cm

facia plate with 2-DIN installation kit

vehicles with 2-DIN Audio 50 APS Comand NTG2 / NTG2.5 OEM Sat Nav
vehicles with Audiogateway*
vehicles with Harman Kardon OEM amplified system*

RCA(m) > front preamp output retrofit HU

fader not supported
clock adjustment not supported:
vehicles code to Audio 20 OEM HU if possible

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

Mercedes CLS (C219) 10/2004 - 06/2008
Mercedes E-class (W211) 03/2002 - 02/2008**

Colour: black

Mounting cutout HU display: 172mm x 98,5mm

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal
SWC

*in individual cases, depending on the OEM system and the retrofit radio, increased noise or a switch-on or switch-off noise may occur
*OEM units > CD-Changer / TV-Tuner / Phone Modul must be bypassed from the MOST ringsystem if necessary:
*Fibre optic connector Most-ring > item: 771000-2100
*Fibre optic loop (f) MOST-ring > item: 771000-2101
**electric storage compartment function not supported
