Varenr.: ZXMPCH1
På lager hos vores leverandør

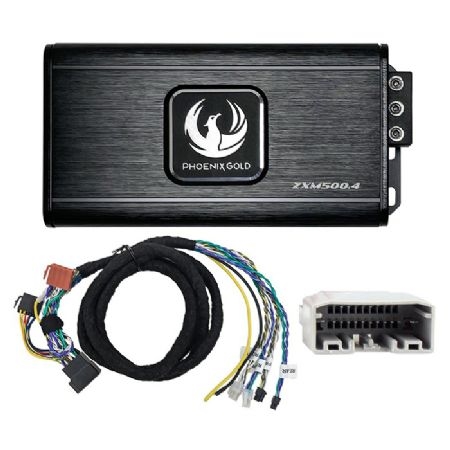

ZXMPCH1 is a Plug and Play power-up kit made for Chrysler, Dodge and Jeep vehicles. This power up kit consists of a variety of technology designed to improve the overall audio output of a vehicle. The ZXMPCH1 includes a ZXM500.4 Amplifier and ZXMISOT2 ISO-T harness.
Utilising the high-level signals from your vehicle and passing it through the 4-channel 500W amplifier transforming and amplifying the audio signal before sending it to your speakers, gives them a real boost in both output and performance delivering an all new and improved audio experience with ZXMPCH1.
The amplifier boasts a sleek, compact design while delivering substantial power in a remarkably small package. This makes the amplifier easy to install almost anywhere and thanks to the use of class-D technology the amplifier does not run the risk of getting hot or overheating.
ZXMPCH1 Power-up Kit Key Features
ZXMPCH1 Quick and easy install
No modifications needed on the vehicle
Invisible integration
ZXMPCH1 Sound quality superior to the original one
No additional accessories required
All in one box
The ZXM500.4 is an impressive Class-D 4-channel Mini Amplifier. The ZXM amplifiers are made to be as small as possible without compromising sound quality, power and functions. The ZXM500.4 is a 4-channel amplifier with a total power of 500W RMS. This equals 4x80W RMS in 4Ohm but the amplifier is stable into 2Ohm and then delivers 4x125W RMS. The 4 channels can also be bridged into 2x250W RMS in 4Ohm. The amplifier comes with adjustable HP/ LP filters and also a switch to use 2ch input or 4ch input low or high level.
A high level of engineering has gone into making these amps with low EMI emissions to not interfere with the advanced electronics or FM signal.
ZXM500.4 Key Features
Massive Power & Performance
Full Class-D technology offers efficiency & performance
Short circuit/thermal and high/low voltage protection
Excellent signal-to-noise ratio and FM noise rejection
Built-in protection LED light status indicator
Surface mount component technology
Ultra small size for easy installation
Autostart on high-level input
Full adjustable HP & LP filter
ZXM500.4 Specifications
Class-D 4-Channel Mini Amplifier
Power (MAX) 1000W
Power Ratings (RMS)
125W x 4 @ 2Ohm
80W x 4 @ 4Ohm
250W x 2 @ 4Ohm bridged
Frequency Response: 20Hz 20kHz
Signal to Noise Ratio: > 90dB
Total Harmonic Distortion: < 0.3%
Low Pass Filter: 40Hz 400Hz (12dB/Oct)
High Pass Filter: 40Hz 400Hz (12dB/Oct)
High-Level Input Auto Turn-On
Dimensions (LxWxH) 165 x 83.1 x 34.8mm
Chrysler 300C 2008 >
Chrysler Aspen 2008 > 2009
Chrysler Grand-Voyager 2008>
Chrysler Sebring 2007 >
Chrysler Town-and-Country 2008 >
Chrysler Voyager 2008 >
Jeep Cherokee (2008 > 2012)
Jeep Commander 2008 > 2010
Jeep Compass 2009 >
Jeep Grand-Cherokee 2005 > 2013
Jeep Patriot 2009 >
Jeep Liberty 2008 > 2012
Jeep Wrangler 2007>
Jeep Wrangler-Unlimited 2007 >
Dodge Avenger 2007>
Dodge Caliber 2009 >
Dodge Challenger (2009 > 2012)
Dodge Charger 2008 >
Dodge Dakota 2008 >
Dodge Durango 2008 > 2009
Dodge Grand-Caravan 2007 > 2015
Dodge Journey 2008 >
Dodge Magnum 2008 > 2008
Dodge Nitro 2008 >
Dodge Ram 2008 >
