Varenr.: ZXMPM1
På lager hos os

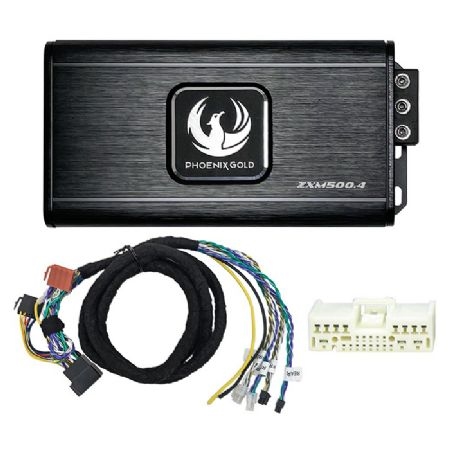

ZXMPM1 is a Plug and Play power-up kit made for Mazda (for a full model list please view Vehicle Applications). The ZXMPM1 power up kit consists of a variety of technology designed to improve the overall audio output of a vehicle. The ZXMPM1 includes a ZXM500.4 Amplifier and ZXMISOT2 ISO-T harness.
Utilising the high-level signals from your vehicle and passing it through the 4-channel 500W amplifier transforming and amplifying the audio signal before sending it to your speakers, gives them a real boost in both output and performance delivering an all new and improved audio experience with ZXMPM1.
The amplifier boasts a sleek, compact design while delivering substantial power in a remarkably small package. This makes the amplifier easy to install almost anywhere and thanks to the use of class-D technology the amplifier does not run the risk of getting hot or overheating.
The ZXMISOT2 2.2M ISO-T Harness is the perfect accessory when installing the ZXM500.4 amplifier. This 220cm long plug-and-play harness is installed between the amplifier and vehicle, taking high-level input signal from the car and passing it through the amplifier and sending it to the speakers, giving you extra power.
The amplifier boasts a sleek, compact design while delivering substantial power in a remarkably small package. This makes the amplifier easy to install almost anywhere and thanks to the use of class-D technology the amplifier does not run the risk of getting hot or overheating.
ZXMPM1 Power-up Kit Key Features
Quick and easy install
No modifications needed on the vehicle
Invisible integration
Sound quality superior to the original one
No additional accessories required
All in one box
The ZXM500.4 is an impressive Class-D 4-channel Mini Amplifier. The ZXM amplifiers are made to be as small as possible without compromising sound quality, power and functions. The ZXM500.4 is a 4-channel amplifier with a total power of 500W RMS. This equals 4x80W RMS in 4Ohm but the amplifier is stable into 2Ohm and then delivers 4x125W RMS. The 4 channels can also be bridged into 2x250W RMS in 4Ohm. The amplifier comes with adjustable HP/ LP filters and also a switch to use 2ch input or 4ch input low or high level.
A high level of engineering has gone into making these amps with low EMI emissions to not interfere with the advanced electronics or FM signal.
ZXM500.4 Key Features
Massive Power & Performance
Full Class-D technology offers efficiency & performance
Short circuit/thermal and high/low voltage protection
Excellent signal-to-noise ratio and FM noise rejection
Built-in protection LED light status indicator
Surface mount component technology
Ultra small size for easy installation
Autostart on high-level input
Full adjustable HP & LP filter
ZXM500.4 Specifications
Class-D 4-Channel Mini Amplifier
Power (MAX) 1000W
Power Ratings (RMS)
125W x 4 @ 2Ohm
80W x 4 @ 4Ohm
250W x 2 @ 4Ohm bridged
Frequency Response: 20Hz 20kHz
Signal to Noise Ratio: > 90dB
Total Harmonic Distortion: < 0.3%
Low Pass Filter: 40Hz 400Hz (12dB/Oct)
High Pass Filter: 40Hz 400Hz (12dB/Oct)
High-Level Input Auto Turn-On
Dimensions (LxWxH) 165 x 83.1 x 34.8mm
Mazda 323 (BJ) Sedan 01/2001-> 2003
Mazda 626 (GW) 6 01/2000->
Mazda 3 (B/L ) 2003 -> (2013> kan radiomodul være ved kick panel)
Mazda 6 (GH) 2002 - 2007
Mazda 6 2008 - 2013
Mazda CX-3 2015 ->
Mazda CX 5 2012 ->
Mazda CX-7 (ER) 2007 - 2013
Mazda CX-9 (TB1) 2007 - 2012
Mazda RX 8 (SE3P) 2003->
Mazda Demio 01/2000->
Mazda Xedos 9 01/2001 -2002
Mazda MX-5 (NA) 2001 - 2014
Mazda MPV (LV) 2000 - 2004
Mazda Premacy (1.Generation) 2001->
Mazda Tribute 2000->
Mazda 2 (DE) 01/2003->
Mazda 5 (CW) 2005->
Mazda MX 5 (2G + 3G ) 2001 - 2014
Ranger / Super Cab 2007 -->
