Varenr.: ZXMPT1
På lager hos os

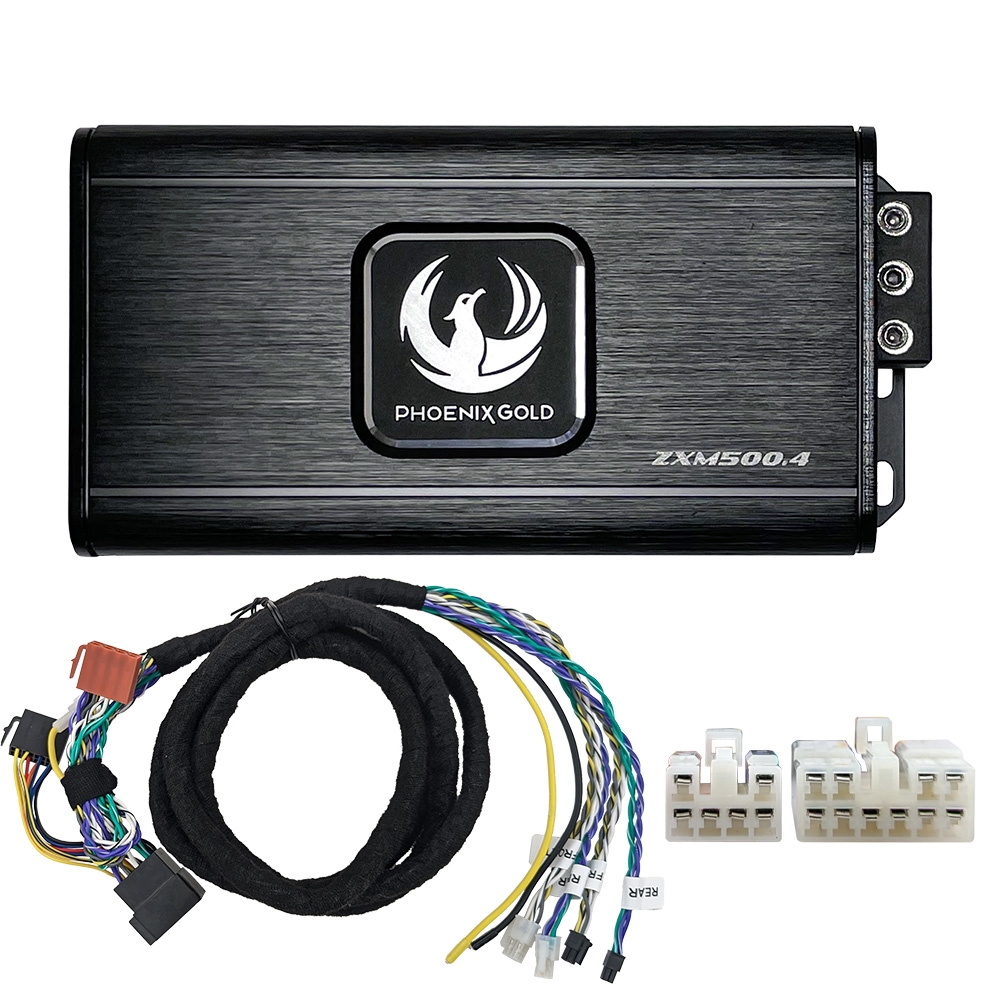

ZXMPT1 is a Plug and Play power-up kit made for Toyota vehicles from 2000 to 2018 (for a full model list please view Vehicle Applications). The ZXMPT1 power up kit consists of a variety of technology designed to improve the overall audio output of a vehicle. The ZXMPT1 includes a ZXM500.4 Amplifier and ZXMISOT2 ISO-T harness.
Utilising the high-level signals from your vehicle and passing it through the 4-channel 500W amplifier transforming and amplifying the audio signal before sending it to your speakers, gives them a real boost in both output and performance delivering an all new and improved audio experience with ZXMPT1.
The amplifier boasts a sleek, compact design while delivering substantial power in a remarkably small package. This makes the amplifier easy to install almost anywhere and thanks to the use of class-D technology the amplifier does not run the risk of getting hot or overheating.
The ZXMISOT2 2.2M ISO-T Harness is the perfect accessory when installing the ZXM500.4 amplifier. This 220cm long plug-and-play harness is installed between the amplifier and vehicle, taking high-level input signal from the car and passing it through the amplifier and sending it to the speakers, giving you extra power.
The amplifier boasts a sleek, compact design while delivering substantial power in a remarkably small package. This makes the amplifier easy to install almost anywhere and thanks to the use of class-D technology the amplifier does not run the risk of getting hot or overheating.
ZXMPT1 Power-up Kit Key Features
Quick and easy install
No modifications needed on the vehicle
Invisible integration
Sound quality superior to the original one
No additional accessories required
All in one box
The ZXM500.4 is an impressive Class-D 4-channel Mini Amplifier. The ZXM amplifiers are made to be as small as possible without compromising sound quality, power and functions. The ZXM500.4 is a 4-channel amplifier with a total power of 500W RMS. This equals 4x80W RMS in 4Ohm but the amplifier is stable into 2Ohm and then delivers 4x125W RMS. The 4 channels can also be bridged into 2x250W RMS in 4Ohm. The amplifier comes with adjustable HP/ LP filters and also a switch to use 2ch input or 4ch input low or high level.
A high level of engineering has gone into making these amps with low EMI emissions to not interfere with the advanced electronics or FM signal.
ZXM500.4 Key Features
Massive Power & Performance
Full Class-D technology offers efficiency & performance
Short circuit/thermal and high/low voltage protection
Excellent signal-to-noise ratio and FM noise rejection
Built-in protection LED light status indicator
Surface mount component technology
Ultra small size for easy installation
Autostart on high-level input
Full adjustable HP & LP filter
ZXM500.4 Specifications
Class-D 4-Channel Mini Amplifier
Power (MAX) 1000W
Power Ratings (RMS)
125W x 4 @ 2Ohm
80W x 4 @ 4Ohm
250W x 2 @ 4Ohm bridged
Frequency Response: 20Hz 20kHz
Signal to Noise Ratio: > 90dB
Total Harmonic Distortion: < 0.3%
Low Pass Filter: 40Hz 400Hz (12dB/Oct)
High Pass Filter: 40Hz 400Hz (12dB/Oct)
High-Level Input Auto Turn-On
Dimensions (LxWxH) 165 x 83.1 x 34.8mm
Citroen C1 2014-> Peugeot 108 2014>
Daihatsu Applause 1990 -> 1995
Daihatsu Charade 1993 -> 02/2004
Daihatsu Cuore 1991 ->
Daihatsu Feroza 1991 ->
Daihatsu Fourtrak 1985 -> 1993
Daihatsu Gran Move 1997 ->
Daihatsu Independent 1993 ->
Daihatsu Move 1997 ->
Daihatsu Rocky 1991 ->
Daihatsu Sirion 1998 ->
Daihatsu Terios 1997 ->
Daihatsu YRV 2000 ->
Lexus GS300 1993 -> 1997
Lexus GX470 2002 ->
Lexus IS200 1999 -> 09/ 2005
Lexus IS300 2001 -> 09/2005
Lexus LX 450 1996 -> 1997
Lexus SC400 1991 -> 2001
Lexus SC300 1991 -> 2001
Toyota aygo 2005>
Toyota 4-Runner 1989 ->
Toyota Auris 2007 ->
Toyota Avalon 1995 -> 1999
Toyota Avensis 1997 ->
Toyota Camry 1987 ->
Toyota Carina E 1992 -> 1997
Toyota Celica 1986 ->
Toyota Coaster 1993 ->
Toyota Corolla 1988 ->
Toyota Corolla Verso 2004 ->
Toyota Cressida 1989 -> 1992
Toyota Echo 2000 -> 2003
Toyota FJ Cruiser 2006 ->
Toyota Fortuner Toyota Hi-Ace 1989 ->
Toyota GT86 2012->
Toyota Hi-Lux 1989 ->
Toyota Highlander 2001 ->
Toyota Kluger 2001 ->
Toyota Land Cruiser 100 08/2002 ->
Toyota Land Cruiser 90 1984 ->
Toyota Land Cruiser 1984 -> 1999
Toyota Lite Ace 1993 ->
Toyota Matrix 2005 ->
Toyota MR 2 1987 ->
Toyota Optimo 1993 ->
Toyota Paseo 1992 -> 1999
Toyota Pick Up 1986 -> 1995
Toyota Picnic 1990 ->
Toyota Previa 1990 ->
Toyota Prius 2004 ->
Toyota RAV4 1994 ->
Toyota Sequoia 2001 ->
Toyota Solara 1998 ->
Toyota Sports Van 1996 -> 2004
Toyota Starlet 1993 ->
Toyota Supra 1986 -> 1998
Toyota Tacoma 1995 -> 2001
Toyota Tercel 1987 -> 1998
Toyota Tundra 2000 ->
Toyota Van 1987 -> 1990
Toyota Yaris 1999 ->
VW Taro
Subaru - Forester (2015 >)
Subaru - Impreza (2015 >)
Subaru - XV (2015 >)
Justy 2008>
Subaru BRZ . 10/2012 ->
Trezia, Outback, Legacy, RX 2012>
