Varenr.: ZXMPVW1
På lager hos vores leverandør

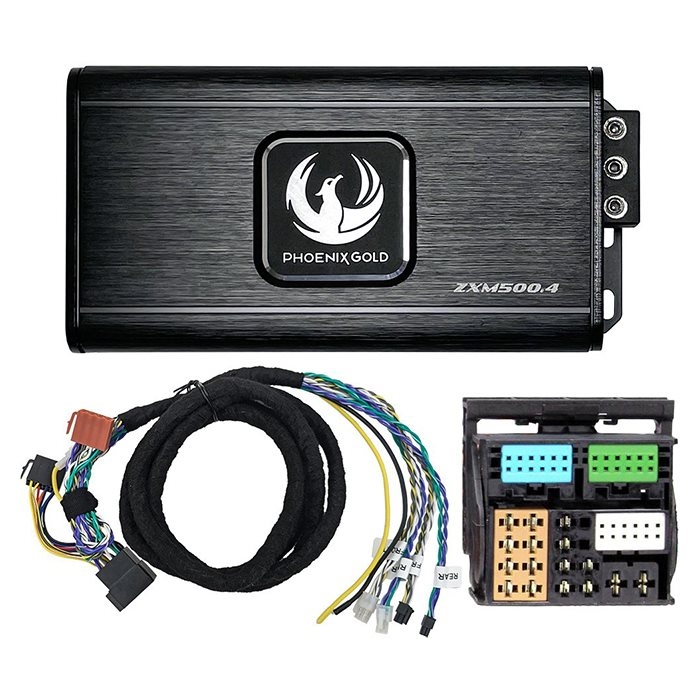

ZXMPVW1 is a Plug and Play power-up kit made for Volkswagen vehicles from 2012 and up (for a full model list please view Vehicle Applications). The ZXMPVW1 power up kit consists of a variety of technology designed to improve the overall audio output of a vehicle. The ZXMPVW1 includes a ZXM500.4 Amplifier and ZXMISOT2 ISO-T harness.
Utilising the high-level signals from your vehicle and passing it through the 4-channel 500W amplifier transforming and amplifying the audio signal before sending it to your speakers, gives them a real boost in both output and performance delivering an all new and improved audio experience. The amplifier boasts a sleek, compact design while delivering substantial power in a remarkably small package. This makes the amplifier easy to install almost anywhere and thanks to the use of class-D technology the amplifier does not run the risk of getting hot or overheating.
The ZXMISOT2 2.2M ISO-T Harness is the perfect accessory when installing the ZXM500.4 amplifier. This 220cm long plug-and-play harness is installed between the amplifier and vehicle, taking high-level input signal from the car and passing it through the amplifier and sending it to the speakers, giving you extra power.
The amplifier boasts a sleek, compact design while delivering substantial power in a remarkably small package. This makes the amplifier easy to install almost anywhere and thanks to the use of class-D technology the amplifier does not run the risk of getting hot or overheating.
ZXMPVW1 Power-up Kit Key Features
Quick and easy install
No modifications needed on the vehicle
Invisible integration
ZXMPVW1 Sound quality superior to the original one
No additional accessories required
All in one box
The ZXM500.4 is an impressive Class-D 4-channel Mini Amplifier. The ZXM amplifiers are made to be as small as possible without compromising sound quality, power and functions. The ZXM500.4 is a 4-channel amplifier with a total power of 500W RMS. This equals 4x80W RMS in 4Ohm but the amplifier is stable into 2Ohm and then delivers 4x125W RMS. The 4 channels can also be bridged into 2x250W RMS in 4Ohm. The amplifier comes with adjustable HP/ LP filters and also a switch to use 2ch input or 4ch input low or high level.
A high level of engineering has gone into making these amps with low EMI emissions to not interfere with the advanced electronics or FM signal.
ZXM500.4 Key Features
Massive Power & Performance
Full Class-D technology offers efficiency & performance
Short circuit/thermal and high/low voltage protection
Excellent signal-to-noise ratio and FM noise rejection
Built-in protection LED light status indicator
Surface mount component technology
Ultra small size for easy installation
Autostart on high-level input
Full adjustable HP & LP filter
ZXM500.4 Specifications
Class-D 4-Channel Mini Amplifier
Power (MAX) 1000W
Power Ratings (RMS)
125W x 4 @ 2Ohm
80W x 4 @ 4Ohm
250W x 2 @ 4Ohm bridged
Frequency Response: 20Hz 20kHz
Signal to Noise Ratio: > 90dB
Total Harmonic Distortion: < 0.3%
Low Pass Filter: 40Hz 400Hz (12dB/Oct)
High Pass Filter: 40Hz 400Hz (12dB/Oct)
High-Level Input Auto Turn-On
Dimensions (LxWxH) 165 x 83.1 x 34.8mm
Audi
Audi A1 (8X) 07/2010 - 04/2018*
Audi A3 (8V) 02/2013 - 05/2016
Audi A3 (8V) 07/2016 - 03/2020
Audi Q3 (8U) 10/2011 - 11/2014
Audi Q3 (8U) 02/2015 - 08/2018
MAN
MAN TGE 04/2017 - 2023
Seat
Seat Alhambra (7N) 06/2015 - 01/2022
Seat Arona (KJ) 11/2017 - 06/2021
Seat Ateca (5FP) 08/2016 - 08/2020
Seat Ateca (5FP) 08/2020 - 2022
Seat Ibiza (6P) 07/2015 - 04/2017
Seat Ibiza (KJ) 07/2017 - 03/2021
Seat Mii (AA) 05/2015 - 04/2018
Seat Mii (AA) 01/2020 - 02/2021
Seat Leon (5F) 11/2012 - 12/2016
Seat Leon (5F) 11/2016 - 01/2020
Seat Toledo (NH) 03/2013 - 08/2018
Skoda
Skoda Citigo (AA) 05/2017 - 06/2019
Skoda Fabia III (5J) 11/2014 - 08/2018
Skoda Fabia III (5J) 08/2018 -05/2021
Skoda Karoq (NU) 11/2017 - 11/2021
Skoda Kodiaq (NS) 03/2017 - 06/2021
Skoda Octavia III (5E) 02/2013 - 12/2016
Skoda Octavia III (5E) 01/2017 - 01/2020
Skoda Rapid (NH) 04/2015 - 05/2017
Skoda Rapid (NH) 05/2017 - 02/2019
Skoda Superb (3V) 06/2015 - 06/2019
Skoda Yeti (5L) 10/2013 - 07/2017
VW
VW Amarok (2H) 09/2016 - 07/2020
VW Arteon (3H) 11/2017 - 06/2020
VW Beetle (16) 06/2016 - 03/2018
VW Caddy IV (DU) 06/2015 - 09/2020
VW Crafter II (SY/SZ) 03/2017 - 2022**
VW Golf VII (AU) 11/2012 - 12/2016
VW Golf VII (AU) 03/2017 - 05/2020
VW Grand California (SY/SZ) 03/2019 - 2023
VW Passat B8 10/2014 - 05/2019
VW Polo V (6R) 04/2014 - 07/2017
VW Polo VI (AW) 11/2017 - 05/2021
VW Sharan II (7N) 07/2015 - 10/2021
VW T6 (7HC) 07/2015 - 08/2019
VW T6.1 (7HC) 11/2019 - 2023
VW T-Roc (A1) 11/2017 - 10/2021
VW Tiguan II (5N) 05/2016 - 05/2021
VW Touran (5T) 09/2015 - 2023
VW UP! (AA) 07/2016 - 12/2020
