Varenr.: ZXM400.4ISO
På lager hos os
Download manual
OEM Integration Made Simple. Mini in size, Maximum in Power and Compatibility.

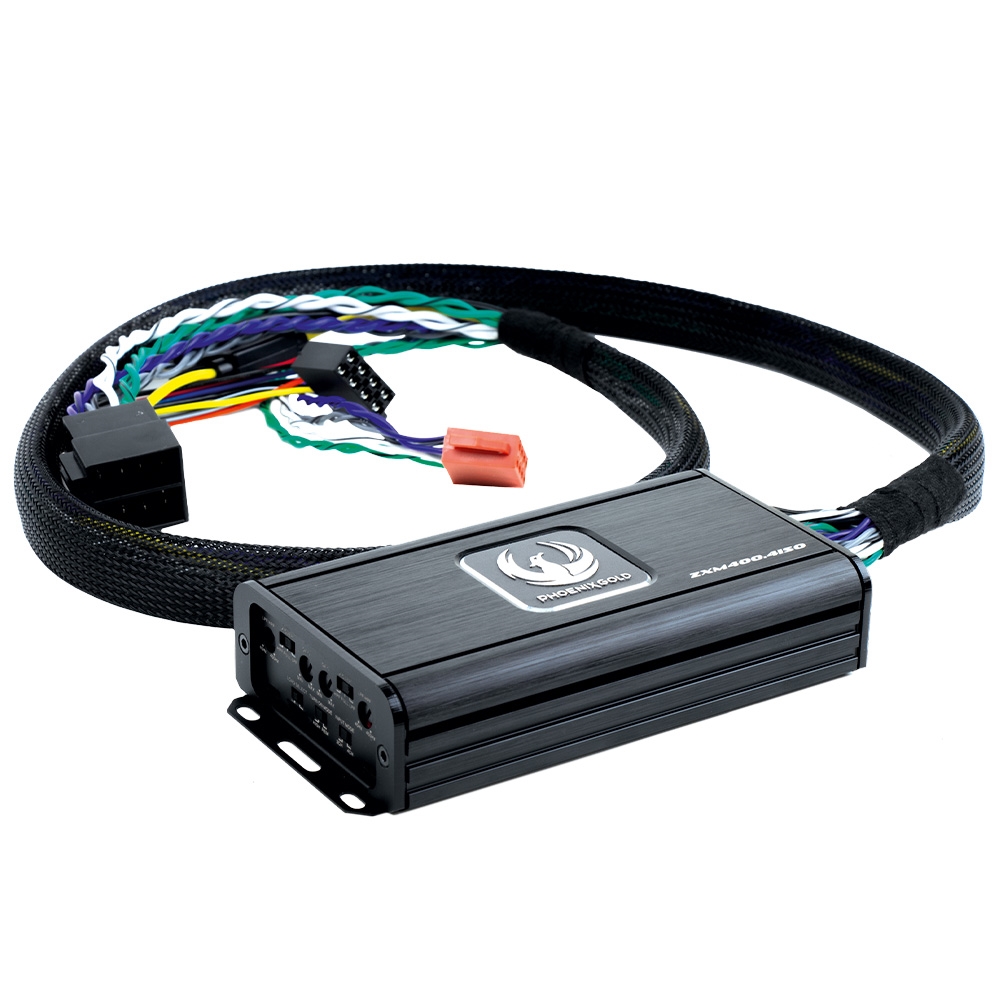

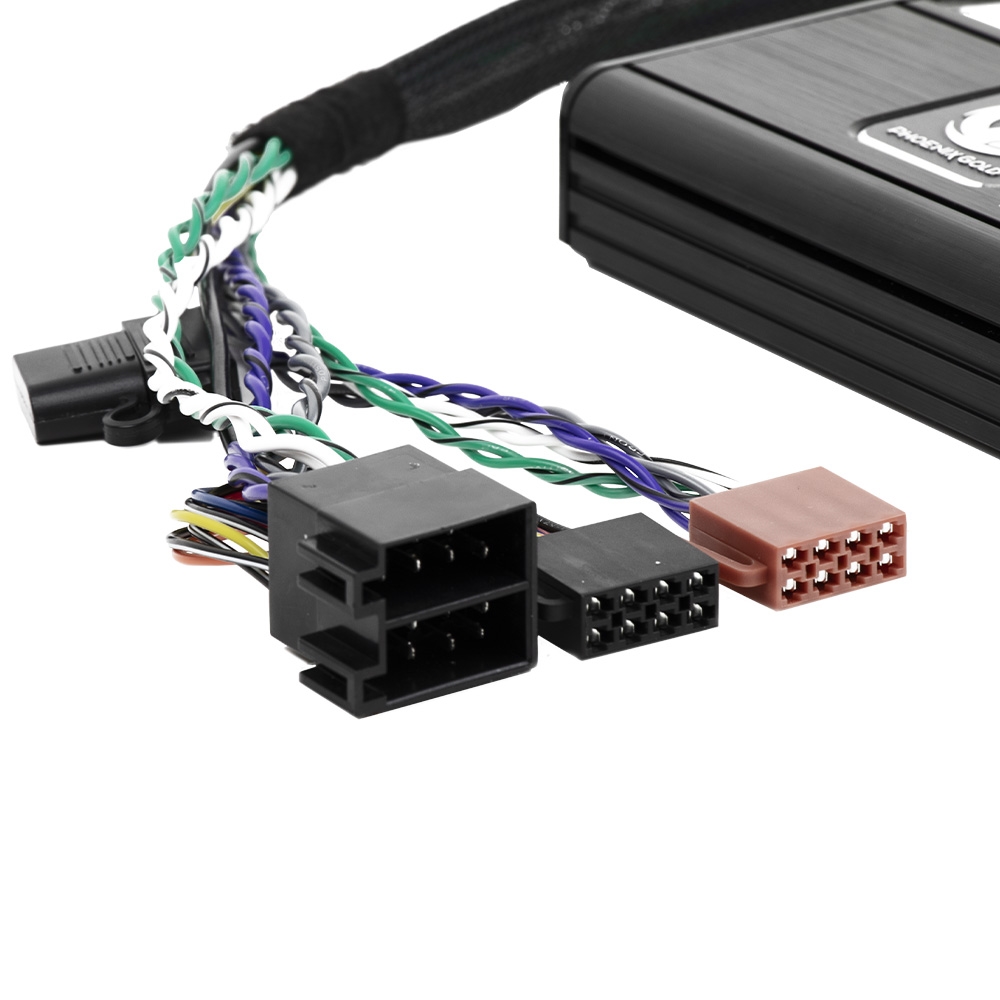

The ZXM400.4ISO Plug & Play mini amp is the perfect solution for upgrading OEM audio without needing the more advanced ZDA DSP amplifier. Designed from the ground up for true plug & play installation, this ISO mini amp connects seamlessly via our complete ecosystem of plug & play harnesses, allowing you to upgrade over 2,000 vehicles without cutting, splicing, or modifying factory wiring.
Despite its ultra-compact size, the ZXM400.4ISO delivers clean, efficient, and powerful Class-D amplification suitable for both OEM and aftermarket systems. Engineered for direct integration, it’s the ideal choice for drivers who want better sound quickly and reliably.
RCA Outputs
The ZXM400.4ISO doesn’t stop at upgrading your system—it also enables expansion. With two RCA outputs, you can connect additional amplifiers, such as a subwoofer amplifier, without the need to add an additional high-low level converter or wire additional high-level wires to a separate amplifier.
Why Choose the ZXM400.4ISO?
100% Plug & Play – Designed to work directly with our complete plug & play harness range.
OEM-Ready ISO Design – Perfect for factory audio upgrades with no coding or complexity.
Compact & Powerful – Mini chassis, big performance.
Simple Installation – No cutting, no complications, connect and enjoy.
Features at a Glance
Class-D efficiency and clean output
Short circuit / thermal/high-low voltage protection
Excellent signal-to-noise ratio & FM noise rejection
LED status indicator
Surface-mount technology for reliability
Ultra-small footprint for easy mounting
Auto-start with high-level input
Fully adjustable high-pass & low-pass filters
Specifications
Class-D 4-Channel Mini Amplifier
Power (MAX): 1000W
RMS Power:
125W x 4 @ 2Ω
80W x 4 @ 4Ω
250W x 2 @ 4Ω bridged
Frequency Response: 20Hz–20kHz
Signal to Noise Ratio: > 90dB
THD: < 1%
Low Pass Filter: 40Hz–400Hz (12dB/Oct)
High Pass Filter: 40Hz–400Hz (12dB/Oct)
Crosstalk: -45dB
Input Sensitivity: 0.45V–20V
High-Level Auto Turn-On: Yes
Input Mode: 2CH / 4CH
OIS – OEM Impedance Simulation: Yes
Operating Voltage: 7V–16.5V
Idle Current: 0.70A
Max Current Draw: 48A
Total Efficiency (4Ω): 90%
Power Terminal: 10mm²
Speaker Terminal: 1mm²
Dimensions (w/ Feet): 165 × 83.1 × 34.8 mm
Dimensions (w/o Feet): 149 × 83.1 × 34.8 mm
Passer til alle modeller med t-kabel monteret samt direkte modeller herunder hvor iso stik er standart.
Alfa Romeo
145 1994 - 2001
146 1995 - 2001
147 2000 - 2006
155 1992 - 1997
156 1997 - 2007
164 1988 - 1998
166 2001 → GT Coupé 2004 - 2006
GTV (2G) 1994 - 2006
Spider (5G) 1990 - 2006
Audi
A2 (Type 8Z) all models 1999 - 2005
A3 (1G - Type 8L) all models 1996 - 2003
A3 (2G - Type 8P/8PA) all models 2003 - 2008
A4 (type B5) all models 1994 - 2001
A4 (type B6) all models 2000 - 2004
A4 (type B7) all models 2004 - 2006
A6 (C4 Type 4A) all models 1994 - 2005
A8 (Type D2/D3) all models 1994 - 2002
TT Coupé / Roadster (G1 - Type 8N) all models 1998 - 2006
Citroen
Berlingo I 2003 - 2008
C1 (1G) all models 2005 - 2012
C2 2003 - 2005
C3 / Pluriel 2001 - 2004
C5 (1G) 2001 - 2004
C8 2002 - 2005
Evasion 1994 - 2002
Xsara / Xsara Picasso 2002 until today
Fiat
Ulysse I (1st generation) 1994 - 2002
Ulysse II (2nd generation) 2002 - 2005
Ford
Galaxy (1G - WGR) all models 1995 - 2006
Hyundai
Santa Fe (2G - Type CM) all 2010 - 2012 models i10 (1G) all 2008 - 2014 models
i20 (1G - Type PB) all models 2008 - 2014
i30 (1G - Type FD/FDH) all models 2007 - 2012
i40 all models 2011 - 2014
ix35 all models 2010 - 2013
Kia
Carens (3G - Type UN) all models 2009 - 2013
Ceeïd (1G - Type ED) all models 2007 - 2012
Ceeïd (2G - Type JD) all models 2012 until today
Pro-cee'd (1G - Type ED) all models 2008 - 2012
Sorento (2G - Type XM) all models 2009 - 2012
Soul (1G) all models 2008 - 2011
Sportage (3G - Type SL) all models 2010 - 2012
Venga (1G - Type YN) 2009 - 2015
Lancia
Phedra 2002 - 2005
Zeta 1994 - 2002
Peugeot
1007 all models 2005 - 2009
107 all models 2005 - 2012
06 all models 1998 - 2012
307 2001 - 2005
406 2001 - 2004
806 1994 - 2002
807 2002 - 2005
Partner (1G) 2003 - 2008
Porsche
911 (Type 964) all models 1988 - 1994
911 (Type 993) all models 1993 - 1998
911 (Type 996) all models 1997 - 2006
928 GTS all models 1992 - 1995
968 all models 1991 - 1995
Seat
Alhambra 1996 - 2005
Arosa (Type 6H+6HS) all models 1997 - 1999
Cordoba (Type 6K/C - 6K GP01) all models 1993 - 2002
Cordoba (Type 6L) all models 2002 - 2008
Ibiza (2G -Type 6K) all models 1993 - 2002
Ibiza (3G - Type 6L) all models 2002 - 2008
Leon (1G - Type1M1) all models 2000 - 2005
Toledo (2G - Type 1M) all models 1998 - 2004
Skoda
Fabia I (Type 6Y) all models 1999 - 2007
Octavia I (Type 1U) all models 1997 - 2010
Superb I (Type 3U4) all models 2001 - 2008
Toyota
Aygo (1G) all models 2005 - 2012
Volkswagen
Bora 1998 - 2005
Corrado 1989 - 1993
Golf-2 (Type 19E) 1988 - 1992
Golf-3 (Type 1H) 1991 - 2002
Golf-4 (1J) 1997 - 2003
Lupo 1998 - 2005
Passat B5 (Type 3B) all models 1997 - 2000
Passat B5 GP (Type 3BG) all models 2000 - 2003
Polo II (Type 86c 2F) all models 1990 - 1994
Polo III (Type 6N) all models 1994 - 1999
Polo III (Type 6N2) all models 1999 - 2001
Polo IV (type 9N) all models 2001 - 2005
Sharan-1 (type 7M8) 1995 - 2000
Sharan-1 (Type 7M9) 2000 - 2004
Vento all models 1992 - 1998
