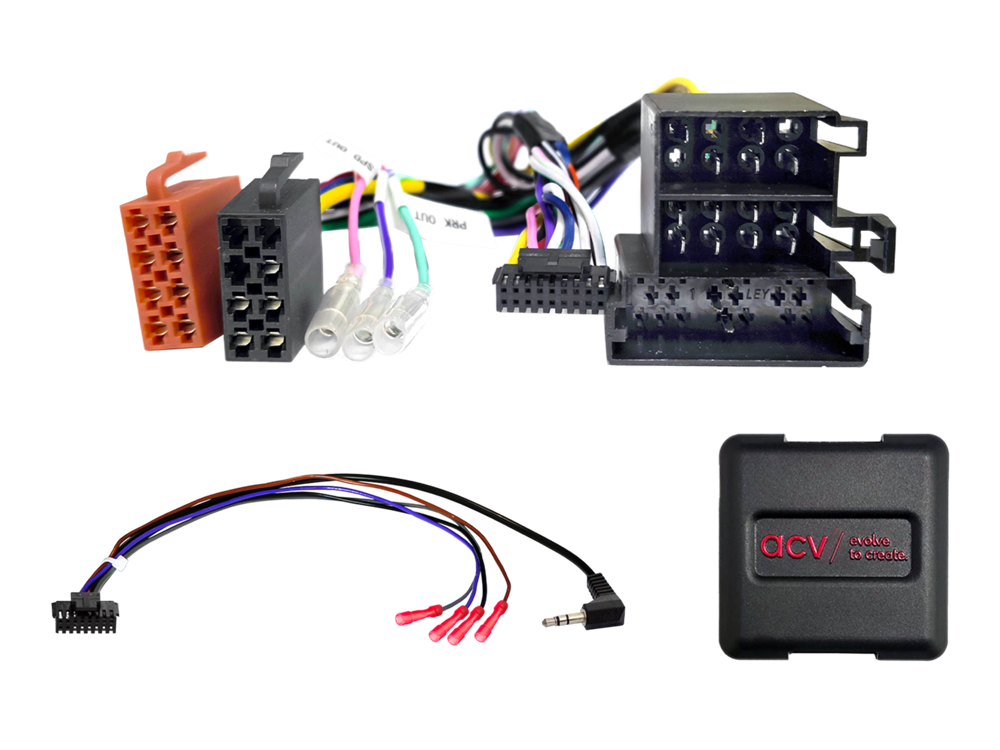

RAT INTERFACE DUCATO PLATFORM 2006 - 2014 MED OEM RADIO FRA START (ALL INCL)

analog SWC
CAN Bus

connector: ISO / Mini ISO
connector: OEM SWC > 3,5mm Jack / loose wire

vehicles with OEM HU
vehicles with 8 SWC buttons / functions
vehicles with CAN Bus and analog SWC in Mini ISO connector C2 Pin 10/11/12

vehicles with Blue&Me > Blue&Me module must remain installed

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

Citroen
Citroen Jumper (250) 10/2006 - 11/2011
Citroen Jumper (250) 11/2011 - 05/2014*
Citoren Relay (250) 2006 - 2011
Citoren Relay (250) 2011 - 2014*

Fiat
Fiat Ducato (ZAF 250) 06/2006 - 06/2011
Fiat Ducato (ZAF 250) 06/2011 - 05/2014*

Peugeot
Peugeot Boxer (Y) 02/2007 - 07/2011
Peugeot Boxer (Y) 07/2011 - 05/2014*

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal

load capacity outputs: 250 mA max.

current requirement more than 250 mA:
1 relay coil resistance 75 Ohm min.
2 relays coil resistance 150 Ohm min.

SWC

*vehicles without Delphi 2-DIN OEM HU piano black with central control knob
*vehicles with Delphi 2-DIN OEM HU piano black with central control knob:
LFB Citroen/Fiat/Opel/Peugeot ISO CAN Bus/Mini ISO > item: 42xfa004
