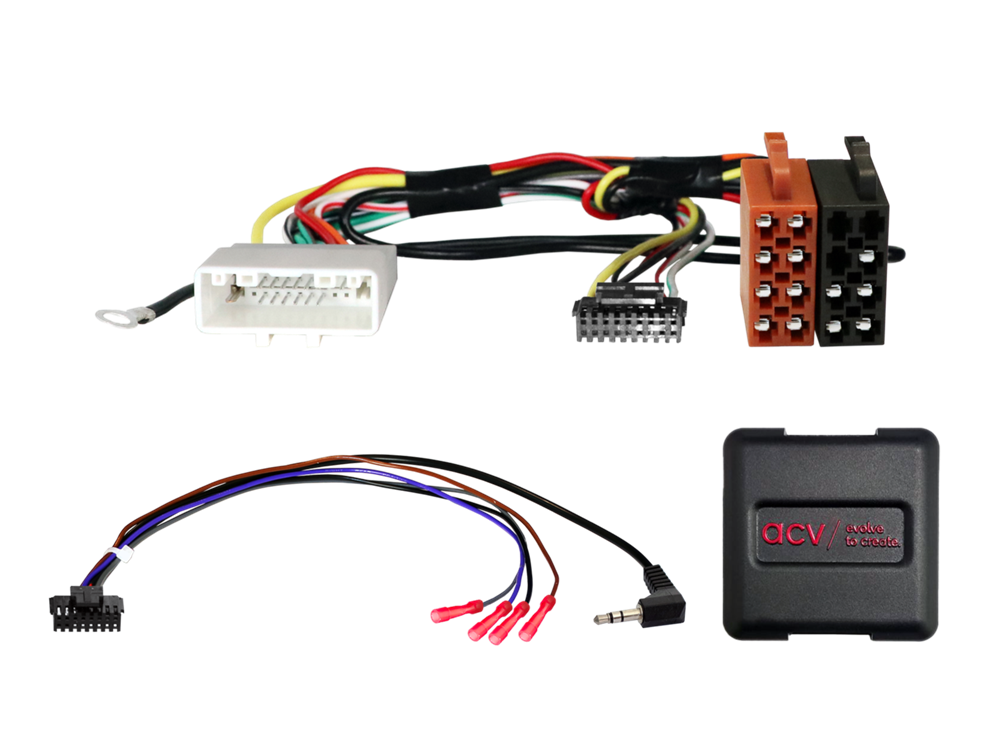

RAT INTERFACE TIL DIV NISSAN 20 PIN (ALL INCL.)

Note:

analog

connector: 20 Pin Nissan
connector: OEM SWC > 3,5mm Jack / loose wire

vehicles with Blaupunkt / Bosch / Clarion OEM HU
vehicles with 6 SWC functions exept I / back function
vehicles with OEM amplified system*

vehicles without OEM amplified system

black: GND clamp 31

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

Nissan Micra (K12) 10/2007 - 09/2010
Nissan Micra C+C (K12) 11/2005 - 03/2009
Nissan Micra (K13) 09/2013 - 02/2017
Nissan Navara (D40) 04/2010 - 08/2015
Nissan NV200 (M20M) 07/2016 - 08/2022
Nissan NV200 electro (M20) 04/2018 - 08/2022
Nissan Pathfinder (R51) 04/2010 - 2013
Nissan Qashqai (J10) 02/2007 - 02/2010
Nissan Qashqai (J10) 03/2010 - 10/2014
Nissan X-Trail (T31) 10/2010 - 06/2014

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

SWC

*+12V Amp remote Pin 2 next to +12V continious current > check with OEM HU by measuring
*Active system adapter different vehicles ISO>ISO: 13-1190-50
