Varenr.: 42xns026
På lager hos vores leverandør
Download manual

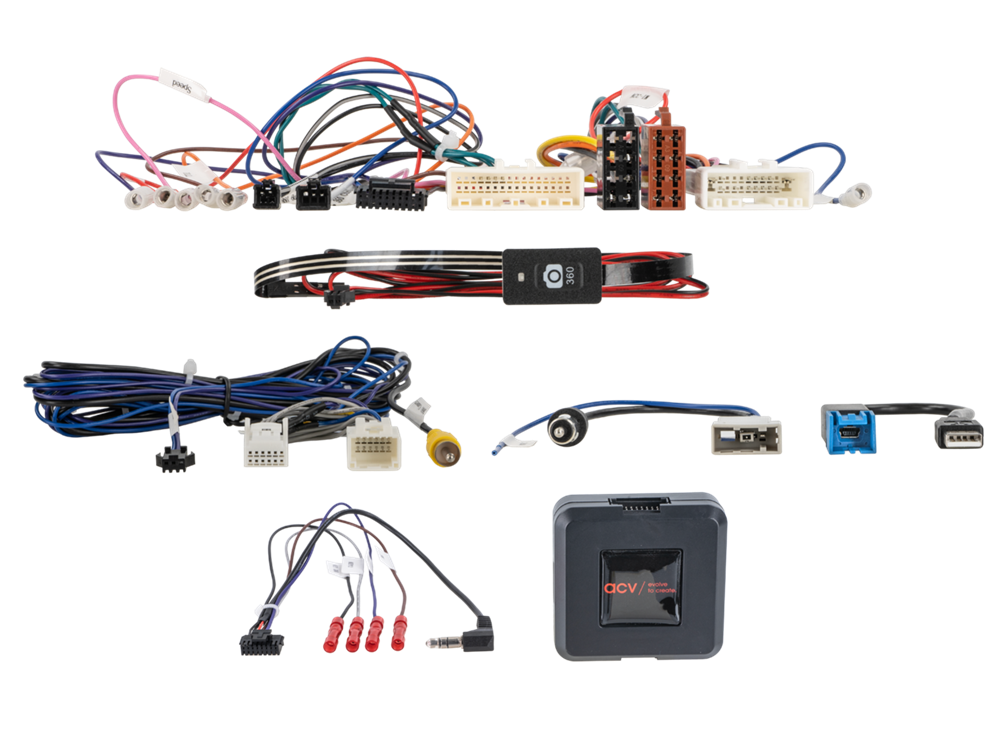

Interface der muliggøre tilslutning af eftermarkedsradio til bilens originale ratbetjening.
Det gør det muligt at styre primær funktioner på radioen.
Passer til følgende modeller: Beholder OEM kamera og usb i bilen. Leveres med antenne adapter
CAN Bus
connector: 20 Pin / 32 Pin Nissan
connector: OEM SWC > 3,5mm Jack / loose wire
connector: OEM USB > USB-A
connector: OEM mirror camera > T-harness
connector: OEM 360° mirror camera system > RCA(m) yellow
connection of the camera system to the rear view mirror
vehicles with model equipment N-connecta with mirror camera
vehicles with model equipment Tekna with 360 mittor camera system
vehicles without camera display in the OEM HU
BC reset factory settings and reconfiguration required if AUX menu is missing:
track forward / track back > function can be swapped
dip switch settings for the retrofit device manufacturer (look into the manual)
Vehicle application:
Nissan Navara (D231) 01/2016 - 07/2019
Nissan Terra 04/2018 - 2022
Following signals are provided:
Reimported vehicles or vehicles with different software may be incompatible in functions.
red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal
load capacity outputs: 250 mA max.
current requirement more than 250 mA:
1 relay coil resistance 75 Ohm min.
2 relays coil resistance 150 Ohm min.
SWC
date/time settings supported
360° OEM camera system supported
