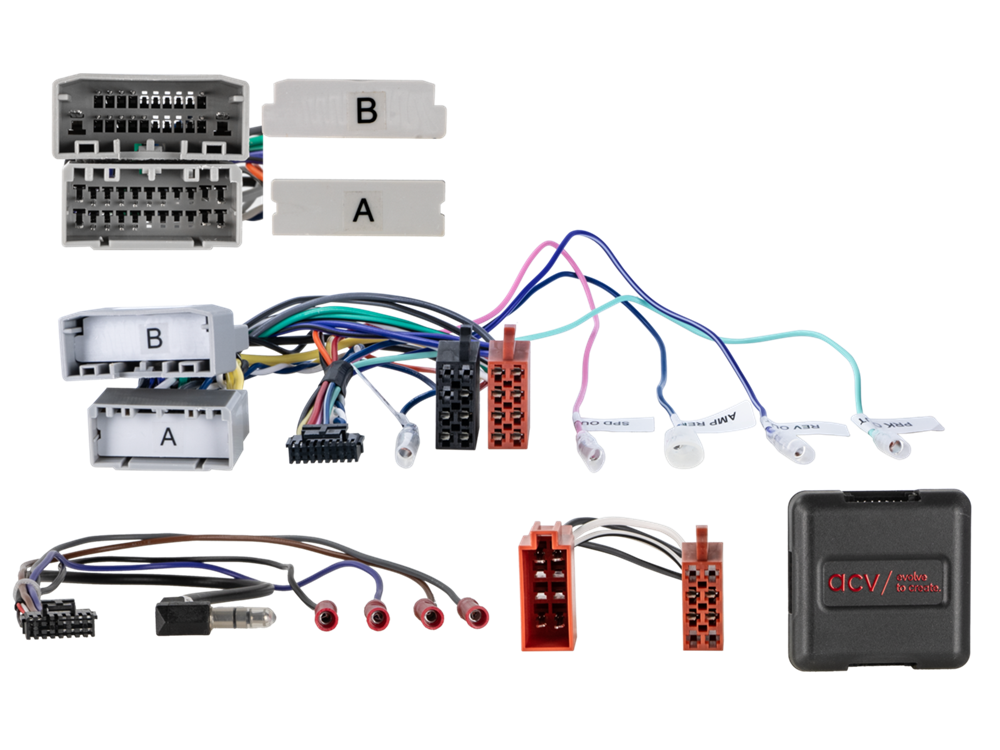

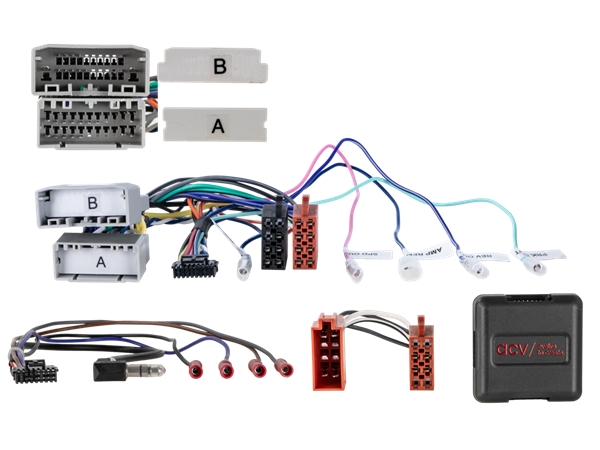

RATBETJENING CHRYSLER/DODGE/JEEP (ALL INCL)

CAN Bus

connector: 22 Pin Chrysler // 24 Pin Chrysler
connector: OEM SWC > 3,5mm Jack / loose wire

blue/white: +12V Amp remote

vehicles with CAN Bus without +12V switched ignition clamp15
vehicles with/without OEM amplified system

vehicles without Infinity OEM amplified system*/**
vehicles without CAN Bus with +12V ignition**
vehicles without blind spot

blind spot not supported
PDC not supported
speed pulse not supported
OEM amplified system fader not supported

check telephone audio/Sat Nav Audio > change front/rear audio output connection if necessary

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

Chrysler
Chrysler 200 2011 - 2014
Chrysler 300 06/2004 - 12/2010
Chrysler 300C (LX) 06/2004 - 11/2007
Chrysler 300C (LX) 11/2007 - 12/2010
Chrysler 300M 01/2002 - 06/2004
Chrysler Aspen 2007 - 2009
Chrysler Concorde 2002 - 2004
Chrysler Pacifica 2004 - 2008
Chrysler PT Cruiser (PT) 10/2001 - 04/2006
Chrysler PT Cruiser (PT) 01/2006 - 06/2009
Chrysler Sebring (RJ) 03/2001 - 04/2003
Chrysler Sebring (RJ) 04/2003 - 07/2007
Chrysler Sebring (RJ) 05/2007 - 08/2010
Chrysler Town&Country 2008 - 2016
Chrysler Voyager (GK/GY/RG) 03/2001 - 05/2004
Chrysler Voyager (GK/GY/RG) 05/2004 - 03/2008
Chrysler Voyager (RT) 03/2008 - 12/2010

Doge
Dodge Avenger (JS) 06/2007 - 06/2009
Dodge Caliber (PK) 06/2006 - 12/2010
Dodge Caravan 2002 - 2015
Dodge Charger 2009 - 2012
Dodge Challenger 2008 - 2014
Dodge Dakota 2002 - 2011
Dodge Durango 2003 - 2009
Dodge Journey (JC) 06/2008 - 12/2010
Dodge Magnum 2008 - 2009
Dodge Nitro 2007 - 2011
Dodge RAM 2002 - 2008
Dodge RAM Dodge RAM 1500 2009 - 2011
Dodge RAM 2500 2010 - 2012
Dodge RAM 3500 2010 - 2012
Dodge RAM chassis cab 2011
Dodge RAM C/V Tradesman 2012 - 2015
Dodge Stratus 2002 - 2006
Dodge Viper (SR) 11/2003 - 04/2010

Jeep
Jeep Commander (WH) 05/2008 - 11/2010
Jeep Compass (PK) 11/2006 - 06/2010
Jeep Compass (PK) 05/2011 - 12/2016
Jeep Grand Cherokee (WJ) 10/2001 - 06/2005
Jeep Grand Cherokee (WH) 06/2005 - 10/2007
Jeep Grand Cherokee (WH) 10/2007 - 12/2010
Jeep Grand Cherokee (WK) 12/2010 - 06/2013
Jeep Liberty 2002 - 2012
Jeep Patriot (PK) 2007 - 2017
Jeep Wrangler (TJ) 01/2003 - 03/2007
Jeep Wrangler (JK) 04/2007 - 02/2011
Jeep Wrangler (JK) 02/2011 - 07/2018

Lancia
Lancia Voyager (RT) 11/2011 - 08/2015

Mitsubishi
Mitsubishi Raider 2008 - 2009

VW
VW Routan 2009 - 2015

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal

load capacity outputs: 250 mA max.

current requirement more than 250 mA:
1 relay coil resistance 75 Ohm min.
2 relays coil resistance 150 Ohm min.

SWC

OEM amplified system fader not supported

*vehicles 2002 - 2009 analog with Infinity OEM amplified system not supported
*Infinity OEM amplifier bypass > speaker direct connection
**SWC different US vehicles/Opel GT analog/CAN Bus > item: 42-uni-usa
**connector ISO Harness Adapter Chrysler/Dodge/Jeep 22Pin > item: 1031-02
