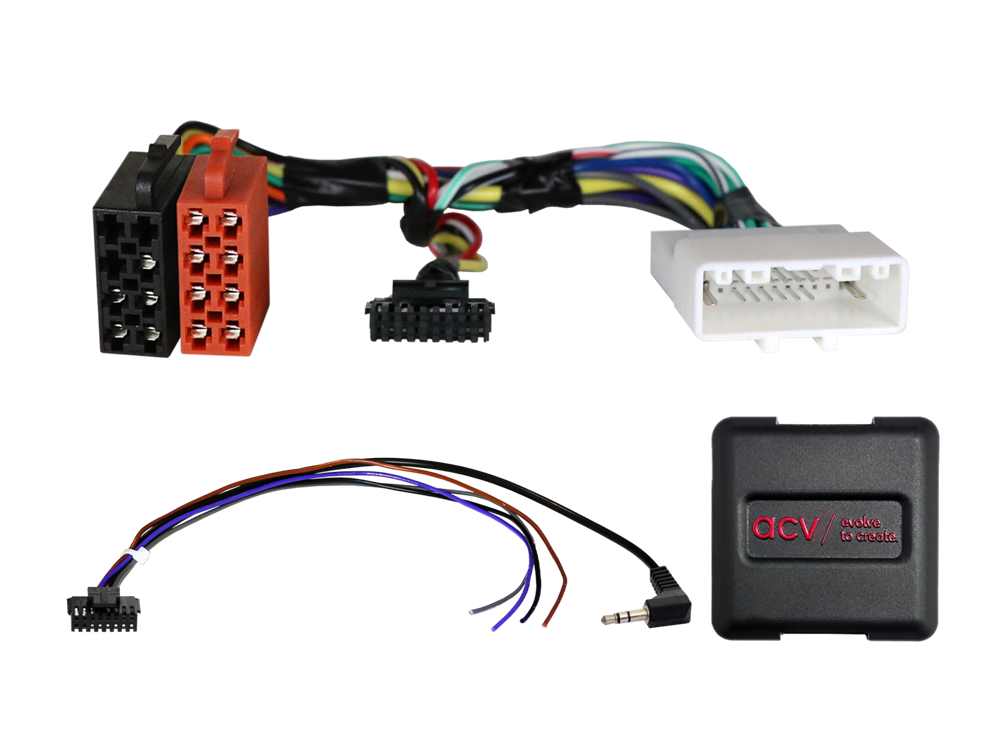

RATBETJENINGS INTERFACE SUBARU 2008> MED 20 PIN MULTISTIK (ALT INCL)

Note:

analog

connector: 20 Pin Nissan
connector: OEM SWC > 3,5mm Jack / loose wire

vehicles without OEM Sat Nav
vehicles without Harman Kardon OEM amplified system

vehicles with Harman Kardon OEM amplified system:
+12V Amp remote Pin 9 next to +12V continuous current by measuring with OEM HU
Active system adapter different vehicles ISO>ISO > item: 13-1190-50

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

Subaru Forester III (SH) 03/2011 - 03/2013
Subaru Impreza WRX (GH) 02/2008 - 04/2014
Subaru Outback IV (BM/BR) 09/2009 - 04/2013
Subaru Outback IV (BM/BR) 04/2013 - 03/2015*
Subaru XV I (4G) 03/2012 - 01/2016

The following signals are provided:

reimported vehicles or vehicles with different software may be incompatible in functions.

SWC

*vehicles without OEM Sat Nav
