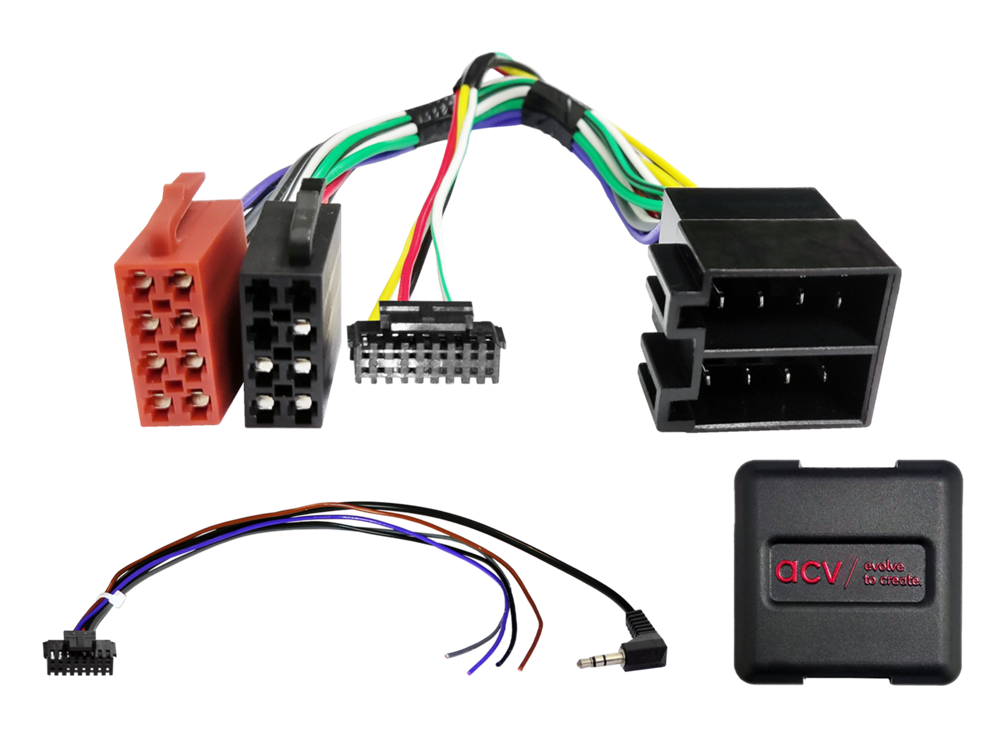

RATBETJENINGS INTERFACE OPEL DIV M/ISO (ALL INCL)

Note:

analog

connector: ISO

vehicles with SWC connection power connector A Pin 2

vehicles with Delco / Delphi / Grundig / Philips 1-DIN OEM HU
vehicles with CCR2006 / CAR2003 / CAR2004 / CDR2005 OEM HU

vehicle settings not supported

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

Opel Agila A (H00) 08/2000 - 06/2003
Opel Astra G (T92/T98) 02/1998 - 02/2005
Opel Astra G (T98C) 03/2000- 01/2006
Opel Corsa C (X01) 10/2000 - 07/2003
Opel Meriva A (X01 MONOCAB A) 02/2003 - 11/2005
Opel Omega B (V94) 08/1999 - 11/2003
Opel Signum (Z03) 01/2003 - 08/2005
Opel Sintra (APV) 09/1996 - 04/1999
Opel Tigra (S93) 09/1994 - 12/2000
Opel Vectra B (J96) 10/1995 - 02/1999
Opel Vectra B (J96) 02/1999 - 06/2002
Opel Vectra C (Z02) 01/2002 - 08/2005
Opel Vivaro A (X83) 01/2001 - 09/2006
Opel Zafira A (T98 MONOCAB) 04/1999 - 11/2002
Opel Zafira A (T98 MONOCAB) 11/2002 - 05/2005

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

SWC
