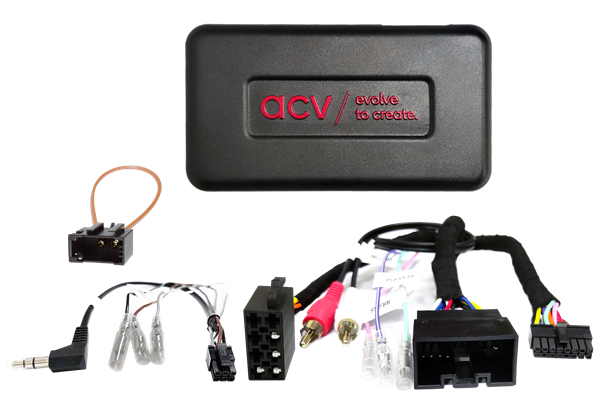

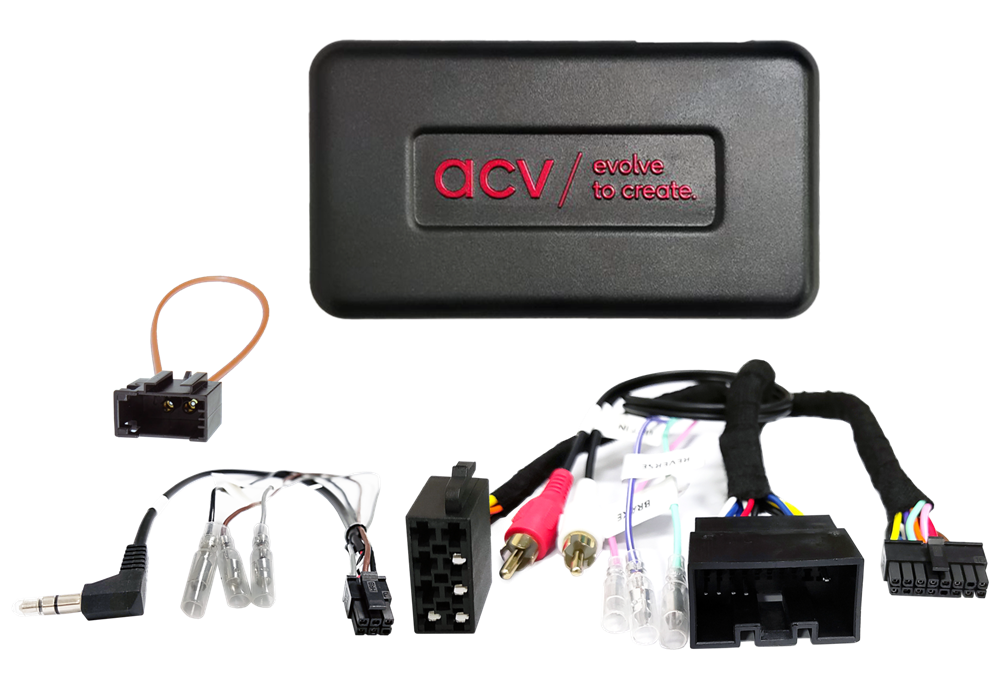

RATBETJENINGS INTERFACE LAND ROVER MED OEM MOST FORSTÆRKER (ALL INCL)

Note:

CAN Bus

connector: 20 Pin Land Rover
connector: OEM SWC > 3,5mm Jack / loose wire
connector: OEM amlified system > RCA(m) red/white

vehicles with OEM MOST amplified system

vehicle settings not supported
date/time settings not supported
OEM Display not supported Land Rover start logo is displayed

fader function not supported:
RCA(m) > front preamp output retrofit HU

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

Land Rover Discovery IV (LA) 09/2009 - 11/2013
Land Rover Range Rover Sport I (LS) 09/2009 - 08/2013

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal

load capacity outputs: 250 mA max.

current requirement more than 250 mA:
1 relay coil resistance 75 Ohm min.
2 relays coil resistance 150 Ohm min.

SWC

OEM amplified system > fader function not supported
