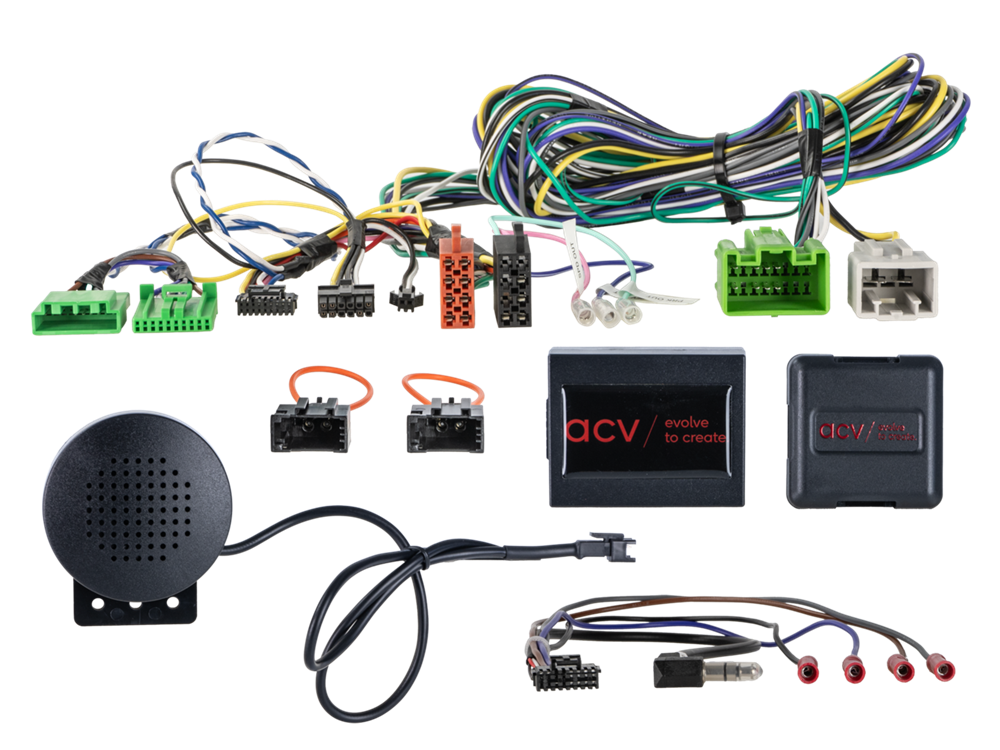

RATBETJENINGS INTERFACE VOLVO XC90 2002-2014 MED BAK-CENSORER (ALL INCL)

CAN Bus

connector: OEM amplifier bypass > ISO
connector: OEM SWC > 3,5mm Jack / loose wire
connector: OEM display > T-harness
connector: OEM amplifier > Fibre optic loop(f) MOST-ring

perform installation to prevent CAN bus errors completely without voltage and without activating the ignition

vehicles with OEM amplifier under passenger seat
vehicles with PDC rear*

verhicle without PDC front

OEM amplifier bypass:
speaker front/rear supported
speaker center not supported
subwoofer not supported

vehicles with OEM tuner silverbox located in the trunk new antenna necessary:
On-Glass antenna AM/FM DIN(m) 12V external power > item: 151000-04
On-glass antenna AM/FM Fakra Z(f) 12V external > item: 151000-18
On-glass antenna AM/FM DIN(m) 12V external > item: 152000-38

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

Volvo XC90 (C) 07/2002 - 09/2004
Volvo XC90 (C) 09/2004 - 05/2006
Volvo XC90 (C) 05/2006 - 09/2011
Volvo XC90 (C) 12/2011 - 07/2014

The following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal

load capacity outputs: 250 mA max.

current requirement more than 250 mA:
1 relay coil resistance 75 Ohm min.
2 relays coil resistance 150 Ohm min.

SWC

PDC function is not guaranteed
