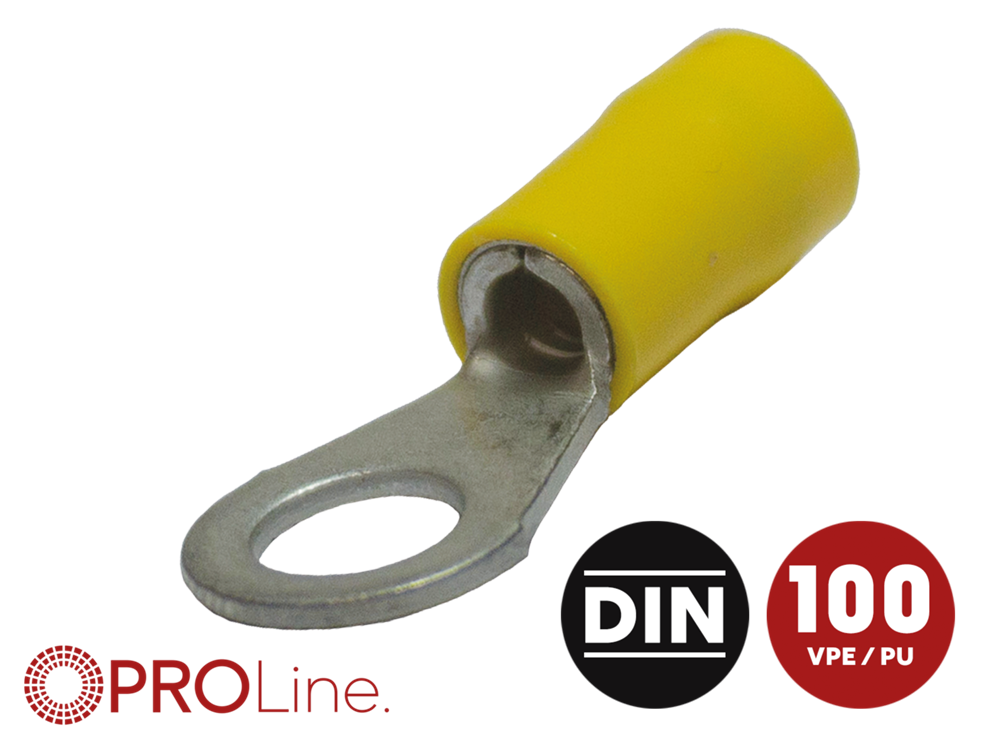

Varenr.: 346550-3-0-p
På lager hos vores leverandør
cable diameter: 4,0 mm² - 6,0 mm²
cable diameter: 12 - 10 AWG
Technical data:
DIN 46234
length: 28 mm
length to ring centre: 22,5 mm
ring opening: 6,5 mm
ring wide: 11,0 mm
diameter cable entry: 6,7 mm² max.
diameter strand: 3,4 mm² max.
material: copper electro tin plated
insulation: vinyl PVC
operating temperature: -10 °C - 75 °C
electrical current: 600V max.
electrical rating: 48A max.
REACH and RoHS compliant
Content:
100 pieces
