Varenr.: 340035-3-5-p
På lager hos vores leverandør

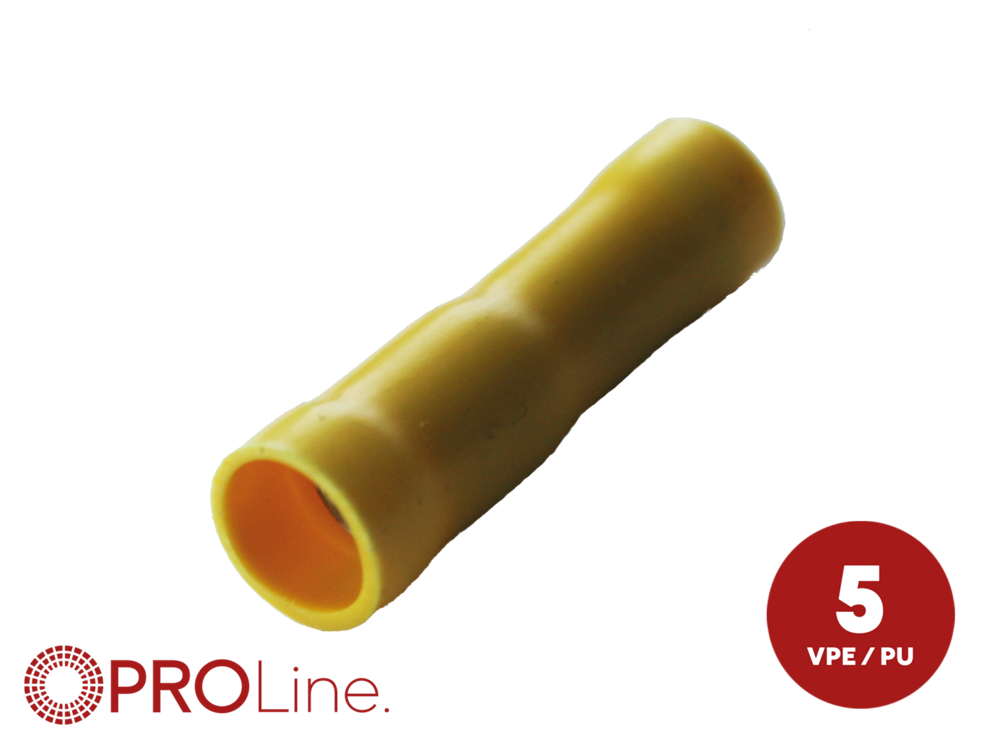

female bullet disconnector(f) 4,0 mm² - 6,0 mm² / 4,9 mm brass electro tin plated
cable diameter: 4,0 mm² - 6,0 mm²
cable diameter: 12 - 10 AWG

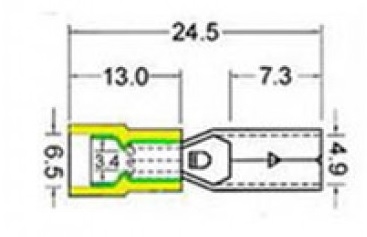

Technical data:
length: 28,5 mm
diameter socket: 4,9 mm
diameter cable entry: 6,3 mm² max.
diameter strand: 3,4 mm² max.
material: brass electro tin plated
insulation: vinyl PVC
operating temperature: -10 °C - 75 °C max.
electrical current: 300V max.
electrical rating: 24A max.
REACH and RoHS compliant
UL-listed
Content:
5 pieces
