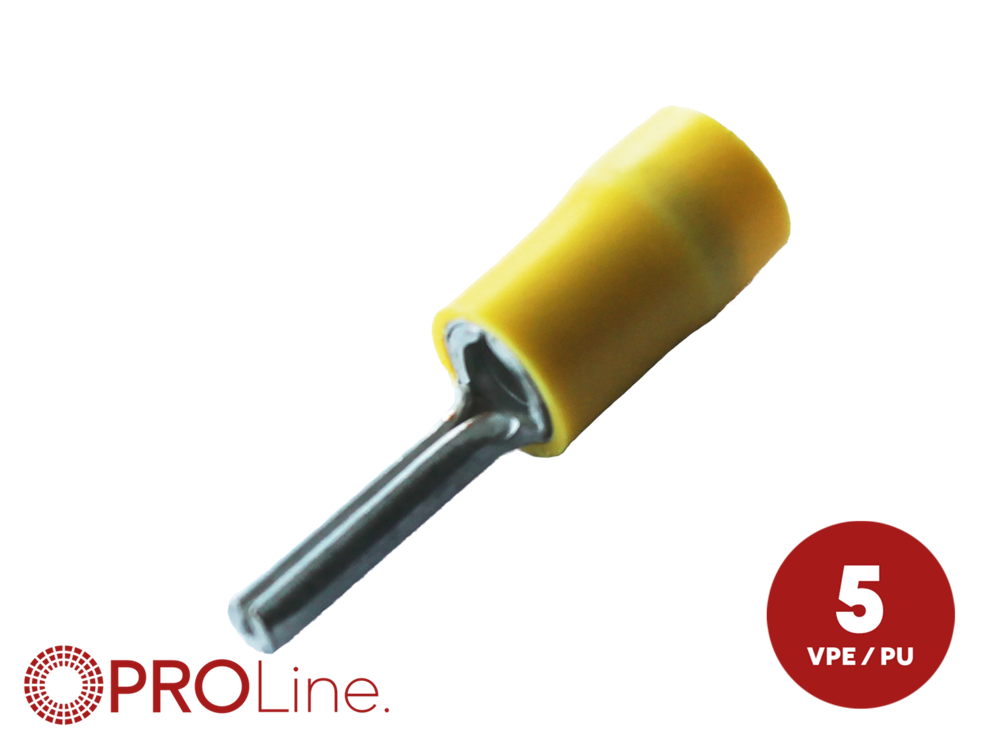

STIFT KABELSKO GUL 4,0-6,0MM² (5 STK. I BLISTER)

Pin terminal yellow

Vinyl PVC pin terminal 4,0 mm² - 6,0 mm² copper electro tin plated
Use case:

cable diameter: 4,0 mm² - 4,0 mm²
cable diameter: 12 - 10 AWG

Technical data:

length: 26,0 mm
length pin: 14,0 mm
diameter pin: 2,8 mm
diameter cable entry: 6,7 mm² max.
diameter strand: 3,4 mm² max.

material: copper electro tin plated
insulation: vinyl PVC
operating temperature: -10 °C - 75 °C max.
electrical current: 600V max.
electrical rating: 48A max.

REACH and RoHS compliant

Content:

5 pieces
