Varenr.: 340016-1-5-p
På lager hos vores leverandør

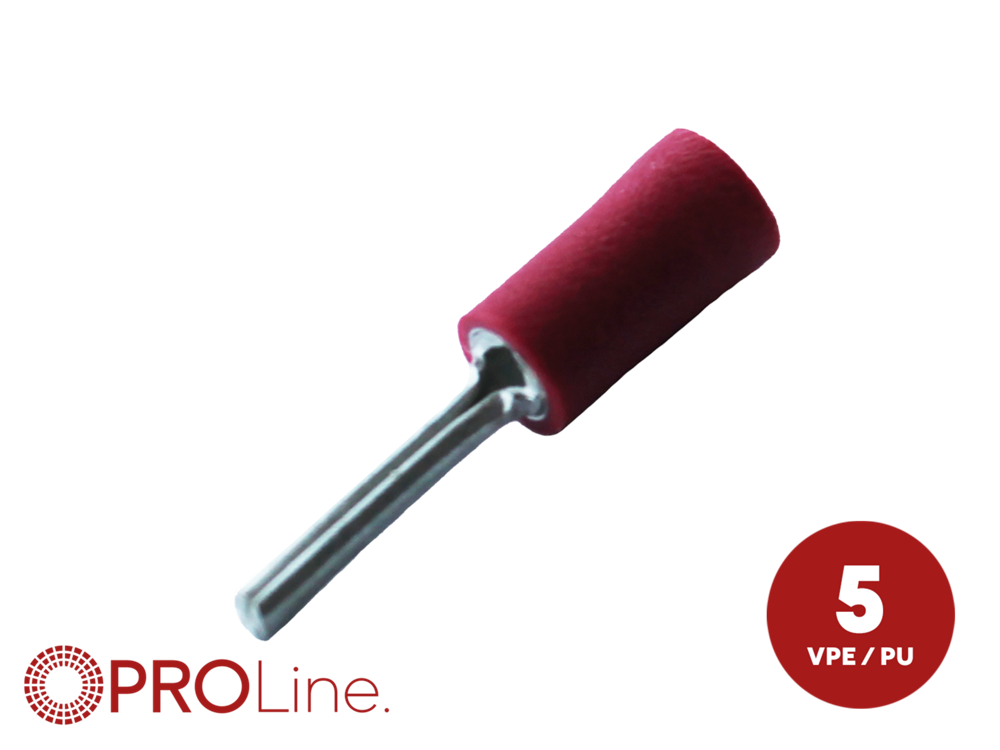

Pin terminal RED
Vinyl PVC pin terminal 0,5 mm² - 1,5 mm² copper electro tin plated
Use case:
cable diameter: 0,5 mm² - 1,5 mm²
cable diameter: 22 - 16 AWG
Technical data:
length: 21,8 mm
length pin: 12,0 mm
diameter cable entry: 4,3 mm² max.
diameter strand: 1,7 mm² max.
material: copper electro tin plated
insulation: vinyl PVC
operating temperature: -10 °C - 75 °C max.
electrical current: 600V max.
electrical rating: 19A max.
REACH and RoHS compliant
Content:
5 pieces
