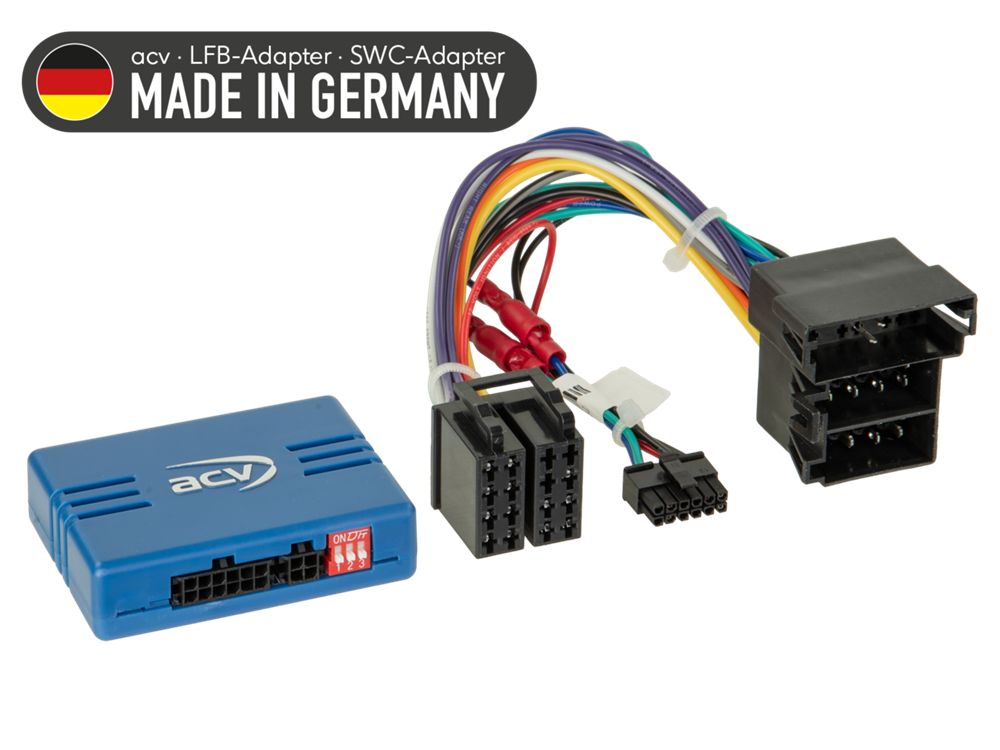

RAT INTERFACE TIL FIAT/PEUGEOT/OPEL/CITROEN 2014> M/ISO

Interface der muliggøre tilslutning af eftermarkedsradio til bilens originale ratbetjening.
Det gør det muligt at styre primær funktioner på radioen.

Passer til følgende modeller:
analog

connector: ISO / Mini ISO

vehicles with open dash
vehicles with +12V ignition and analog SWC in Mini ISO connector Pin 10/11/12 SWC1/GND/SWC2

vehicles without OEM HU

vehicles with Daiichi OEM HU direct wired coloured cables:

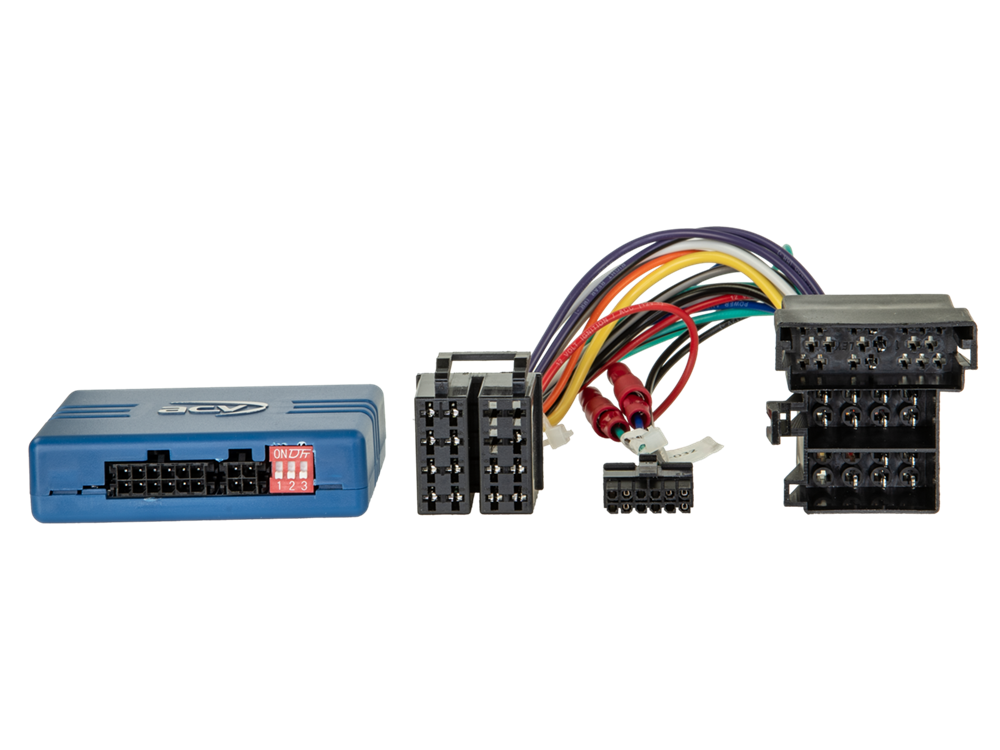

check analog signals with OEM device before installation > item picture 2

Pin 3: GND park brake signal
Pin 4 speed pulse signal
Pin 5: +12V illumination clamp 58
Pin 8: SWC GND
Pin 9: Key 1 > green
Pin 10: Key 2 > blue
Pin 19: +12V reverse gear signal
Pin 28: GND mute signal
Pin 42: +12V ignition clamp 15

Vehicle application:

Citroen
Citroen Jumper (250) 05/2014 - 2023
Citroen Relay (250) 05/2014 - 2023

Fiat
Fiat Ducato (ZFA 250) 05/2014 - 11/2021

Opel
Opel Movano Cargo C (Y) 10/2021 - 2023

Peugeot
Peugeot Boxer (Y) 09/2014 - 2023

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.
Der skal bruges et af nedennævnte kabler
