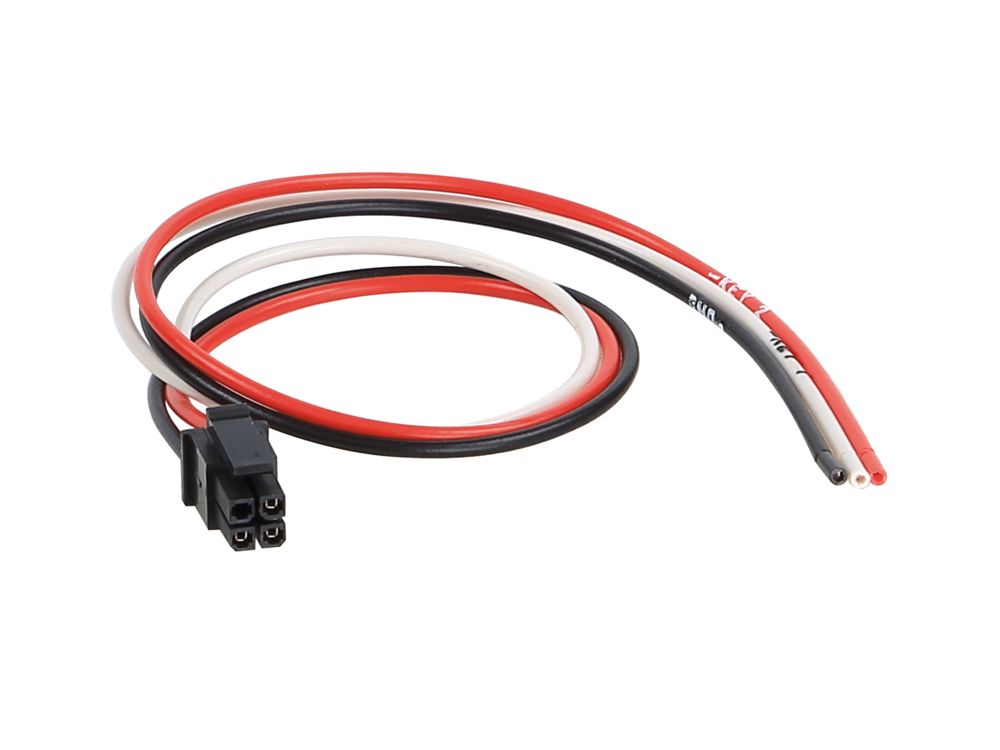

RADIOKABEL BLAUPUNKT/KINA/ESX TIL ACV CX401 OG 42a RATBETJENINGER

Radiokabel til radioer med 2 eller 3 løse ledninger, med 4 pin micro molex. passer til cx401 og 42a ratbetjeninger. Husk at indstille dipswitch på ratbetjeningen

Radio specific lead 42a / 42cx401 > Blaupunkt / China HU / ESX / Kenwood / Snooper

HU manufacturers use different variants for connecting a steering wheel remote control interface.

Depending on the manufacturer and device, single-cable controls, two-cable and multi-cable controls as well as jack controls can be used.

The connection variant can be found in the manual of the HU manufacturer.

All connections must be done before connecting the interface to the vehicle.

If necessary, the SWC function must also be programmed in a HU menu according to the HU manufacturer manual.

Check for function before final assembly.

Note:

connector: 4 Pin Molex > Key1 / Key2 / GND connector

SWC radio specific lead 42cx401 SWC interface 42a-xxxx-xxx
dip switches (ON/OFF)

Atoto retrofit radios not supported

Use case:

China HU Key1 / Key2 / (GND) connector
Blaupunkt 2010> Key1 / Key2 / (GND) connector
ESX Key1 / Key2 connector
Kenwood 2020> Key1 / Key2 / GND connector
Snooper Key1 / Key2 connector

DIP switches 42cx401:

Blaupunkt 2010> > OFF/ON/OFF (OFF/ON/ON)
China HU > OFF/ON/OFF
ESX > OFF/ON/OFF
Kenwood 2020> > OFF/ON/OFF (OFF/ON/ON)
Snooper > OFF/ON/OFF
