ACV KAMERA FORD TRANSIT 2006 > 2014

Rear view camera

Ford Transit New Line (FDF6) 07/2006 - 02/2008
Ford Transit Kombi (FDE6) 07/2006 - 03/2014
Ford Transit Tourneo (FSE6) 07/2006 - 03/2014
Ford Transit Euroline (FZE6) 07/2006 - 03/2014
Ford Transit Nugget (FBE6) 07/2006 - 03/2014

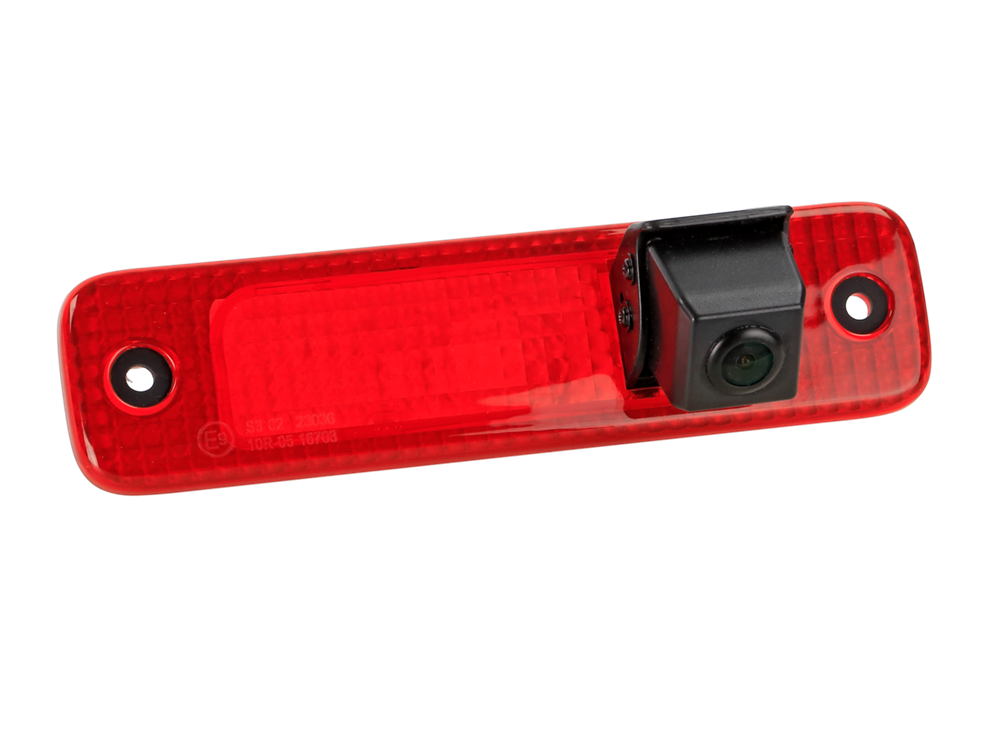

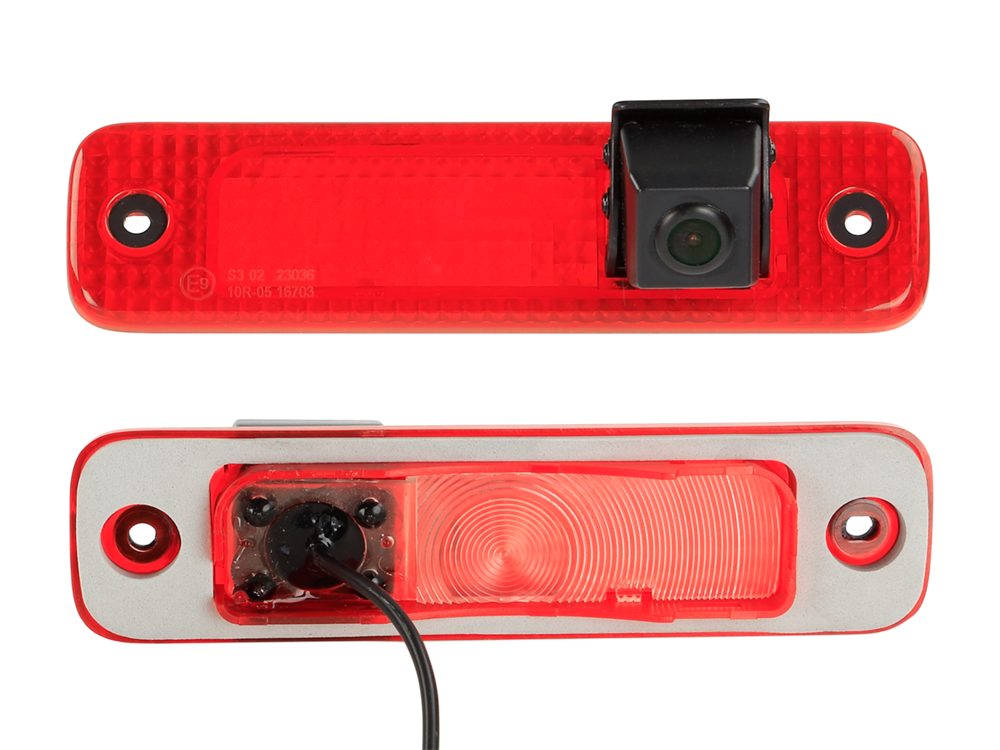

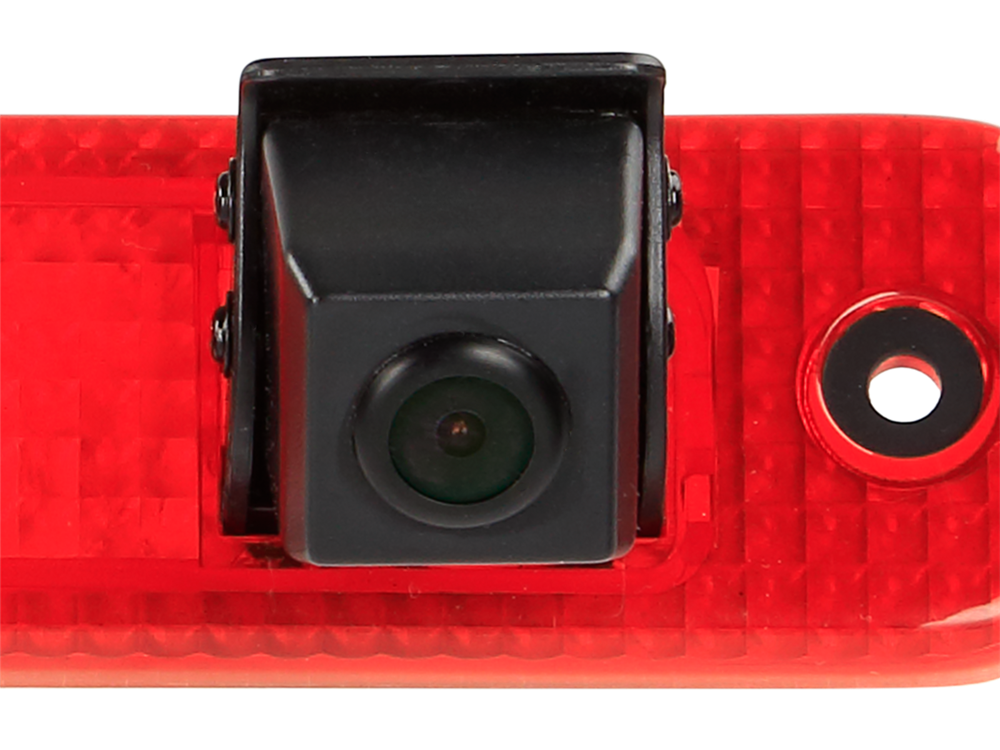

to replace the OEM 3rd brake ligh
with guiding lines, adjustable view angle

Note:

all acv cameras are suitable for +12V continuous operation

connection:
red +12V switched load-stable fused
black ground car body direct

Product characteristic:

Design: plastic
Color: black / red
Extras: guiding lines via jumper, adjustable view angle
Image sensor: 1/3" CMOS
TV system: NTSC colour
Effective pixels: 976 x 592
Lens: 2,1mm
Min.Lux: 0,1 Lux
Resolution: 600 TV lines
View angle: horizontal 115° vertikal 75°
IP Rating: IP68
Terminal: 4 pin plug(f)
Power supply: DC 12V
Current consumption: 100mA max.
Operating temperature: -20°C - 70°C
Measurements: looks as OEM 3´rd brakelight
Dimensions: see OEM brake light
Outside: 157,5 mm x 40 mm
Installation dimension: 105.5 mm
Hole spacing: 131 mm
Hole diameter: Ø 5.3 mm

Pigtail at the camera:

4-pin mini plug(f) 5,2 mm with 1 jumper

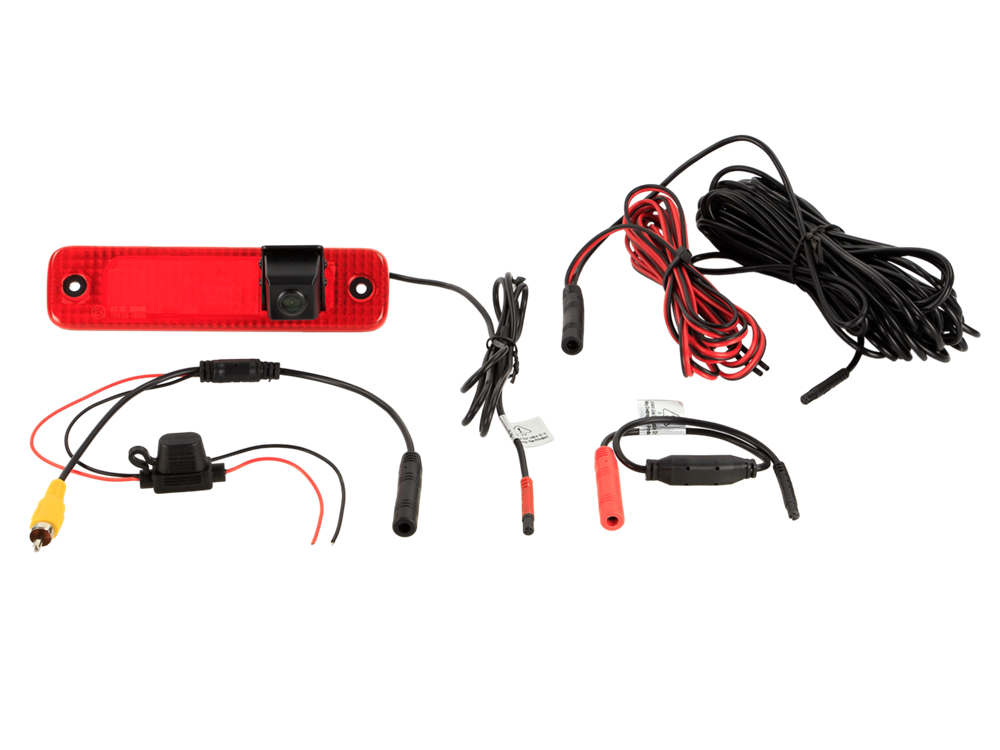

System harness:

10 meter extension (m/f) cable incl. 300 cm power wire to connect at the reverse light and inlay cable to connect at the power from the device

4-pin mini plug(f) 10mm and plug(m) 5,2 mm

20 cm power wire harness with fuse and RCA(m) video connector
