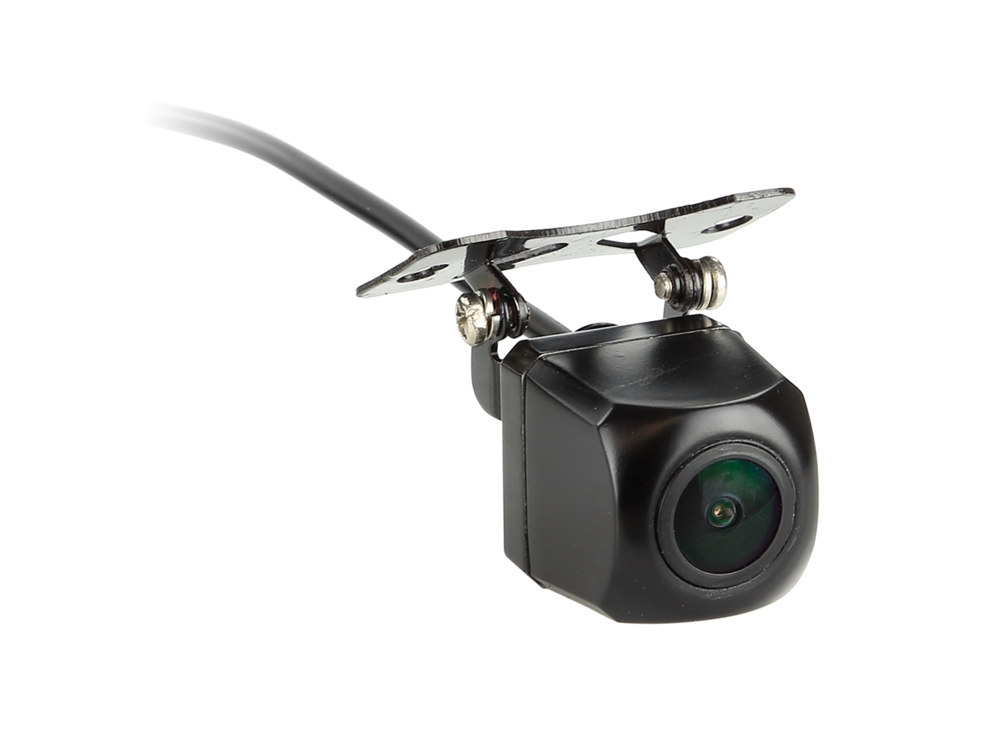

ACV UNIVERSAL BAK KAMERA

Rear view camera universal

Design: squared
Installation: sub-construction / build-up-construction

with guiding lines and mirror function

Note:

all acv cameras are suitable for +12V continuous operation

connection:
red +12V switched load-stable (fused)
black ground car body direct

Product characteristic:

Design: plastic / metal
Color: black
Extras: guiding lines and mirror function via jumper
Image sensor: 1/3" CMOS
TV system: NTSC
Effective pixels: 976 x 592
Lens: 1,9mm / F 2.0
Lux: 0,3
Resolution: 700 TV lines
Lens angle: 170° + 5°
View angle: horizontal 115° vertical 80° + 5°
IP Rating: IP 68
Terminal: 4-pin mini-plug ( male ) 5,2 mm
Power supply: 12-24Volt DC + 10%
Current consumption: 200mA
Operating temperature: -30°C - 75°C
Storage temperature: -40°C - 85°C
Measurements: L / W / H - 28.3 mm / 23.4 mm / 23.4 mm

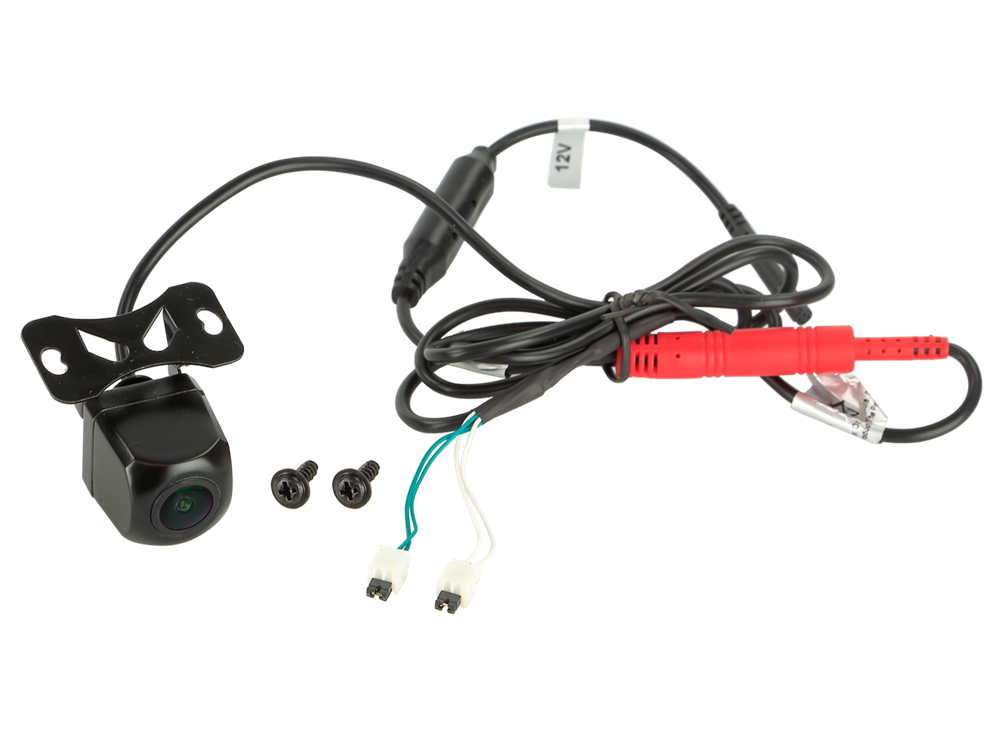

Pigtail at the camera:

1 Meter cable with 4-pin mini plug (male) 5,2 mm incl. 2 jumpers

6,5 Meter extension cable incl. 3 meter power wire to connect at the reverse light
and inlay cable to connect at the power from the device
4-pin mini plug (female) 10 mm and plug (male) 5,2 mm

0,2 Meter power wire harness incl. fuse and video connector (RCA)
