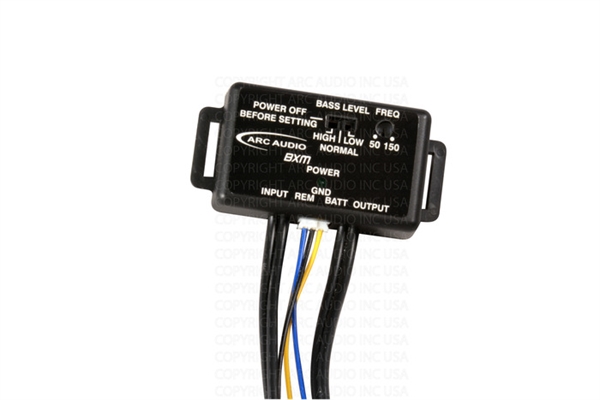

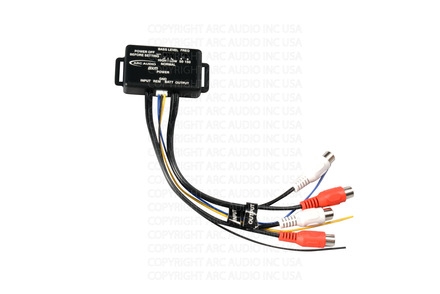

ARC AUDIO BXM, 2 KANALS HIGH-LOW MED BASSENHANCER OG REMOTE TURN ON

The ARC Audio BXM bass frequency extension module give you the power to increase the way you hear low frequencies in most any system, especially with those systems where space limitations prevent you from being able to add subwoofers or your stuck with small speakers due to vehicle design.

BX2 is a bass frequency extension technology that provides perceived bass frequency response below the low frequency cut off in an audio system.

BX2 uses the principle of the missing fundamental, which creates the sensation of low frequencies by generating a carefully calculated series of harmonics designed to simulate the auditory experience in the human ear caused by the missing fundamental pitch.

These harmonics extend the perceived frequency response up to 1.5 octaves below the speaker cutoff frequency (f3) without perceived distortion, increased peak power consumption or peak speaker excursion.

BX2 technology allows the system user to experience dramatically improved levels of system performance, sound quality and improved low frequency response by:

Increasing low frequency output and performance without causing the speakers to perform outside their physical design limitations.

The BXM uses 2 channels RCA input is capable of 1.8V RMS output sufficient to drive most any amplifier. The BXM can also be driven from any stock source unit with BTL style speaker output and not require use of the power, ground or remote turn on power leads.

Package Type Installation dongle
RCA Inputs Yes (2 channel)
Speaker Level input Yes (BTL Type required)
Max Speaker Level Input 11 Volts
RCA Outputs Yes 2 channel
RCA Output Voltage 1.8V RMS
Autosense Turn on Yes (Requires BTL Type speaker level)
