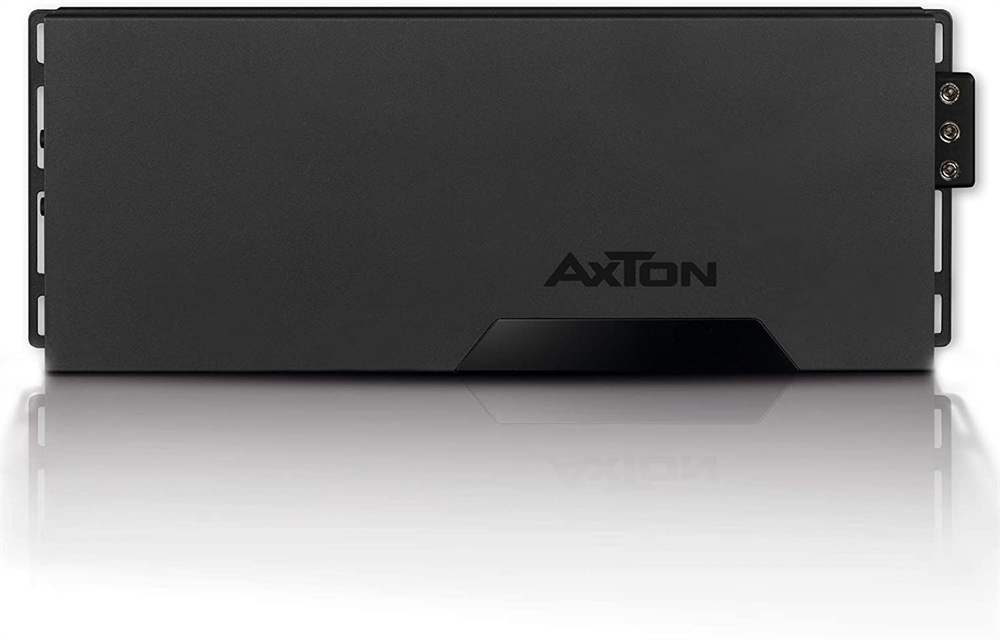

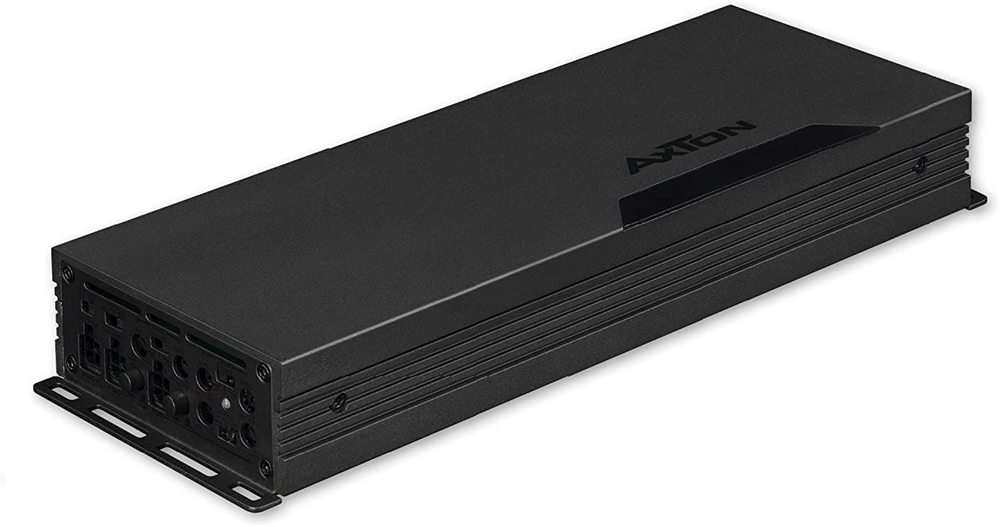

All about the A601 Digital Amplifier
If you want to upgrade your music system with a compact but powerful quality amplifier, car audio specialist AXTON has the A601 6-channel power amplifier in its range: a minimum of 10.5 cm wide and 4 cm high, this amplifier offers a lot of power in the smallest space. With convincing performance data from 6 x 100 W RMS up to 3 x 320 W RMS, it is the perfect system power amplifier for various applications. Thanks to its compact dimensions, the Class D amp can be flexibly installed in a car, motor home or caravan. The elegant, black aluminum housing is first-class processed and thoughtfully designed: Despite the compact dimensions, the massive heat sink conducts the heat specifically to the outside and thus ensures an optimal operating temperature throughout. The amplifier circuitry is designed with care, the design of the board layout is optimized for low distortion and equipped exclusively with selected components. Due to the sophisticated interaction of all components, this high-quality amplifier plays at the highest level: The A601 reproduces every piece of music with transparency, gripping dynamics and, above all, genuine joy of playing. The integrated electronic crossovers, each with 12 dB/oct. slope, are continuously adjustable from 40 - 400 Hz and can be switched as high-pass or low-pass filters. In addition, there are high-level inputs with auto-turn-on function for connection to original radios without RCA output - so the amplifier can be easily combined with factory-installed radios.
Highlights
Ultra-compact Class-D amplifier
Aluminum heat sink for optimal heat dissipation
12 dB/oct. high-pass and low-pass filter (40 - 400 Hz)
High-level/low-level input
Auto-turn-on via DC offset or music signal
Fully suitable for vehicles with automatic start/stop system
Spezifikationen
100 W x 6 @ 4 ohms (< 1 % THD / 14.4 V)
160 W x 6 @ 2 ohms (< 1 % THD / 14.4 V)
320 W x 3 @ 4 ohms (< 1 % THD / 14.4 V)
Frequency response: 10 Hz – 35 kHz
Variable input sensitivity: 0.4 – 10 V
Signal to noise ratio: > 85 dB
High pass filter: 40 – 400 Hz
Low pass filter: 40 – 400 Hz
Dimensions LxWxH: 282 x 40 x 105 mm
