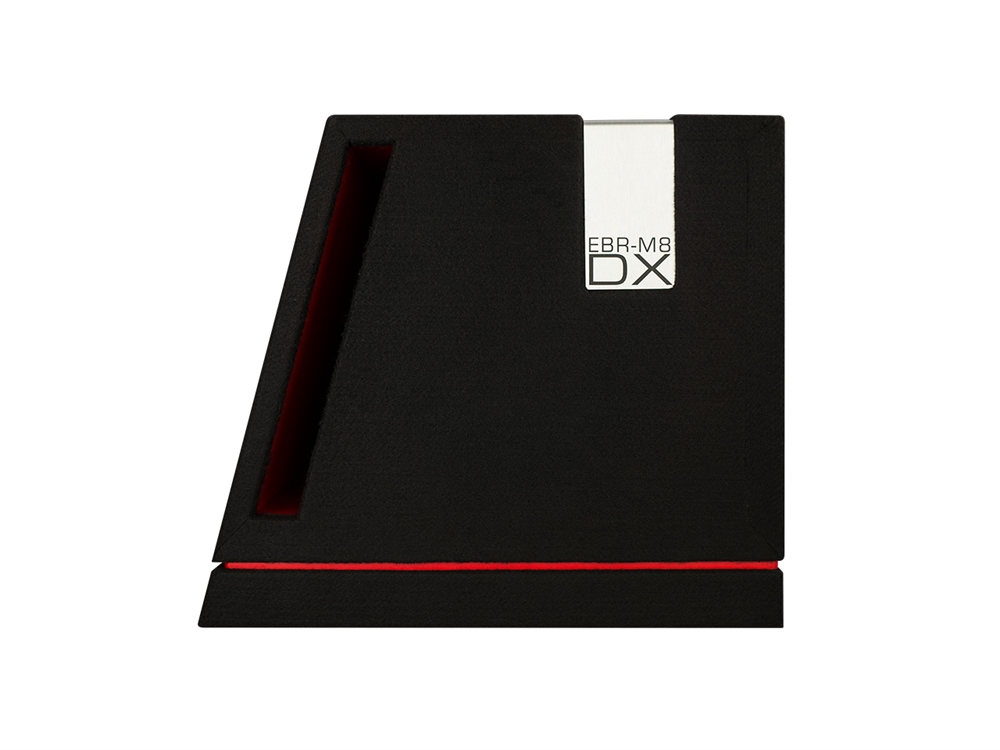

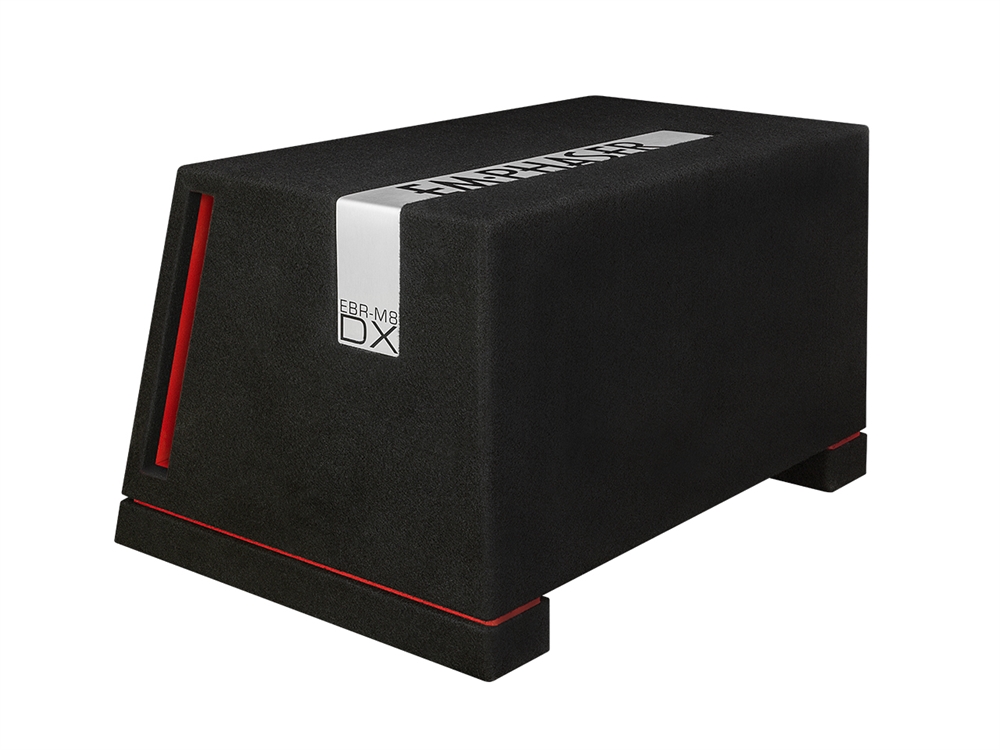

EMPHASER EBR-M8DX MONOLITH 8" SUB BOX

Monolith Bassreflex Subwoofer
The powerful EBR-M8DX and EBR-M10DX subwoofers are the latest additions to EMPHASER’s Monolith series. The design of the bass reflex enclosures already provides visual accents – the Monolith is almost sublime and forms the new focal point in the vehicle.

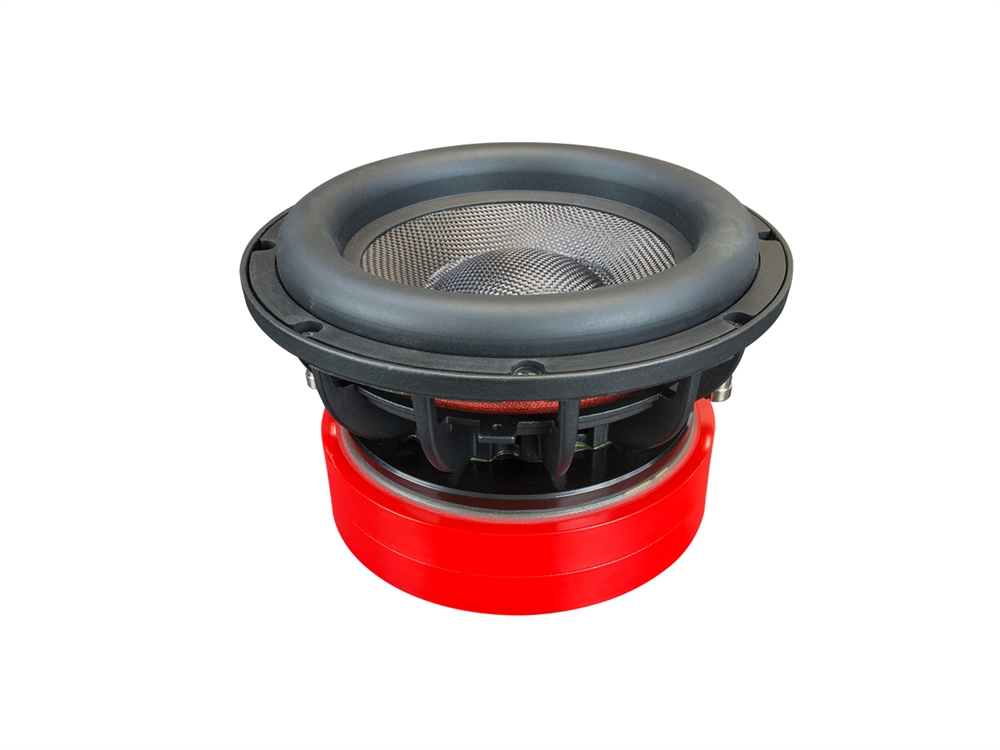

Equipped with 20 cm Monolith High-Performance Subwoofer
Bass driver with double-stacked magnet motor and 2 x 2 ohms double voice coil
Box tuning optimized for deep bass reproduction
Sturdy housing construction made of MDF
Slot Port Bass reflex with 70 cm² opening area

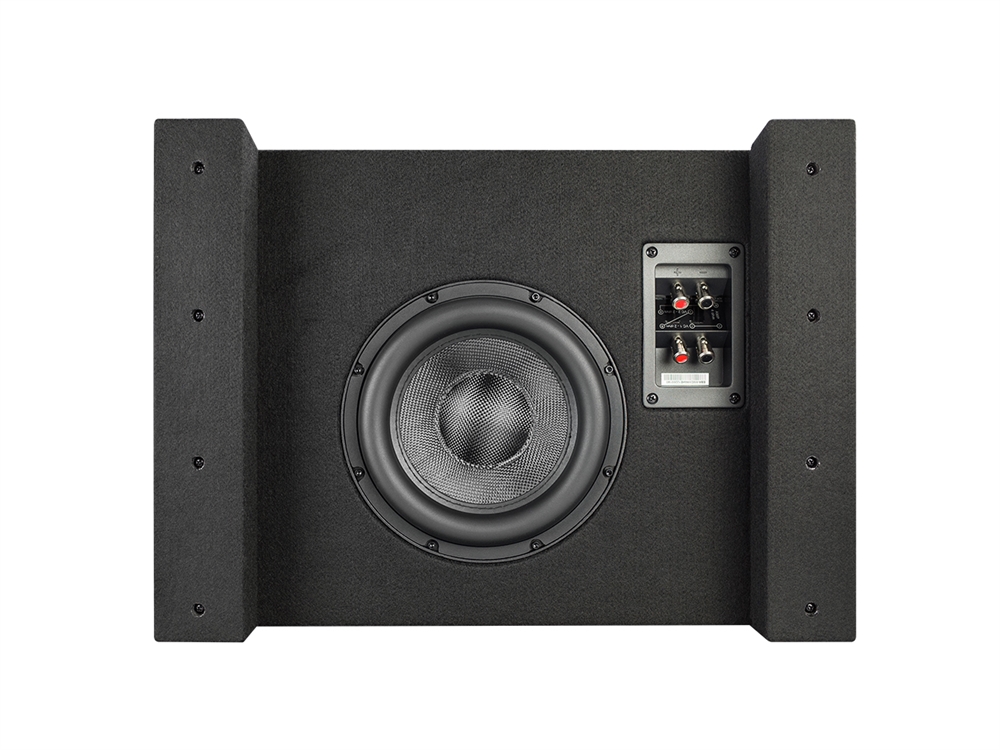

Downfire housing with space-saving rear wall slope
Connection panel with push terminals
Brushed Aluminum strip with EMPHASER logo and product name
bestückt mit ∅ 20 cm Woofer
Maximale Belastbarkeit: 1000 W
Dauerbelastbarkeit: 500 W
Wirkungsgrad parallel (1W/1m): 90 dB
Frequenzgang (-3 dB im Fahrzeug): 30 – 160 Hz
Nennimpedanz: 2 x 2 Ohm
Abmessungen: 480 x 310 x 360/280 mm
