ETON ONYX 80 HIGH-END 3" MELLEMTONER

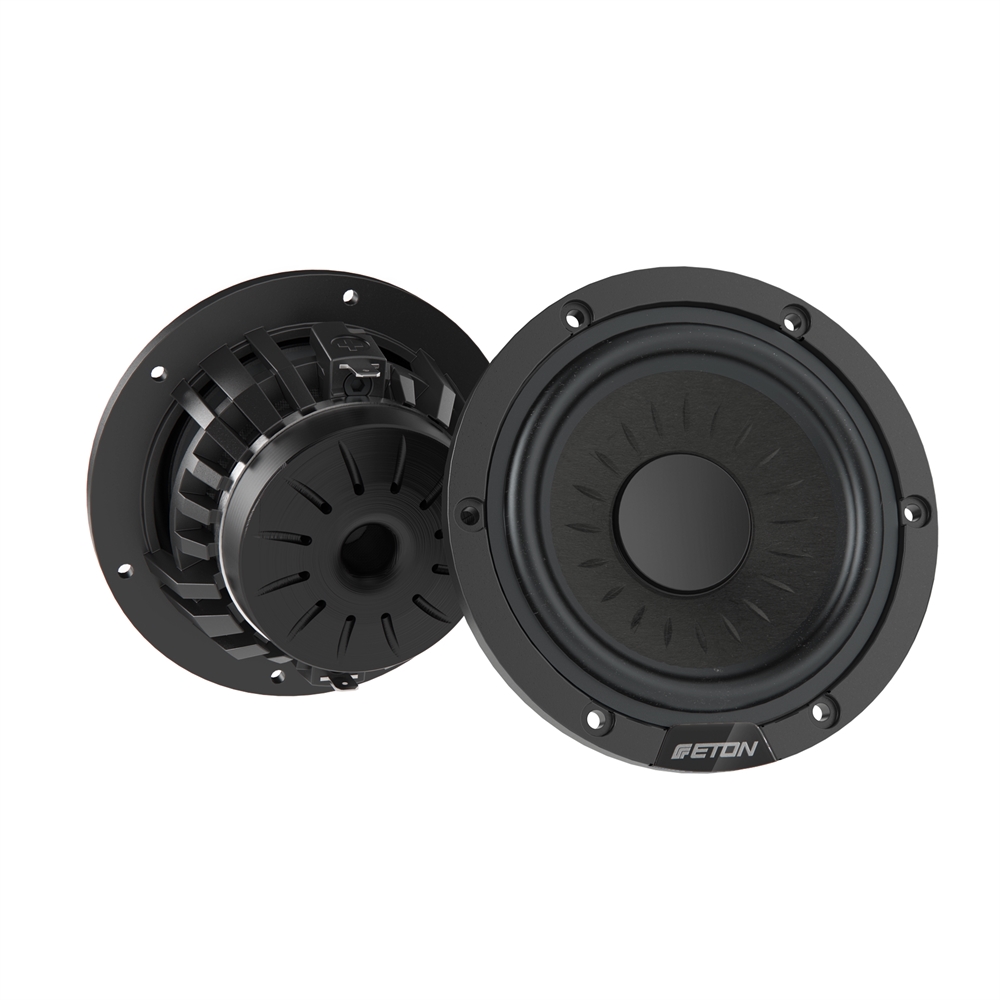

ONYX 80 – High-end 80 mm (3") midrange driver with ribbed paper cone and anodized aluminum dustcap. The powerful neodymium drive in combination with the torsionally stiff high-end aluminum die-cast basket create a midrange experience in a class of its own! The optimized ventilation technology of the specially developed base plate and the revolutionary basket design eliminate airflow noise and allow optimal cooling of the system. This is particularly noticeable at high levels: 88 dB characteristic sound pressure, 4 ohms impedance and a nominal / music power handling of 25 / 40 W speak for themselves! Development and production Made in Germany!

TECHNICAL DATA

Midrange 80 mm (3")
Impedance 4 Ohm
Nominal / music power 25/40 W
Sound pressure level 88 dB
Outer diameter 94 mm
Cut-out diameter 77 mm
Installation depth 42 mm
