ETON PW12 2x2 OHM

Varenr.: ET-PW12
  • PRIS ER PR. Stk
    Pris ved køb af 1 Stk,1.349,00  DKK
På lager hos vores leverandør

Download manual

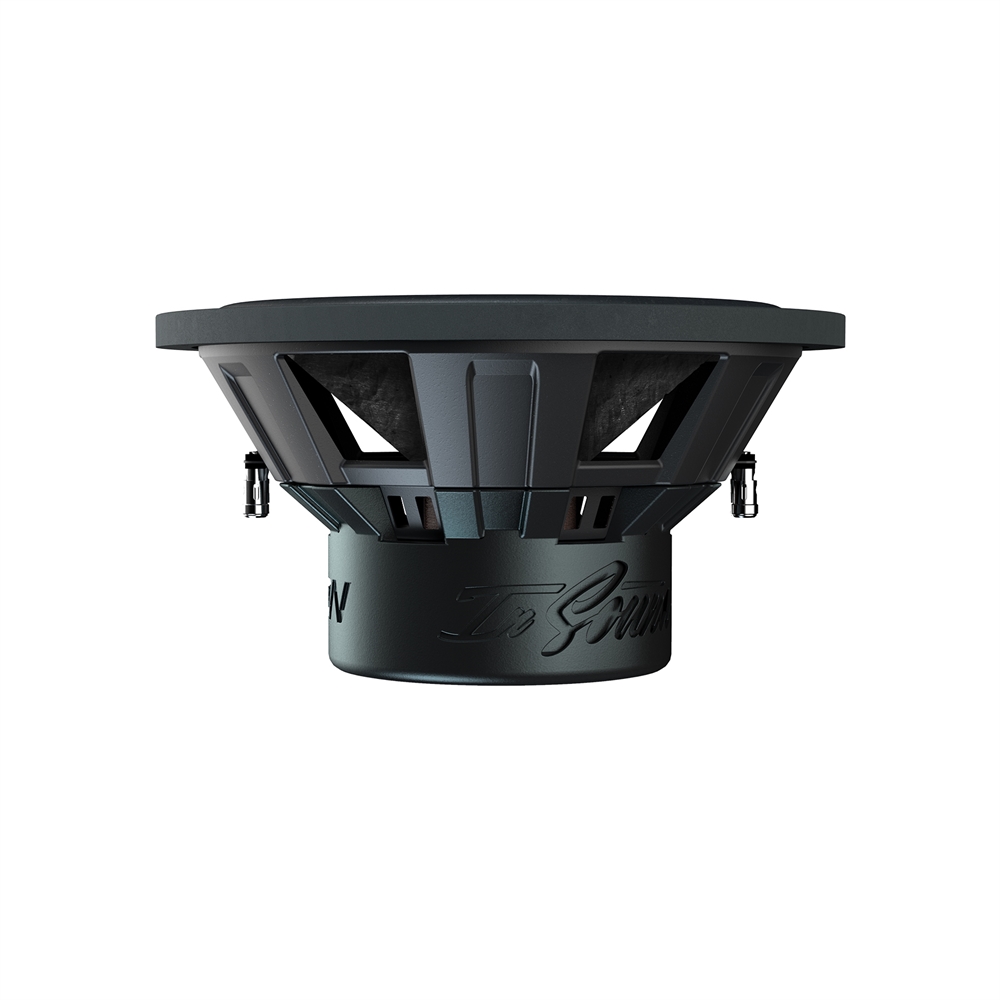

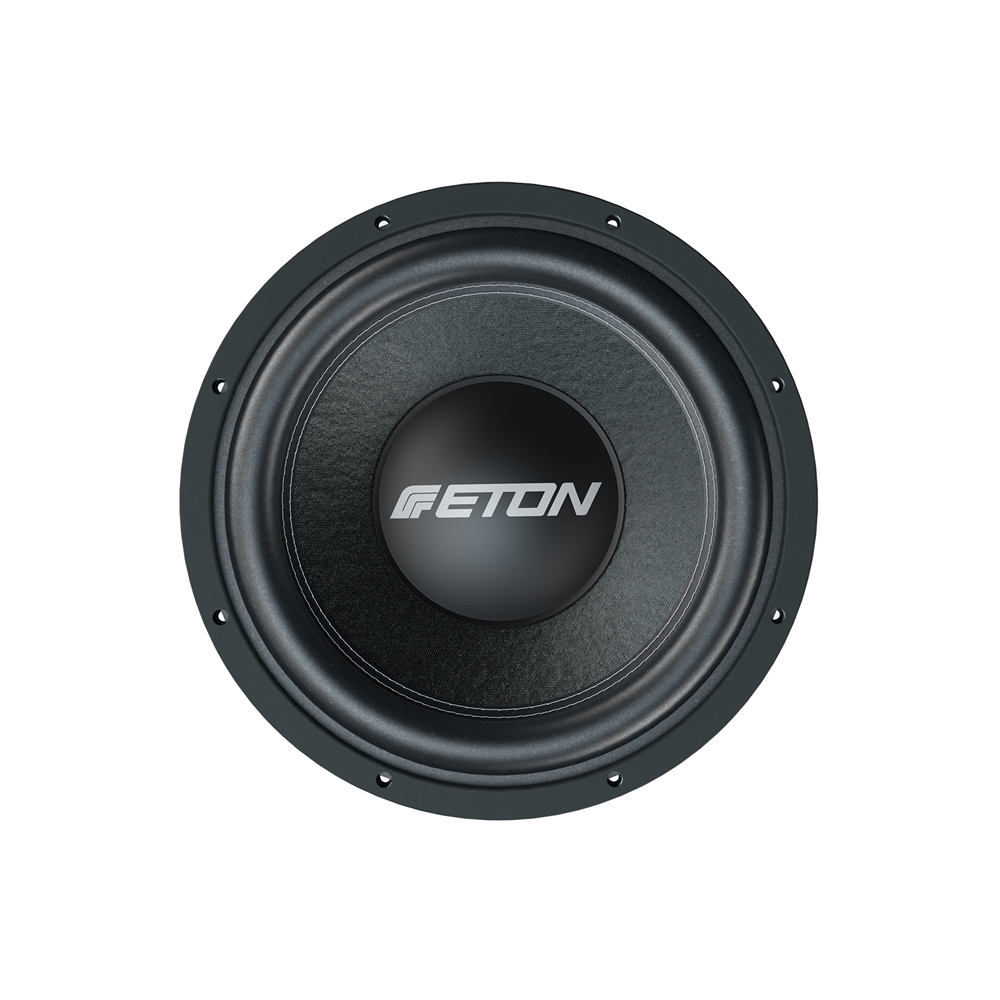

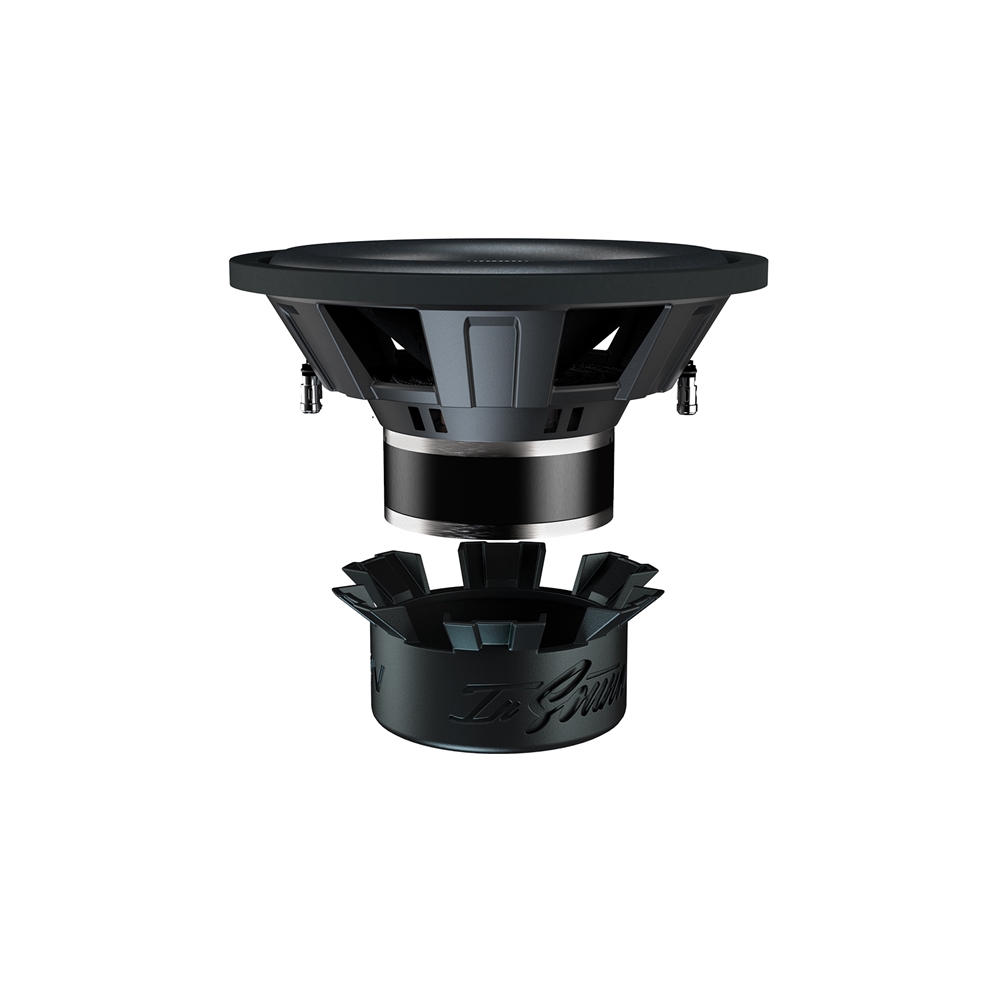

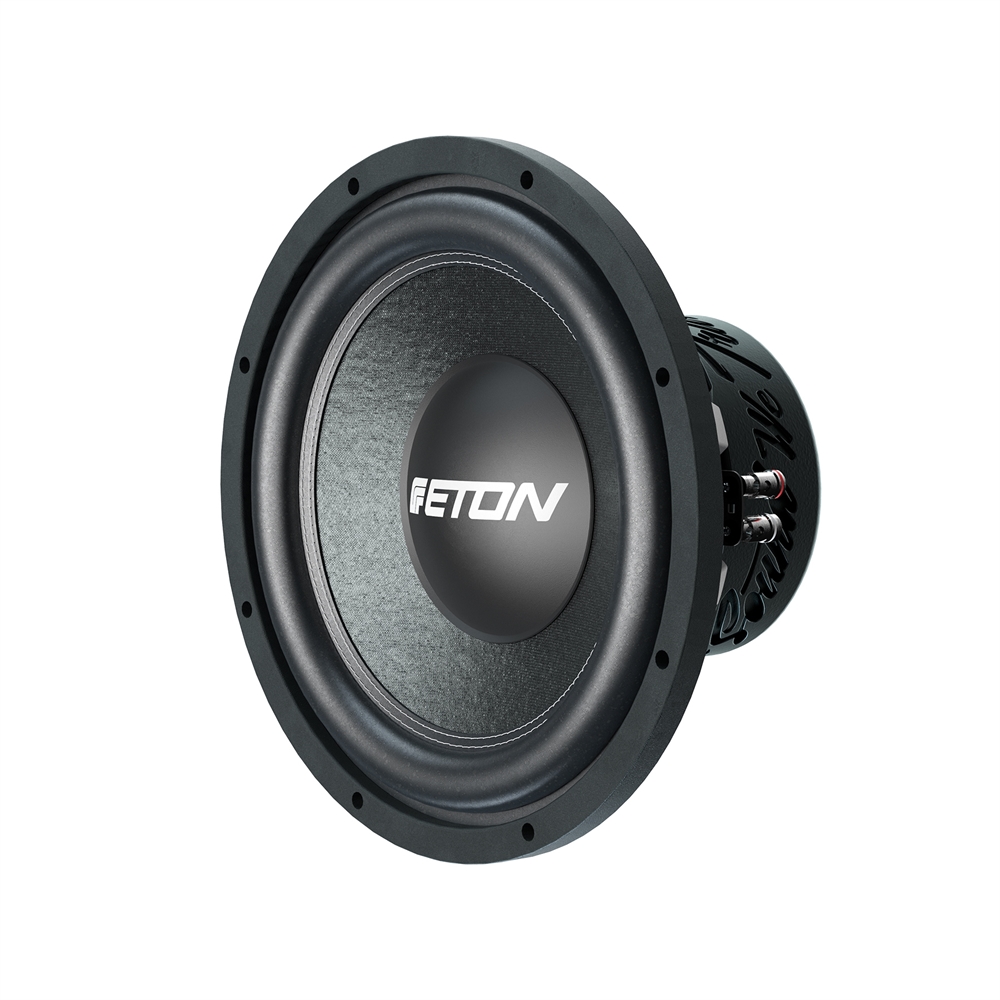

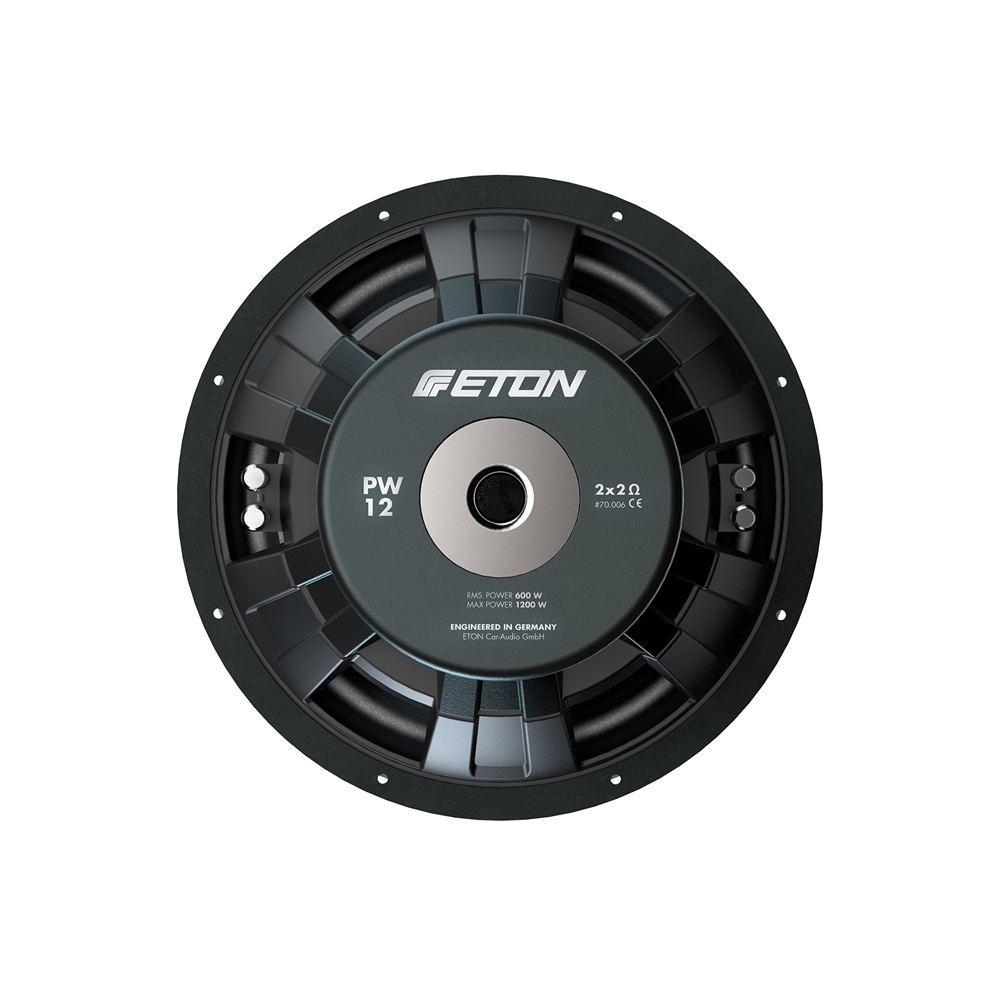

300 mm (12 inch) subwoofer in powder coated metal basket with loadable 64 mm aluminium dual voice coil, pressed and stiffened paper cone with long excursion surround, 2 x 2 ohms impedance, 600 W RMS, 1200 W music power handling, large core hole for optimum ventilation, strong ferrite magnet with silicone coating/protection, 326 x 152 mm (DxH), 87 dB characteristic sound pressure level, 7.0 kg.

TECHNICAL DATA

Nominal impedance Zn (Ohm) 2 x 2 Ohm
DC resistance Re 3.8 Ohm
Resonance frequency fs 1W / TSP (Hz) 31.6
Total Q QTS 0.462
Electrical Q QES 0.502
Mechanical Q QMS 5.734
Equivalent air volume of suspension VAS (dm3) 43.720
Force factor BL x l (Tm) 17.912
Suspension compliance CMS (mm/N) 0.121
Total moving mass MMS (g) 208
Voice coil diameter 63
Voice coil inductance Le (mH) @ 10 kHz 1.498
Effective piston area SD (cm2) 502
SPL (dB) *bei 1 W / 1m 87.0
Rated power / music power (W) 600/1200 W
