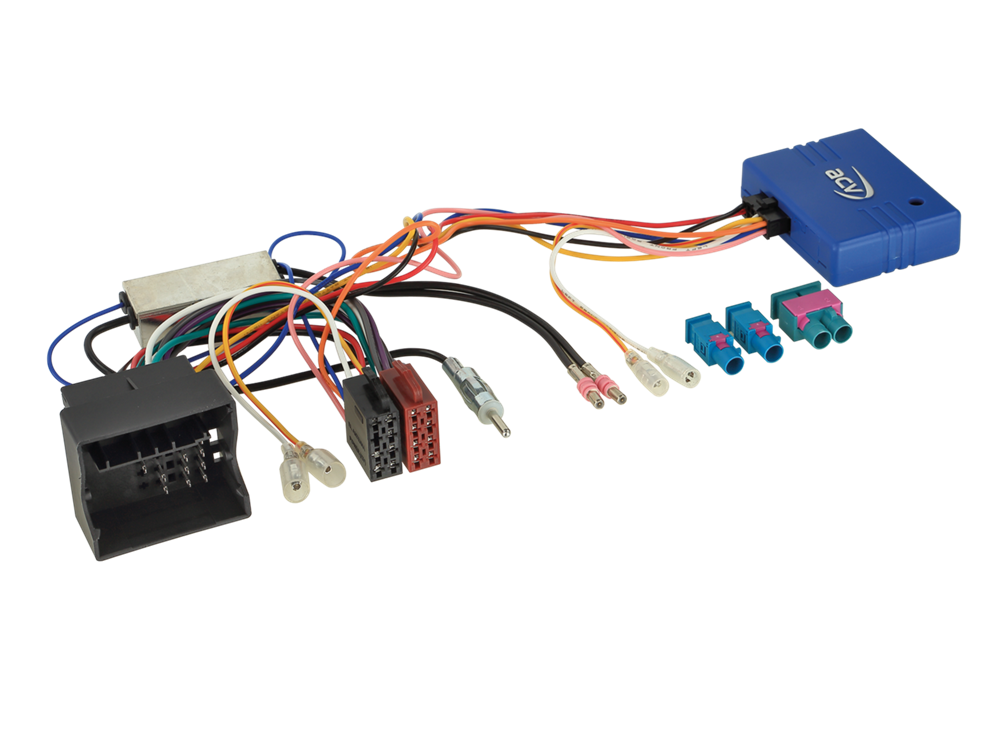

ISO/CAN-BUS KIT VAG 40 PIN QUADLOCK MED 2 ANTENNER (FM-RADIO/TÆNDNING/LYS/BAK-GEAR/SPEED)

Note:

CAN-Bus

connector 40 Pin Quadlock
connector: Fakra > Fakra(Set) phantom power > DIN

outputs: 1A max. current

Audi vehicles with 2-DIN OEM HU
Audi vehicles A1 with Chorus DIN OEM HU with monochrome display
Audi vehicles with OEM amplified system > additional item: 13-1424-25

Seat vehicles Exeo with OEM amplified systems additional item: 13-1424-25

VW vehicles T5 / Touareg with OEM amplified systems additional item: 13-1424-26
VW vehicles Crafter /Mercedes Sprinter > item: 12-1196-45-15

Vehicle application:

Audi
Audi A1 2010 - 2019*
Audi A3 2003 - 2013
Audi A4 2000 - 2009
Audi A5 2007 - 2010
Audi R8 2007 - 2015
Audi Q3 2011 - 2018
Audi Q5 2008 - 2016
Audi TT 2006 - 2014****

Seat
Seat Alhambra 2010 - 2015
Seat Altea 2004 - 2015
Seat Exeo 2008 - 2013
Seat Ibiza 2008 - 2015
Seat Leon 2005 - 2012
Seat Mii 2011 - 2016***
Seat Toledo 2005 - 2016

Skoda
Skoda Citigo 2011 - 2016***
Skoda Octavia II 2003 - 2013
Skoda Rapid 2012 - 2015
Skoda Roomster 2006 - 2015
Skoda Superb 2008 - 2015
Skoda Fabia 2007 - 2014
Skoda Yeti 2009 - 2014

VW
VW Amarok 2010 - 2016
VW Beetle 2011 - 2016
VW Caddy 2003 - 2014
VW Caravelle 2003 - 2015
VW CC 2010 - 2014
VW EOS 2006 - 2012
VW Fox 2005 - 2011
VW Golf 2003 - 2013
VW Jetta 2005 - 2015
VW Multivan 2003 -2015
VW Passat 2005 - 2014
VW Polo 2005 - 2014
VW Phaeton (D1) 2007 - 2010
VW Scirocco 2008 - 2014
VW Sharan 2010 - 2014
VW T5 2003 - 2015
VW T6 2015 - 2019*/**
VW Tiguan (5N) 2007 - 2016
VW Touran 2003 - 2015
VW Touareg 2003 - 2010
VW UP 2011 - 2016***

The following signals are provided:

Ignition
Illumination
Reverse
Speedpulse

OEM amplified system CAN activation Seat/Skoda/VW

*vehicles with Concert OEM HU with dash mount colour monitor > item 12-1328-46-15
**vehicles without MIB PQ HU
***vehicles without OEM amplified system
****OEM amplified system CAN activation
