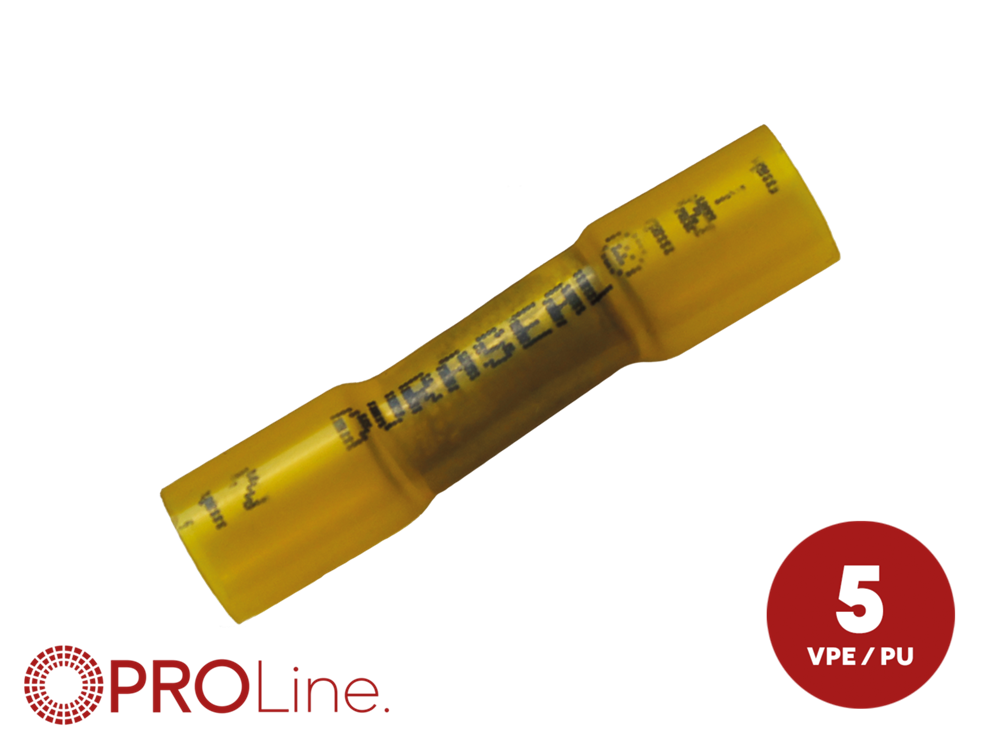

Varenr.: 347265-1-5-p
På lager hos vores leverandør
cable diameter: 4,0 mm² - 6,0 mm²
cable diameter: 12 - 10 AWG
Technical data:
diameter cable entry: 6,8 mm² max.
drop length: 11,0 mm to centre stop
material: copper tin plated
insulation: Nylon (PA 66) heat shrinking with internal adhesive
shrink ratio: 3 : 1
shrink temperature: 180° min.
operating temperature: -55°C - 125°C max.
electrical current: 600V max.
Solvent resistance:
isopropyl alcohol
trichloroethylene
gasoline
battery acid
diesel fuel
motor oil
antifreeze
brake fluid
5% salt water
REACH and RoHS compliant
UL and CUL listed 91J4
Lloyds listed 65 247 HH 02-93
Waterproof
Not flame retardant
Content:
5 pieces
