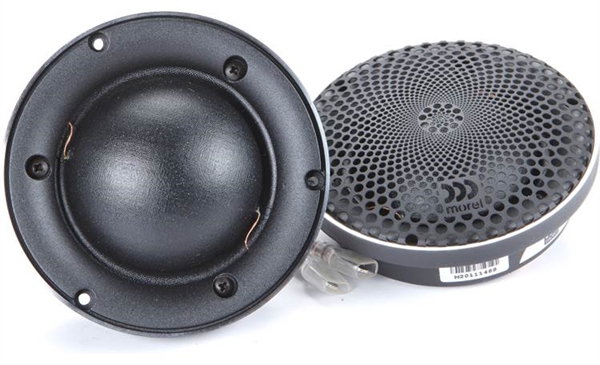

MOREL CDM 700 HYBRID MELLEMTONER

Hybrid CDM 700
The CDM700 is a very shallow 2.1” soft dome midrange incorporating a 2.1” extremely low mass aluminum Hexatech voice coil allows for very efficient cooling of the coil. The Neo magnet motor system, encapsulating the voice coil structure, forms a very large venting pole with a Morel’s C.A.R filter to create a very effective damped rear chamber. This typology produces very low resonance frequency, low distortion and high power handling. The CDM 700 acoustic attributes and mechanical design can be easily installed in various locations in the car.

Specifications
Reference Series Hybrid CDM 700
Configuration Midrange
Driver Size 88 mm
Voice Coil Size 54 mm
Frequency Resp. 600 Hz - 6,000 Hz
Power Handling 100 W/RMS 300 W/Peak
Sensitivity 90 dB
Impedance 8ohm
Speaker Grills Lotus Grills Included
