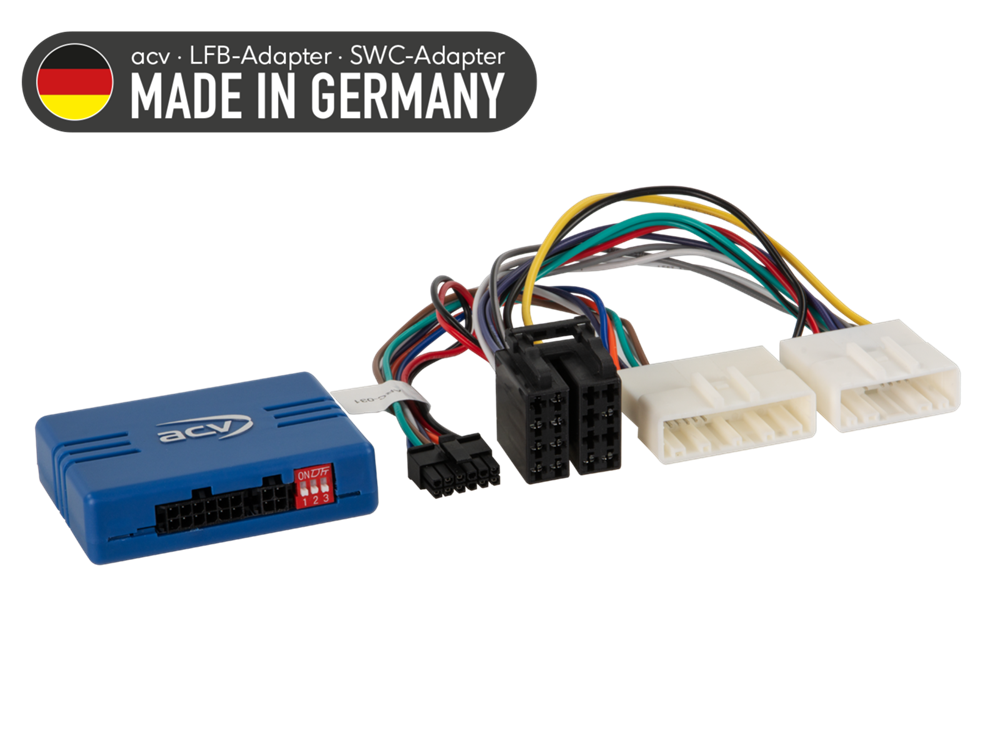

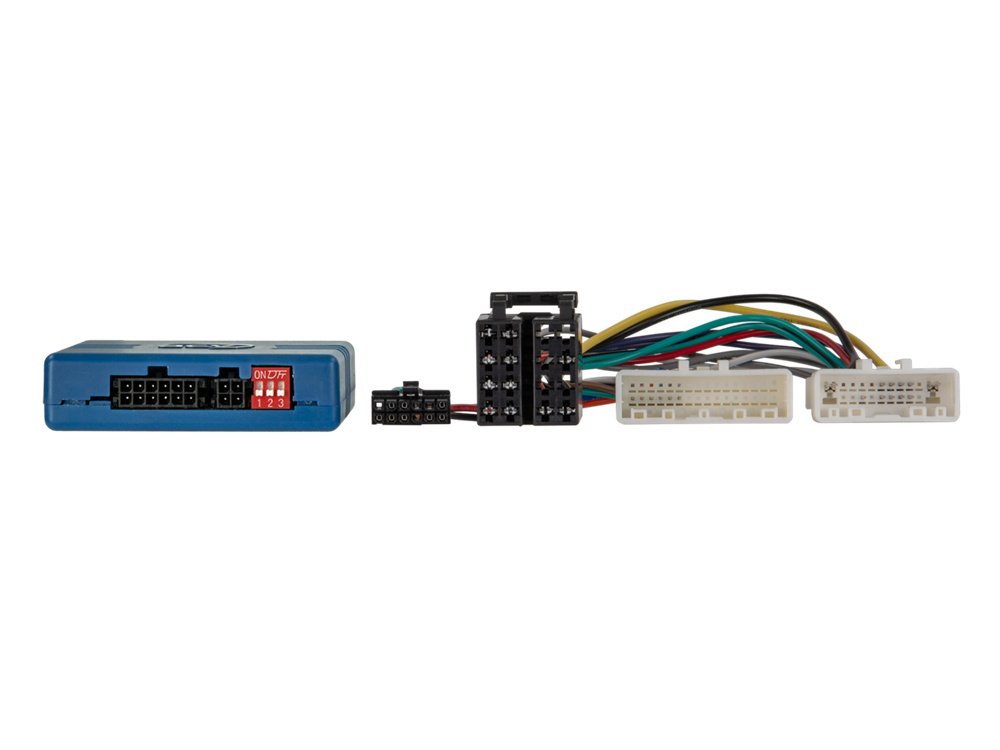

RAT INTERFACE TIL DACIA/FIAT/NISSAN/OPEL/RENAULT/SMART MED 20PIN-32PIN

Interface der muliggøre tilslutning af eftermarkedsradio til bilens originale ratbetjening.
Det gør det muligt at styre primær funktioner på radioen.

Passer til følgende modeller:
analog

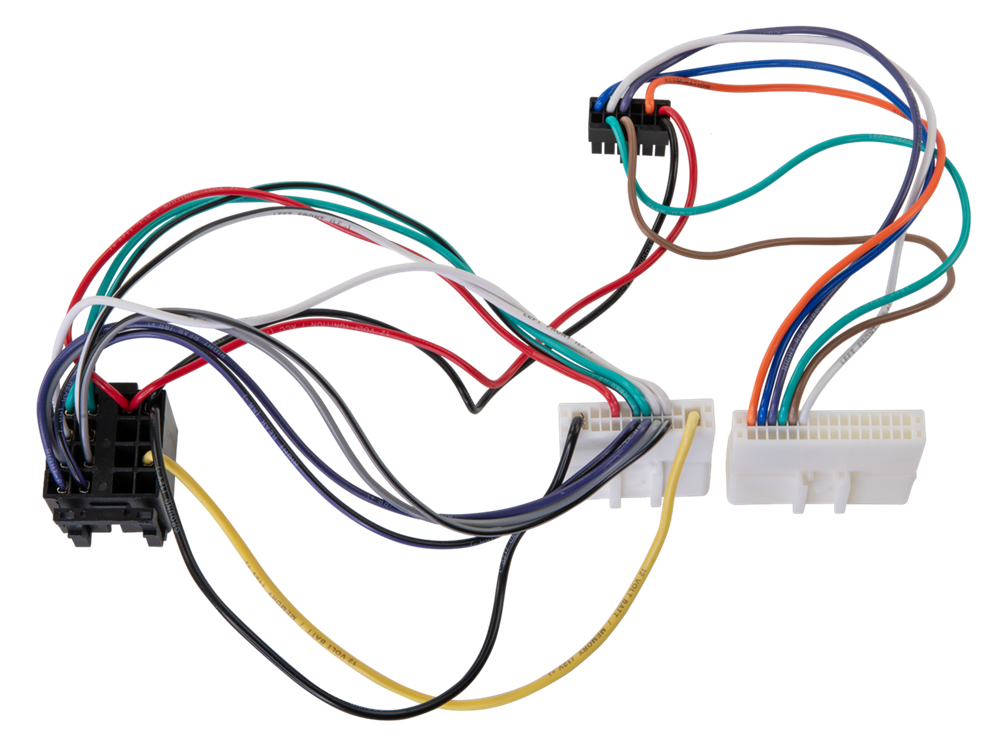

connector: 20 Pin / 32 Pin Nissan

check dip switches (look into the manual)

vehicles 2018> red +12V ignition supply clamp 15 fusebox fused > if necessary
vehicles 2018> interface red +12V ignition supply clamp 15 fusebox fused > if necessary

Vehicle application:

Dacia
Dacia Dokker (SD) 03/2017 - 11/2020*
Dacia Dokker Stepway (SD) 03/2017 - 11/2020*
Dacia Duster (SR) 01/2018 - 07/2021*
Dacia Lodgy (SD) 03/2017 - 01/2022*
Dacia Lodgy Stepway (SD) 03/2017 - 02/2022*
Dacia Logan MCV (SD) 11/2016 - 09/2020*
Dacia Logan MCV Stepway (SR) 05/2017 - 09/2020*
Dacia Sandero (SD) 11/2016 - 09/2020*
Dacia Sandero Stepway (SD) 11/2016 - 09/2020*

Fiat
Fiat Talento (ZAF 296) 07/2016 - 10/2021*/**

Nissan
Nissan NV300 (4/J4) 11/2016 - 06/2019*/**/***
Nissan NV300 (4/J4) 06/2019 - 09/2021*/**/***
Nissan NV300 (4/J4) 05/2021 - 09-2021*/**/***
Nissan NV400 (M) 08/2014- 07/2020*/**/***
Nissan NV400 (M) 07/2020 - 12/2021*/**/***
Nissan Primastar (4/J4) 09/2021 - 2024**/****

Opel
Opel Movano B (X62) 10/2013 - 09/2019*/**
Opel Movano B (X62) 10/2019 - 08/2021*/**
Opel Vivaro B (X82) 06/2014 - 01/2019*/**

Renault
Renault Captur (R) 06/2013 - 03/2017*
Renault Captur (R) 03/2017 - 12/2019*
Renault Express (RJK) 05/2021 - 2023****
Renault Kangoo Rapid (W) 05/2013 - 05/2021
Renault Kangoo Z.E. Rapid (W) 05/2013 - 06/2022
Renault Kangoo III (RJK) 05/2021 - 2023**
Renault Master III (M) 09/2014 - 08/2018**
Renault Master III Z.E. (M) 06/2018 - 06/2020**
Renault Master III (M) 10/2019 - 2024**
Renault Trafic III (L/JL) 09/2014 - 07/2019*/**
Renault Trafic III (L/JL) 09/2019 - 03/2022*/**
Renault Trafic III (L/JL) 05/2021-2024**/***
Renault Twingo (AH) 09/2014 - 04/2019*/**

Smart
Smart ForTwo (453) 11/2014 - 06/2019*

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

SWC

*vehicles with Visteon Anatel RO13-X07 OEM HU without CAN Bus
**vehicles with Browse 1-DIN OEM HU with 2 x black rotary knob
**vehicles with open dash
***vehicles with 1-DIN OEM HU
****vehicles with Browse Visteon 1-DIN OEM HU
Der skal bruges et af nedennævnte kabler
