Varenr.: 42a-1180-004-NAV
På lager hos os
Interface der muliggøre tilslutning af eftermarkedsradio til bilens originale ratbetjening.
Det gør det muligt at styre primær funktioner på radioen.

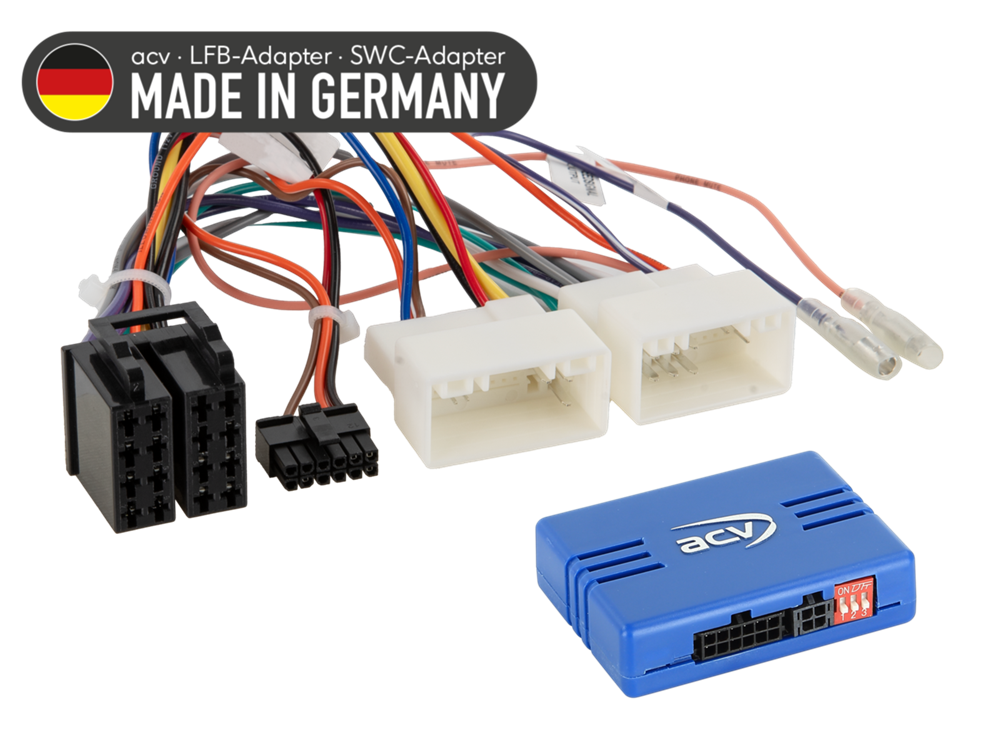

Stalk Adapter Hyundai / Kia
Keep the original steering wheel remote control functions when replacing the factory radio with a retrofit HU.
Depending on the vehicle equipment as well as the range of functions and software of the retrofit HU, individual operating functions may be omitted or replaced by other functions.
Compare the pictured harness connectors with the connectors in your car and make sure that they fit optically and technically.
Check if one of the listed OEM head units were installed originally.
Also check vehicle functionality, vehicle settings and SWC functionality before final assembly.
Note:
analog
connector: 24 Pin / 18 Pin Hyundai Sat Nav
check dip switches for retrofit HU
vehicles without OEM Sat Nav
vehicles without OEM amplified system
vehicles with different Pin assignments and vehicles:
check the Pin assignment before connecting to avoid faults or defects on the vehicle or the retrofit device
diagnostic LED:
blue constant > Interface active +12V ignition power supply present
red > steering wheel remote control button function recognised
Vehicle application:
Hyundai
Hyundai Azera 2011 - 2017
Hyundai Elantra 2011 - 2015
Hyundai H350 06/2015 -12/2019
Hyundai i10 (IA) 11/2013 - 12/2016
Hyundai i10 (IA) 01/2017 - 12/2019
Hyundai i20 (GB) 12/2014 - 06/2018
Hyundai i20 (GB) 07/2018 -09/2020
Hyundai i30 (GD/GDH) 03/2012 - 05/2015
Hyundai i30 (GD/GDH) 05/2015 - 05/2017
Hyundai i40 (VF) 09/2011 - 05/2015
Hyundai i40 (VF) 05/2015 - 08/2018
Hyundai i40 (VF) 10/2018 - 07/2019
Hyundai i45 2009 - 2014
Hyundai i800 2007 - 2021
Hyundai ix35 (EL) 03/2010 - 09/2013
Hyundai ix35 (EL) 09/2013 - 07/2015
Hyundai ix45 2013 - 2018*
Hyundai Santa-Fe (DM) 10/2012 - 11/2015
Hyundai Santa-Fe (DM) 12/2015 - 08/2018
Hyundai Sonata (YF) 2009 - 2014
Hyundai Tucson (TL) 04/2010 - 06/2015
Kia
Kia Cee'd (JD) 06/2012 - 09/2015
Kia Forte 2012 - 2016
Kia Optima (TF) 06/2012 - 10/2013
Kia Optima (TF) 10/2013 - 10/2015
Kia Picanto (TA) 09/2011 - 04/2015
Kia Picanto (TA) 04/2015 - 03/2017
Kia Pro-Cee'd (JD) 07/2013 - 09/2015
Kia Rio (UB) 09/2011 - 01/2015
Kia Soul (AM) 09/2011 - 03/2014
Kia Soul (PS) 03/2014 - 11/2016
Kia Sorento (XM) 10/2012 - 03/2015
Kia Sportage (SL) 08/2010 - 03/2014
Kia Sportage (SL) 03/2014 - 01/2016
Following signals are provided:
Reimported vehicles or vehicles with different software may be incompatible in functions.
SWC
*vehicles with Continental OEM Sat Nav
Der skal bruges et af nedennævnte kabler
