Varenr.: CTSMC017.2
På lager hos os
Download manual

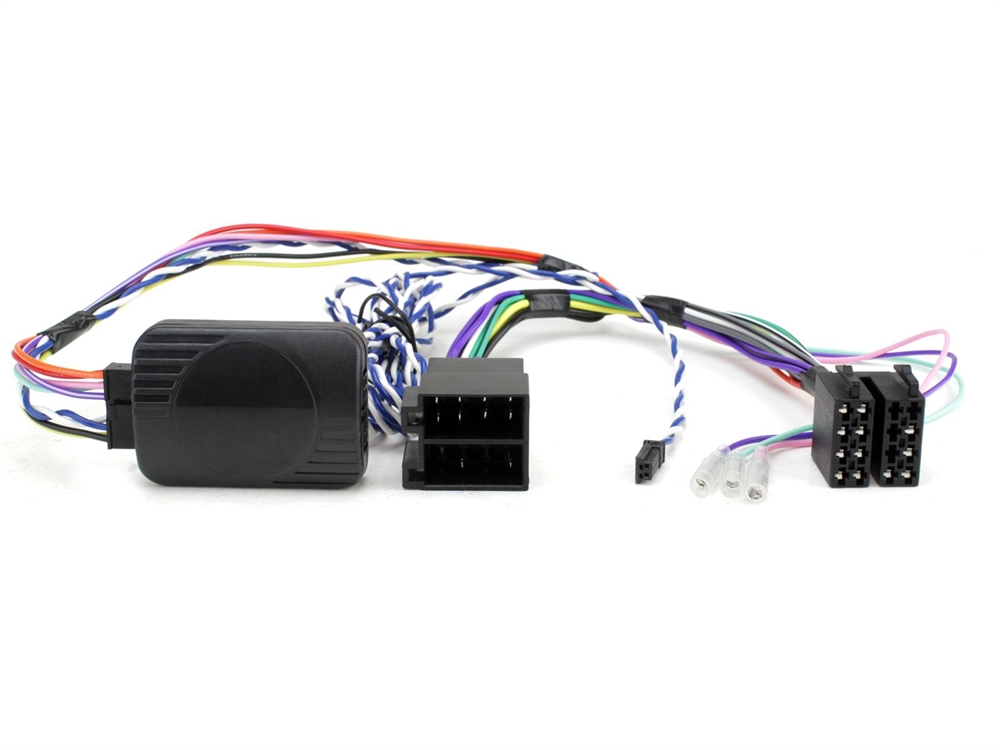

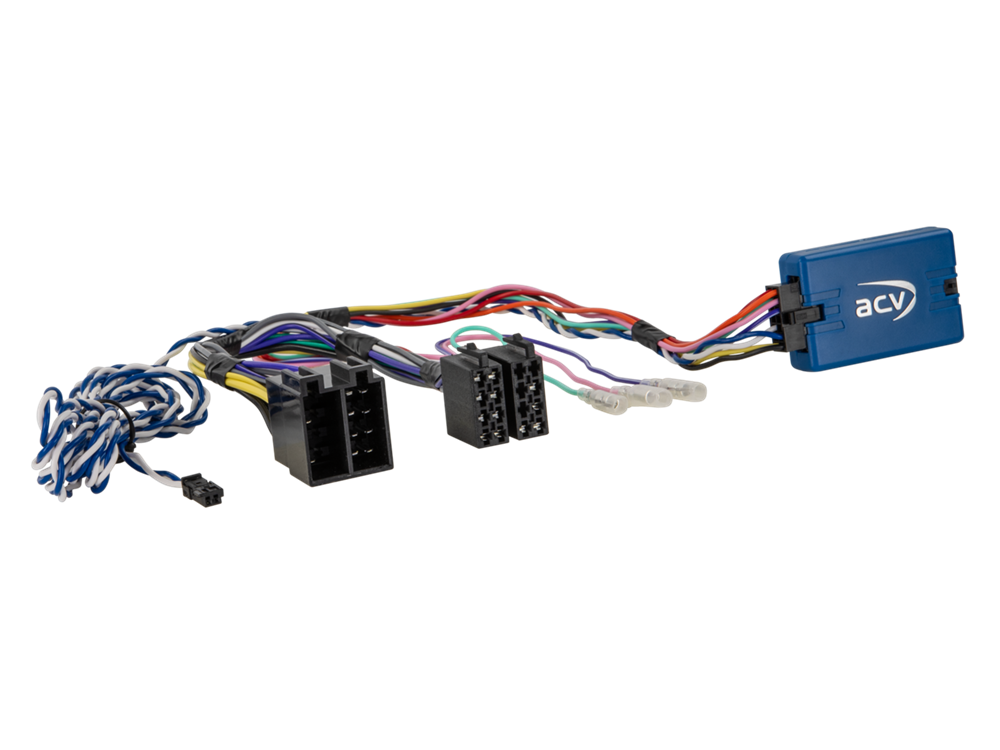

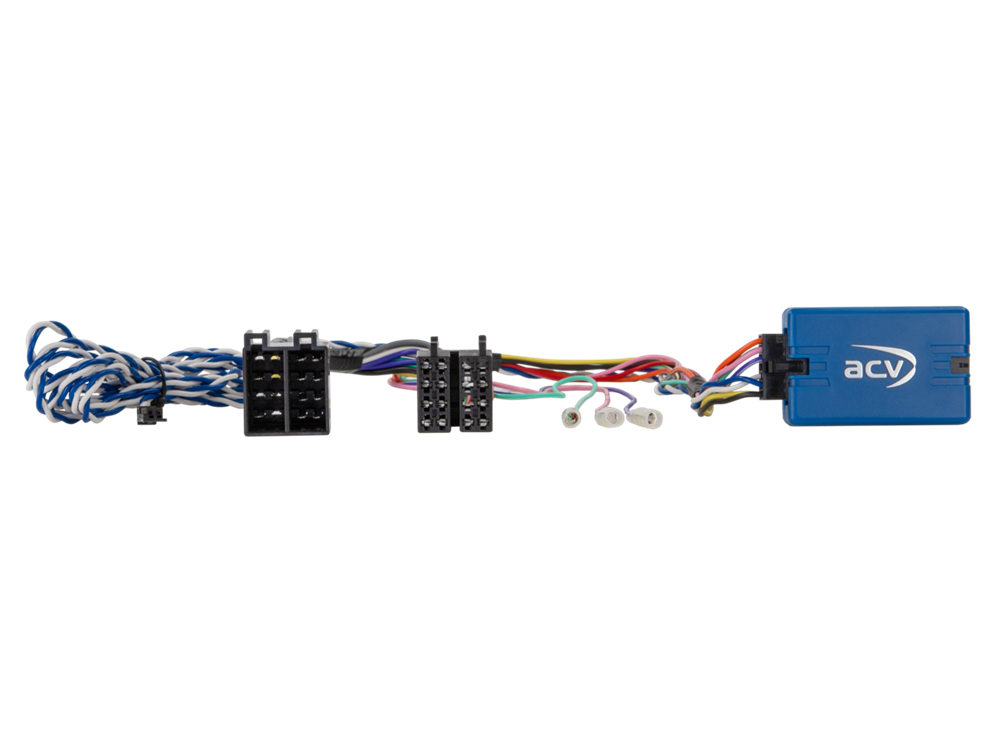

Interface der muliggøre tilslutning af eftermarkedsradio til bilens originale ratbetjening.
Det gør det muligt at styre primær funktioner på radioen.
Note:
CAN Bus
connector: ISO
connector: 2 Pin CAN Bus > interior CAN Bus distributor
vehicles with open dash
vehicles with OEM HU coded
vehicles without OEM HU coded > code vehicle to Audio 20 OEM HU
CAN Bus connection:
interior CAN Bus distributor footwell of the vehicle
CAN Bus blue/CAN High <> white/CAN Low alternative > climatronic twisted red/brown CAN High <> brown CAN LOW
reverse signal not always supported:
reverse gear signal driverside +12V cable white/blue alternative
vehicles with OEM HU and ISO connector:
SWC Mercedes/Smart/VW different vehicles ISO > item: 42smc002
Vehicle application:
Mercedes Sprinter (W906) 04/2006 - 08/2013
Mercedes Sprinter (W906) 08/2013 - 05/2018
Mercedes Vito/Viano (W639) 04/2006 - 08/2010
Mercedes Vito/Viano (W639) 09/2010 - 03/2014
VW
VW Crafter I (2EC/2EK/2F) 03/2006 - 07/2011
VW Crafter I (2EC/2EK/2F) 07/2011 - 11/2016
Following signals are provided:
reimported vehicles or vehicles with different software may be incompatible in functions.
red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse signal
green: GND park brake signal
load capacity total outputs: 100 mA max.
current requirement more than 100 mA:
1 relay coil resistance 75 Ohm min.
2 relays coil resistance 150 Ohm min.
SWC
*in case of interface malfunction encode vehicle to Audio 15 OEM HU if possible
Der skal bruges et af nedennævnte kabler
