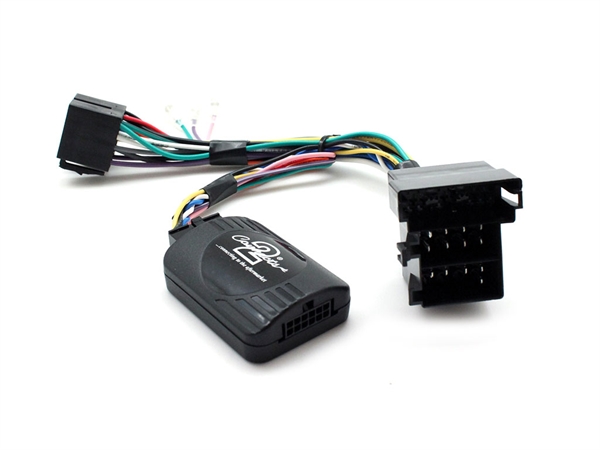

RAT INTERFACE TIL ALFA/FIAT/FORD/CITROEN/PEUGEOT/OPEL

Interface der muliggøre tilslutning af eftermarkedsradio til bilens originale ratbetjening.
Det gør det muligt at styre primær funktioner på radioen.

Passer til følgende modeller:
Note:

CAN Bus

connector: ISO / Mini ISO

vehicles with Blaupunkt / Delphi / VDO OEM HU
vehicles with CAN Bus in ISO Power connector

vehicles without analoge SWC in Mini ISO connector C-2
vehicles without Visteon / Daiichi / UConnect OEM HU
vehicles without Magneti Marelli OEM Sat Nav

vehicles with Blue&Me >Blue&Me module must remain installed

vehicles with OEM amplified system:
Active system adapter Alfa Romeo/Lancia ISO>ISO > item: 13-1001-50
Active system adapter different vehicles ISO>ISO > item: 13-1190-50

blue: +12V Amp remote

Vehicle application:

Alfa Romeo
Alfa Romeo Giulietta (940) 05/2010 - 10/2013**
Alfa Romeo MiTo (955) 09/2008 - 10/2013***

Citroen
Citroen Jumper (250) 11/2011 - 05/2014*
Citroen Nemo (A.) 08/2008 - 12/2015
Citroen Relay (250) 2011 - 2014

Fiat
Fiat 500 (ZAF 312) 10/2007 - 07/2015
Fiat Doblo (ZAF 263) 02/2010 - 01/2015
Fiat Ducato (ZAF 250) 06/2011 - 05/2014*
Fiat Fiorino (ZAF 225) 04/2008 - 07/2016
Fiat Grande Punto (ZAF 199) 10/2005 - 05/2010
Fiat Idea (ZAF 350) 11/2005 - 01/2008
Fiat Punto (ZAF 199) 05/2010 - 12/2010
Fiat Punto (ZAF 199) 01/2011 - 01/2012
Fiat Punto Evo (ZAF 199) 09/2009 - 01/2011
Fiat Qubo (ZAF 225) 09/2008 - 07/2016

Ford Ka (RU8) 02/2009 - 05/2017

Opel
Opel Combo D (Combo D) 01/2012 - 08/2018

Peugeot
Peugeot Bipper (A) 12/2007 - 12/2015
Peugeot Boxer (Y) 07/2011 - 05/2014*

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse signal
pink: speed pulse signal
green: GND park brake signal

load capacity total outputs: 100 mA max.

SWC

*vehicles with 8 SWC buttons / functions
*vehicles with Delphi 2-DIN OEM HU piano black with central control knob
**vehicles with Bosch OEM HU
***vehicles with Blaupunkt OEM HU

CTSFO009, CTSFA004 og CTSAR004 er identiske


Der skal bruges et af nedennævnte kabler
