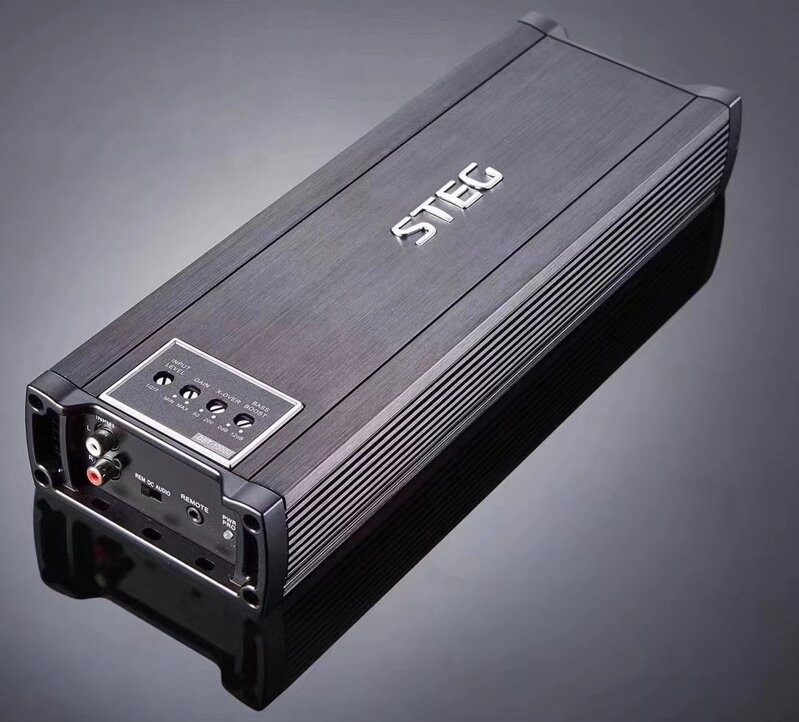

STEG DST 1000II CLASS-D MINI MONO FORSTÆRKER

Varenr.: 112042178
  • PRIS ER PR. Stk
    Pris ved køb af 1 Stk,3.949,00  DKK
På lager hos os

Download manual
RMS Power Rating at 14.4V
1x 1000W (2Ω)
1x 500W (4Ω)
Class D Mosfet amplifier
DIMENSIONS:
​324 x 110 x 50 mm
Variable Subonic / Lowpass / Phase shift / 12dB Bass Boost
High level inputs with auto turn on
Power and protection indicators
Dual amplifiers master/slave bridge capability
Incl. remote level control
In compliance with absolute quality criteria, the DST series idea materializes. Total harmony achieved with the obsessive attention to every detail. Even the smallest detail is designed and built to best satisfy its function.
FINE MATERIALS
Structure completely in aluminum, worked and finely treated. The printed circuit board is constructed with materials that meet military standards and professional standards, reinforced with gilded copper bars to handle the very high currents involved.
COMPONENTS
High quality and precision, mosfets selected one by one, solid terminal blocks made of solid material that accept large cables and passive components with very low tolerance.
DESIGN
Forms designed by function, elegant and sophisticated lines. Designed to dispose of heat quickly.
SOUNDS
Final stage and preamplifier as a synthesis of STEG know-how. Exclusive circuits like GR.I.P.S. (which eliminates all external disturbances), Straigth-In (reduced signal path) and the new audiophile drivers entirely in discrete components, the heart of the Bel Suono DSTseries.
POWER
DSTseries, the name of these new electronics. represents the commitment taken by STEG in creating amplifiers designed, in addition to sound, for competitions. The power available, the high current and the impressive dynamics are among the features guaranteed by a project that has spared nothing. The massive use of very powerful semiconductors, the distribution of power on various transformers in parallel and the use of an extremely effective dissipating system, guarantee all the energy and reliability necessary to continuously pilot any type of load, up to 2 ohm.
FUNCTIONALITY
The numerous functions present on the entrance panel make up the SMMS system (STEG MULTIWAY MODULAR SYSTEM). Two separate and independent LP and HP filters - High-pass, Low-pass, Flat - 12dB Slope Configurations -. SMMS allows the creation of sophisticated multi-way systems (3,4,5,6 and more, depending on the installation needs), avoiding the use of expensive and noisy external cross-over that heavily degrade the sound.
