Varenr.: 42a-1130-002
På lager hos vores leverandør

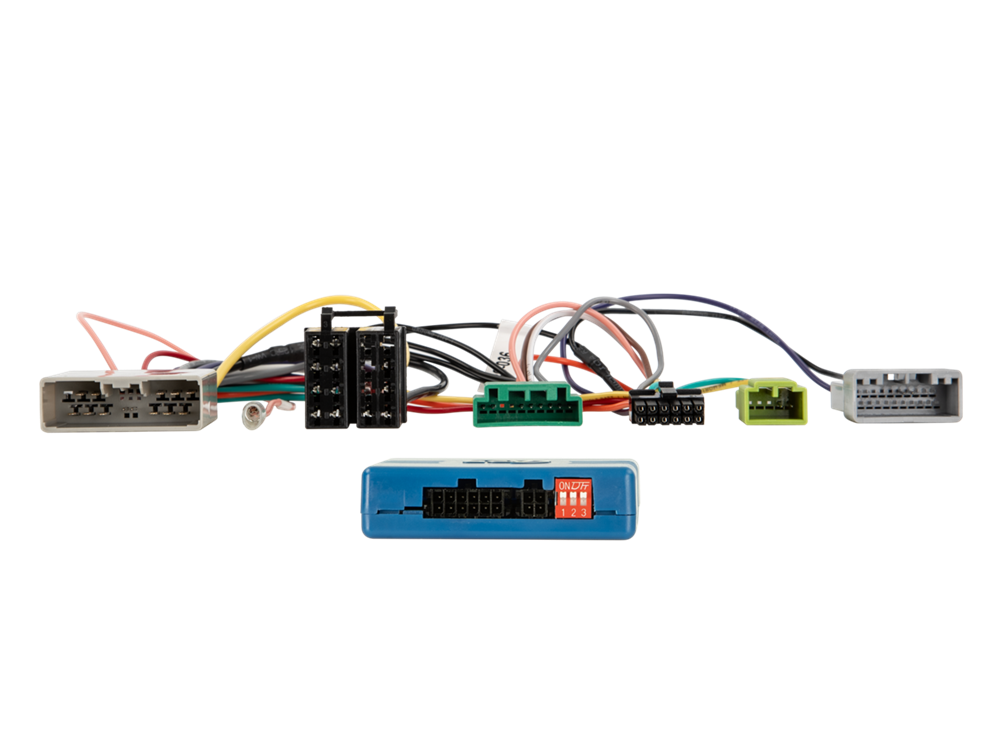

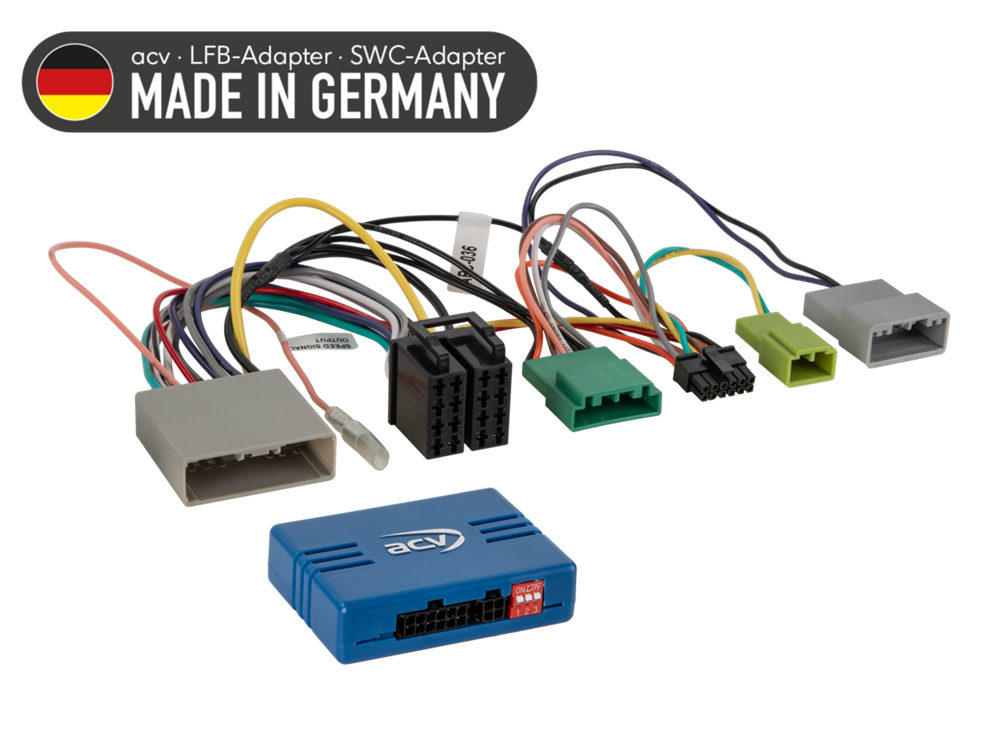

Interface der muliggøre tilslutning af eftermarkedsradio til bilens originale ratbetjening.
Det gør det muligt at styre primær funktioner på radioen.
Note:
CAN Bus
analog SWC
connector: 17 Pin / 20 Pin Honda
connector: 5 Pin / 10 Pin display
check dip switches
vehicles with vehicles with climate control on the top display
vehicles without OEM Sat Nav with colour monitor
vehicles without Hybrid Drive
time setting supported:
setup clock: press Mode for 5 seconds
setup minute/hour: Vol up
setup time: channel +/channel -
setup quit: press Mode briefly
after installation, the top display shows Honda Civic lettering, temperature and time
diagnostic LED:
blue constant > Interface active +12V ignition power supply present
red > steering wheel remote control button function recognised
Vehicle application:
Honda Civic (FK1) 09/2005 - 12/2008
Honda Civic (FK1) 01/2009 - 12/2010
Honda Civic (FN2) 03/2007 - 12/2008
Honda Civic (FN2) 01/2009 - 12/2011
The following signals are provided:
Reimported vehicles or vehicles with different software may be incompatible in functions.
SWC
date/time setting supported
Der skal bruges et af nedennævnte kabler
