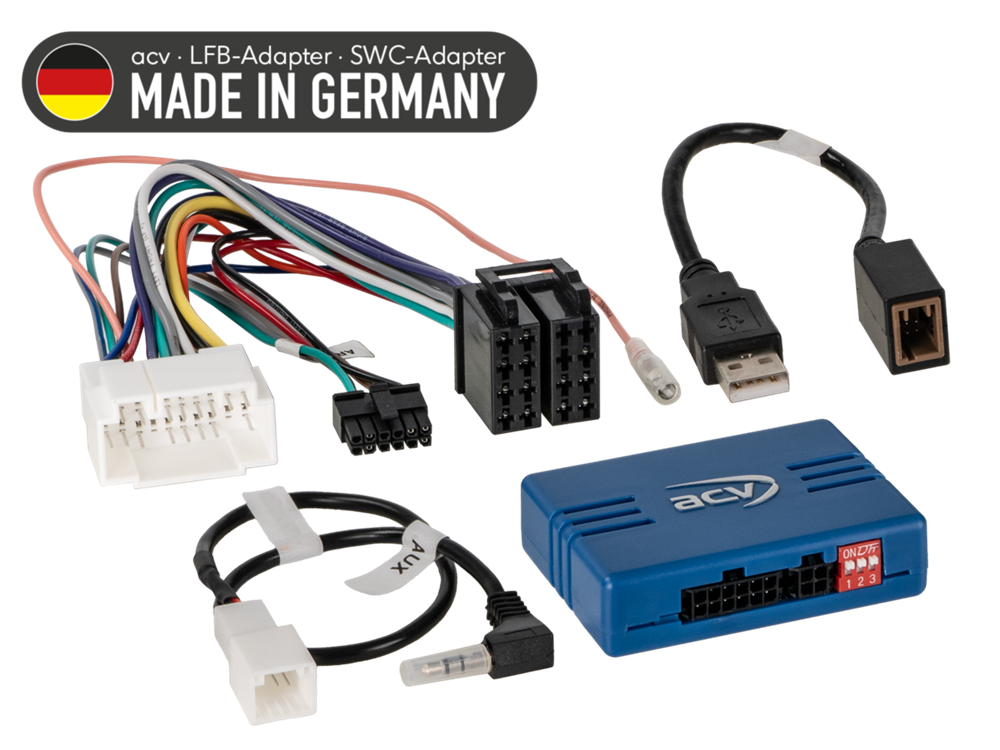

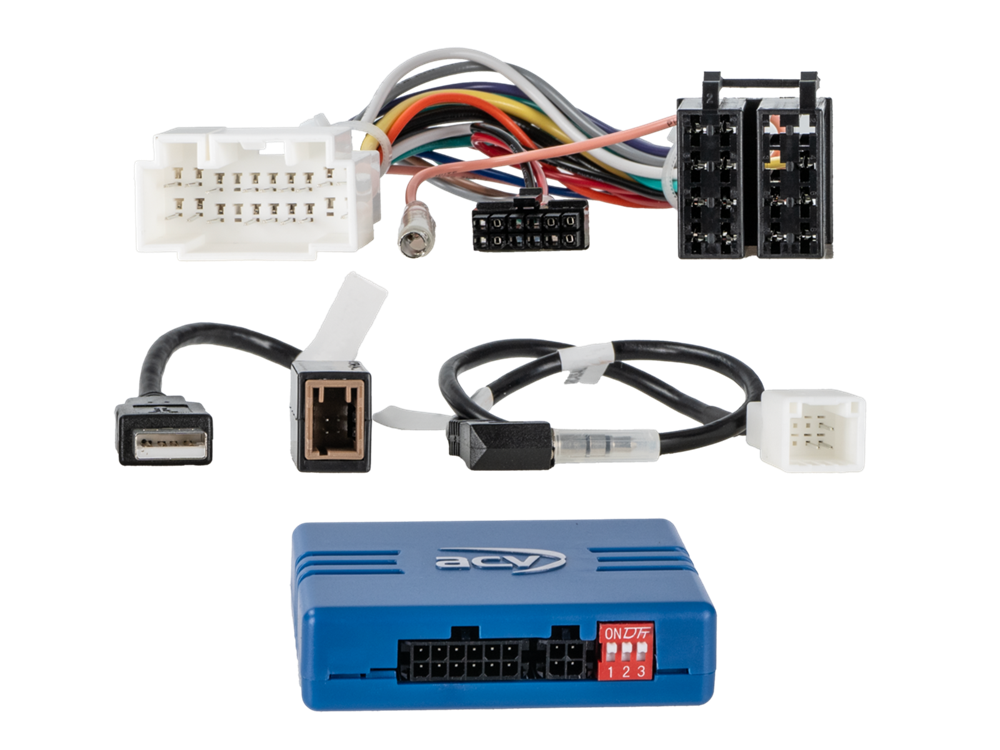

RAT INTERFACE TIL SUZUKI MED AUX OG USB BIBEHOLDELSE

Interface der muliggøre tilslutning af eftermarkedsradio til bilens originale ratbetjening.
Det gør det muligt at styre primær funktioner på radioen.

Passer til følgende modeller:
Note:

analog

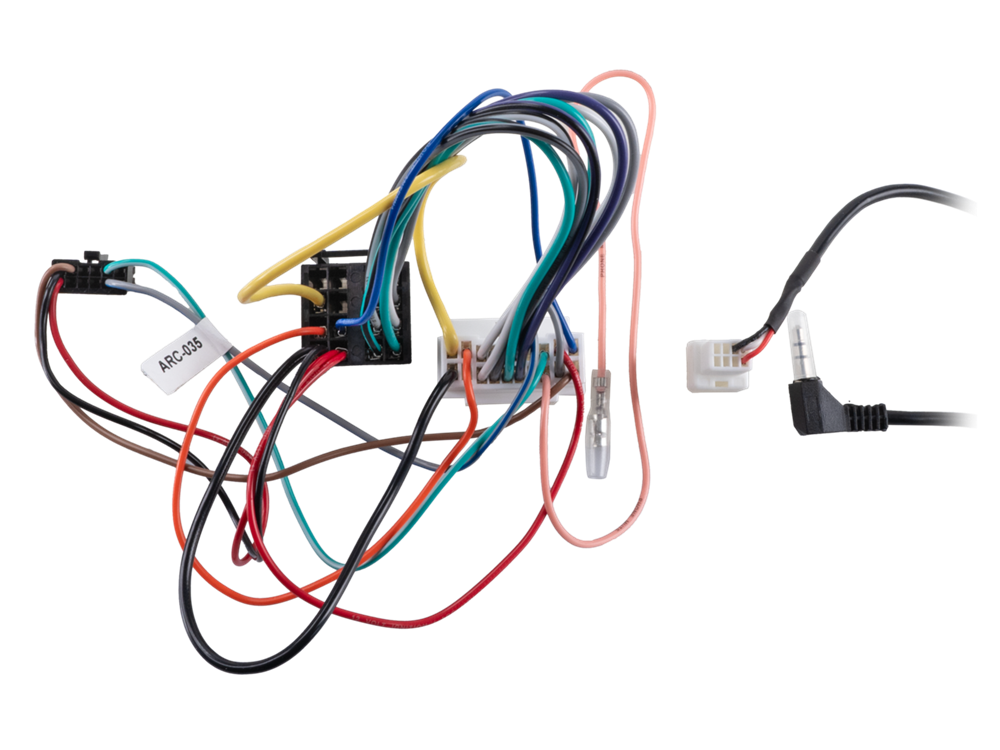

connector: 20 Pin Suzuki
connector: OEM AUX > 3,5 mm Jack
connector: OEM USB > USB-A

check dip switches for retrofit HU

diagnostic LED:
blue constant > Interface active +12V ignition power supply present
red > steering wheel remote control button function recognised

Vehicle application:

Suzuki Ertiga 2012 - 2015
Suzuki Grand Vitara (JT) 01/2013 - 08/2015
Suzuki Ignis (MF) 01/2017 - 04/2021
Suzuki Ignis (MF) 04/2021 - 08/2024
Suzuki Jimny (GJ) 10/2018 - 09/2020
Suzuki Jimny NFZ (GJ) 04/2021 - 08/2024
Suzuki Swift (FZ/NZ) 09/2010 - 10/2013
Suzuki Swift (FZ/NZ) 10/2013 - 04/2017
Suzuki Swift (AZ) 04/2017 - 03/2024
Suzuki SX4 S-Cross (JY) 10/2013 - 10/2016
Suzuki Vitara (LY) 04/2015 - 08/2018

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

SWC
Der skal bruges et af nedennævnte kabler
